Enerdis C.A 2150-E - Page 33

33

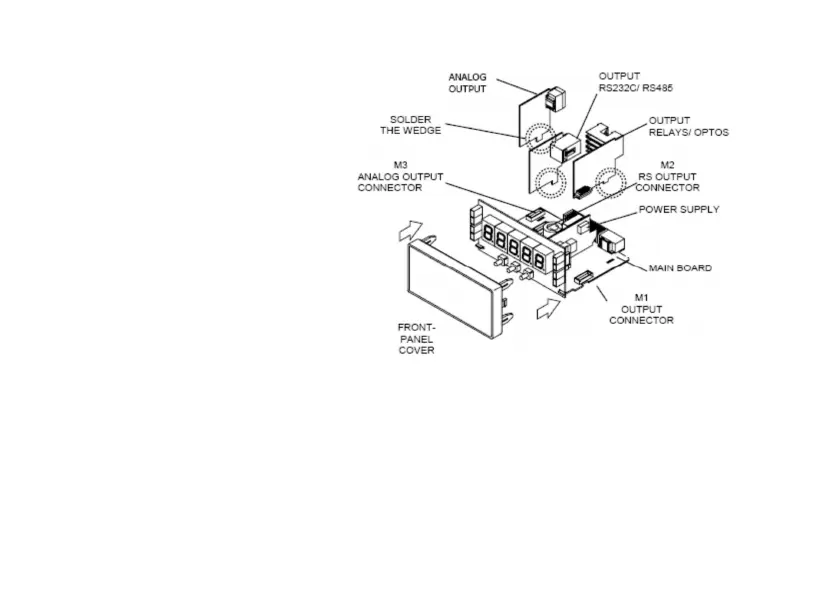

The following figure shows the location of
the different outputs options.
The
2 RELAYS, 4 RELAYS, 4NPN
options are alternative and only one of
them can be placed into the connector
M1.
The
RS232 and RS485
options are also
alternative and only one of them can be
placed into the connector M2
The
4-20mA or 0-10V
option is placed
into the connector M3.
Up to three output options can be
present at the same time and operate
simultaneously :
1 relays board + 1 communication board
+ 1 analog board
