Connecting the auto stop switch
NB Only applies to rope windlasses.

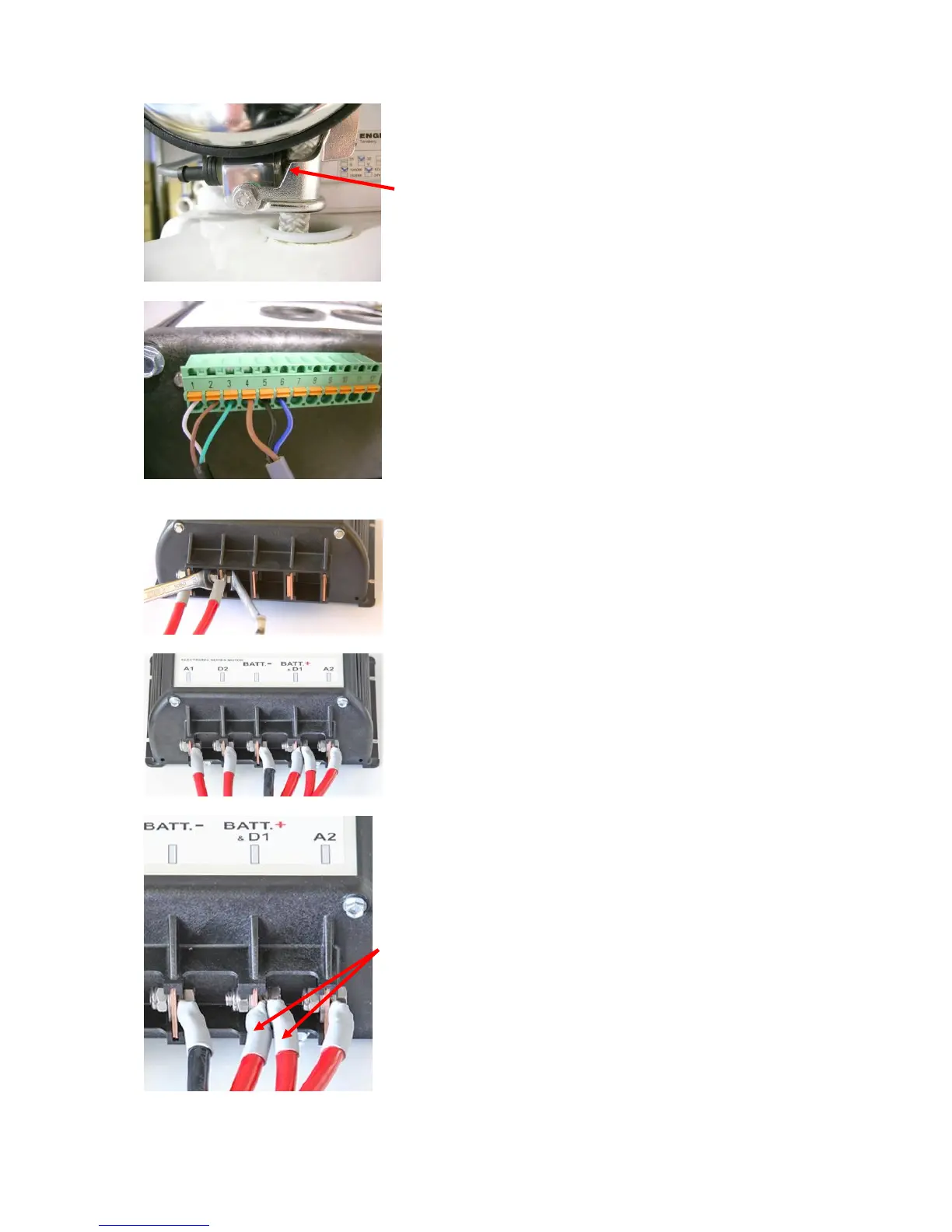

Auto stop switch
Connect the cables from the auto stop switch in the same
way as described above.
Connect the cables as follows:
4: Brown (BN) = +V
5: Black (BK) = Signal
6: Blue (BU) = Gnd
Connecting the motor and battery cables
It is best to connect the cables from the battery and
motor to the electronic unit first, before fastening the
unit upright against the bulkhead with the cables bent
down over it.
Start by connecting the motor cable marked (A1) to the
left. NB The lock nuts are on the left-hand side.
Then connect motor cable (D2) and then the black (-)
battery cable. Then connect the red (+) battery cable to
(D1) from the motor. Finally, connect (A2) from the
motor. (If necessary, remove in the reverse order). It is
best to use a pair of pliers, as shown in the picture.
The picture shows the correct connection and the
direction of the bolts and cables.
NB The cable shoes must be connected directly to the
copper bars without washers or anything else between.
Use flat washers between the bolt heads and the top
sides of the cable shoes, and between the plastic side of
the end panel and the locking nuts.
The M8 x 25 mm bolt is for the positive battery cable.
Please note that on this terminal, there are two cable
shoes that have to be connected.
NB Connect the cable shoes as shown in the picture to
ensure best possible contact.
NB When the cable length (one way) between the battery
and electronic unit is up to 5 m, use 35 mm
2
cable. For
longer distances, use 50 mm
2
cable.
