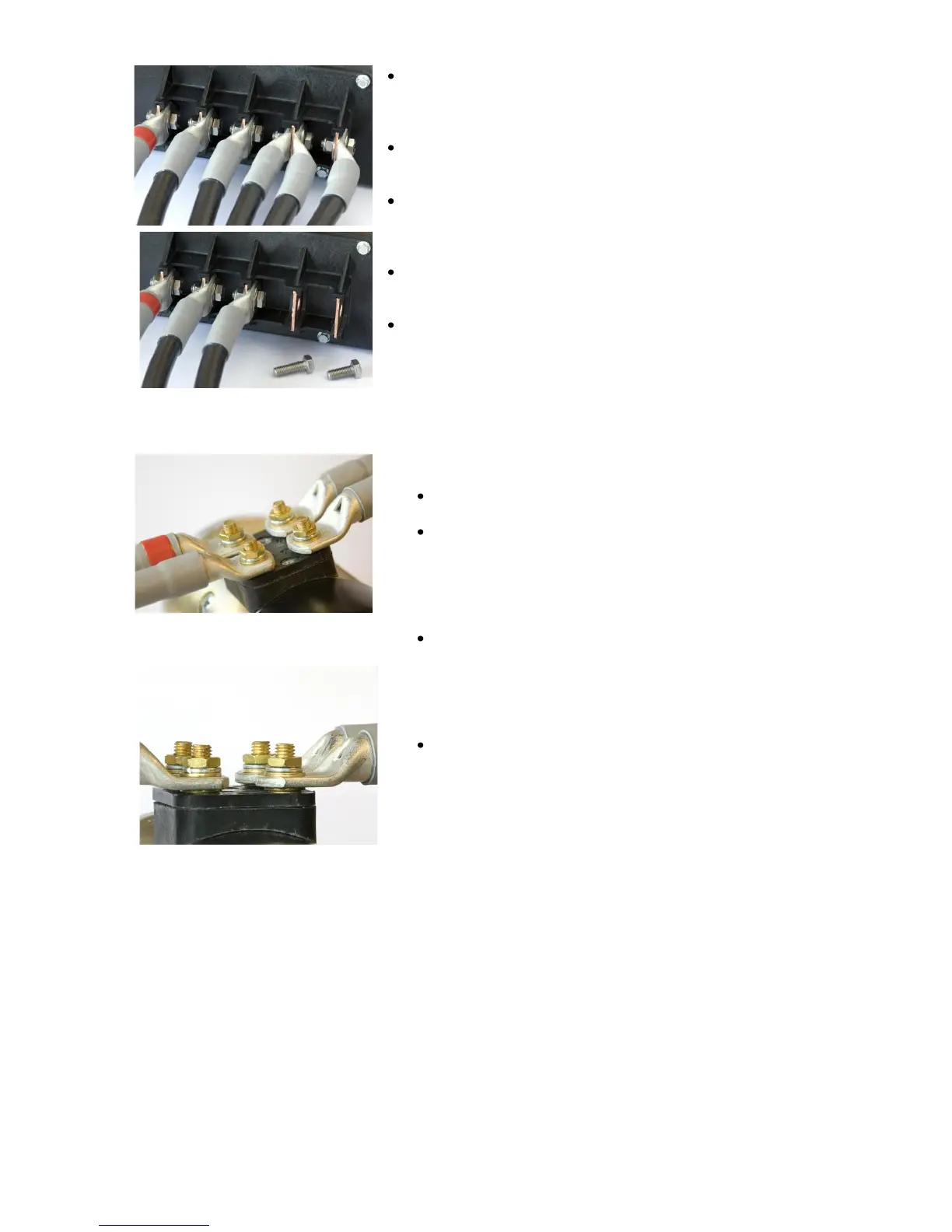

The mounting bolts are not active current leaders and
their only purpose is to assure a tight connection
between the cable-lugs and bars.
Shorter and thicker cables will give less voltage drop and
thus better performance.
Please notice how the cable-lugs on copper-bar number 4
is mounted, (turned towards each other to maximize
space and ease of montage).
Cable-lug for bar number 5 is turned the opposite
direction compared with number 1, 2 og 3.
If ever needed to dismount the cables, start from the
right side and reverse the above procedure.
Motor terminal connections
The terminal bolts are active current leaders.
The pictures show correct connected cables on the
motor terminals. Please note that cable-lug is
mounted to the terminal with brass washers on both
sides of the cable-lug, then another washer and nut
on top of the cable-lug.
Two types of terminals exist;
Correct torque is;
M8 Brass/copper: 10 Nm
M10 Brass/copper: 15 Nm
Finally, mount isolating rubber caps or plastic cap
nuts. (Not shown on picture).
