19
IMPORTANT
The anchor winch shall not be installed in areas which may contain
flammable or explosive gasses.
In cases where this is not possible, the winch can be built into closed
space, but with ventilation to open air.
The MCU must be installed in dry place in such in a way that no cables
with current may be short circuited.
Battery connection
WARNING!
Check that none of the cables is short-circuited or damaged before
connecting the battery.
Check that all power cables and connection points are tightly secured –
post-tighten if necessary.
NEVER use washers between cable shoes and connection points in places
where high voltage currents pass.
A fuse and main power switch must be fitted to the positive battery cable, as close to
the battery as possible. (See the connection diagram).
The windlass must always be connected to the start battery.
Remember to turn off the main power switch when the windlass is not in use.
Main power switch

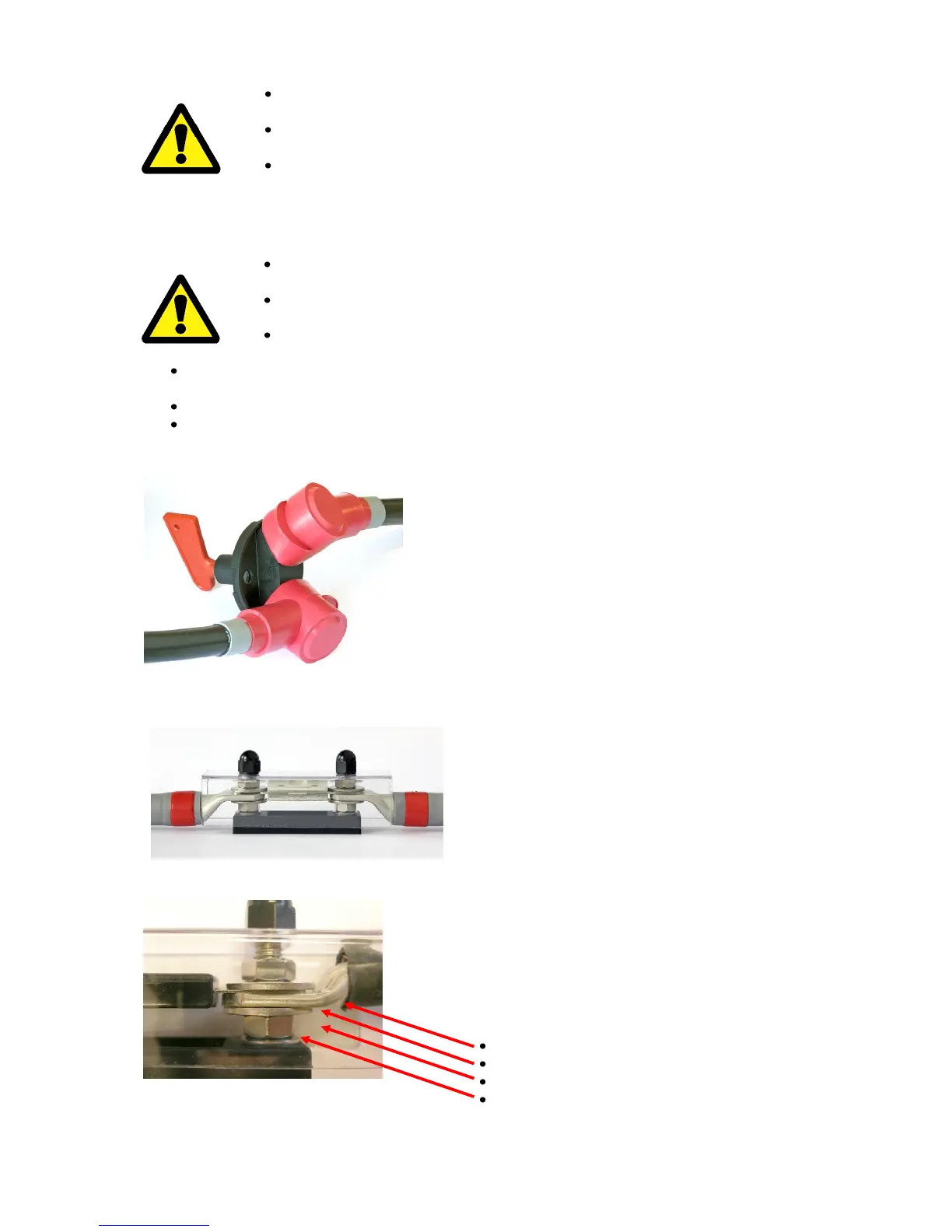

The picture shows the battery cable correctly
connected to the main power switch, with
rubber caps insulating the connection points.
Fuse and fuse holder
The fuse holder and fuse are to be fitted to the
(+) cable between the battery and the
electronic control unit of the windlass. See the
electrical connection diagram.
This picture shows correct connection of the
battery cable to the fuse-holder terminal.
NB The fuse must be fitted directly above the
cable shoe. There must NOT be any washers or
nuts between them.
Fit washers on both sides. Recommended
torque: 13–15 NM. Fit plastic caps on the top of
the cover.
Washer
Fuse
Cable shoe
Washer
