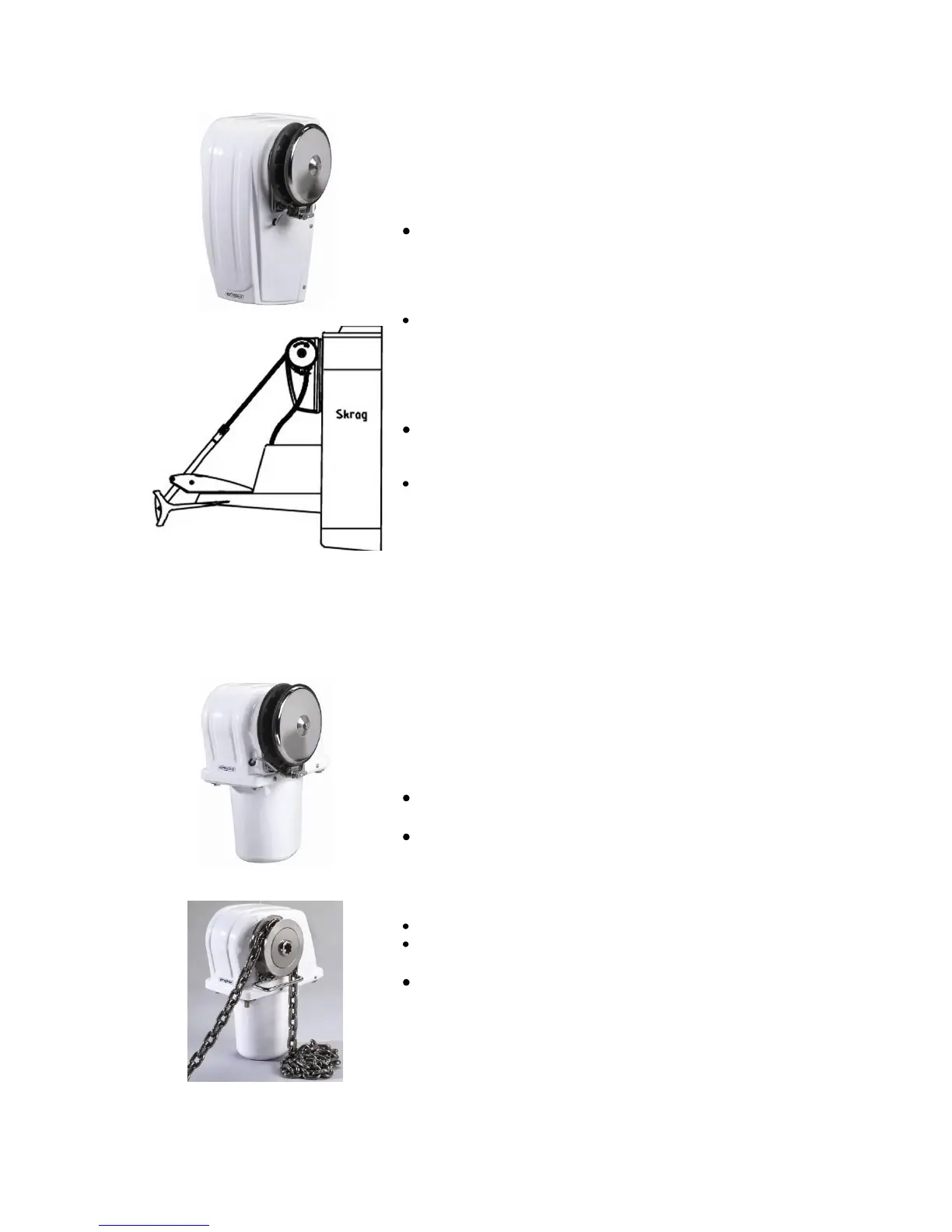

The Maxi 31 is designed for fitting outside on the stern or
inside on the stern side of a vertical bulkhead. The Maxi 31
has the line wheel on the right-hand side of the windlass,
seen from behind.
NB Make sure to fit the windlass correctly in relation to
the direction of rotation of the line wheel. (See sketch)
Position the windlass as high as possible on the stern.
Draw around the windlass. Use the enclosed drilling
template to mark the screw holes on the supporting
surface. Use bolts to attach the windlass. If necessary,
reinforce the inside of the hull with a panel.
If the surface on which the windlass is to be fitted is not
even so that the entire windlass rests against the
hull/supporting surface, the surface must be evened
out using an intermediate layer to prevent damage to
the hull and/or the windlass when the fixing bolts are
tightened.
Drill a hole for the cables and run these through the
hull. Use Sikaflex or similar to seal the hole for the
cables.
Run the rope via the line wheel on the windlass, down
through the rope/chain guide and under the line wheel.
Use the windlass to wind it up.
NB We recommend using an adapted container made of
plastic or other weather-resistant material beneath the
windlass to ensure that the rope is gathered up
efficiently.
The Maxi 32 is designed for fitting outside on a rope box or
outside/inside on a horizontal surface. The Maxi 32 has the
line wheel on the right-hand side of the windlass, seen from
behind.
NB Make sure to fit the windlass correctly in relation to
the direction of rotation of the line wheel. (See sketch)
Remove the four 8 mm fixing bolts from the bottom of
the windlass.
Position the enclosed template correctly, so that the line
wheel is on the correct side. Mark the position of the
holes for the fixing bolts, the hole for the part of the
winch that is to pass through the deck, and the opening
for the rope.
Align the winch and the roller to each other.
Then use four of the enclosed bolts to secure the
windlass firmly in position.
Fit the windlass so that there is at least 50 cm of free
height from the underside of the line wheel to the
bottom of the well where the rope or chain is to lie. The
area where the rope or chain is to be stored should
measure at least 40 cm x 40 cm.
NB This space is normally sufficient for 50 m x 16 mm
rope or 30 m chain.
