Engbo MAXI 40 - Fitting Maxi 33

ENGBO AS – et selskap i Engbo-gruppen
BESØKSADRESSE: Wirgenesvei 7, 3157 Barkåker POSTADR: Postboks 2288 Postterminalen, 3103 Tønsberg
E-MAIL: support@engbo.no WEB: www.engbo.no TLF: +47 33 00 31 50 FAKS: +47 33 00 31 60
25
Fitting Maxi 33
The Maxi 33 is designed for horizontal installation on the
fore or aft deck.
NB Make sure to fit the windlass correctly in relation to
the direction of rotation of the line wheel.
Start by locating the correct position for the windlass,
so that the direction of the chain is in line with the
anchor bracket. Then mark the centre of the windlass.
In most cases, it is simplest to use the windlass fixing
plate (see pos. 65 on the drawing on page 27) as a
template. Place the fixing plate on the boat and mark
the screw holes, the centre hole for the gear, and the
run-through hole for the chain.
Remember to round off the edge of the run-through
hole for the chain so that the chain does not catch on
sharp edges.
To ensure the chain does not come into conflict with
the motor on the inside, the gear should be mounted so
that the motor points in a different direction than the
run-through hole.
Then run the chain around the line wheel and down into
the hole.

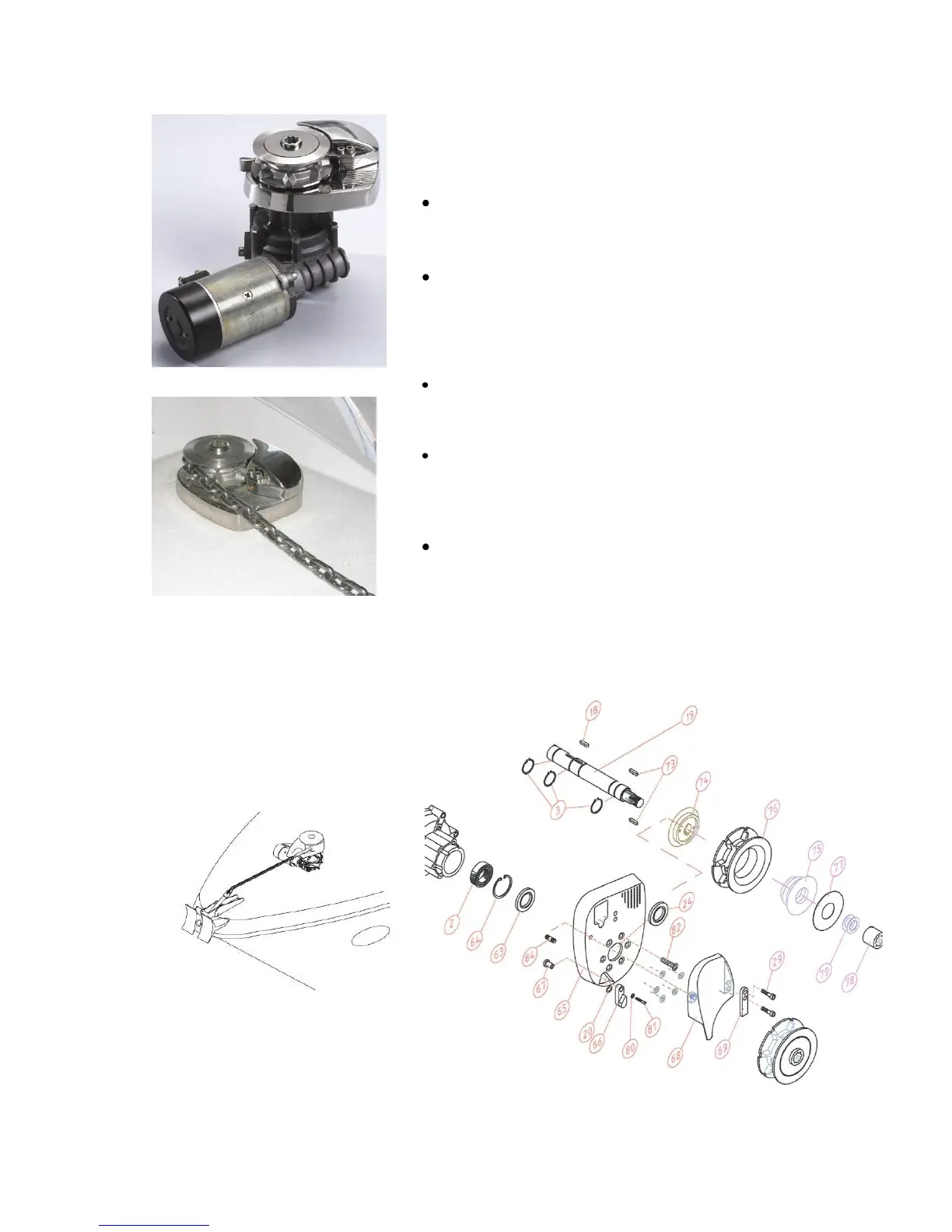

Drawing – Maxi 33 Line wheel, axle and fixing plate.
