94

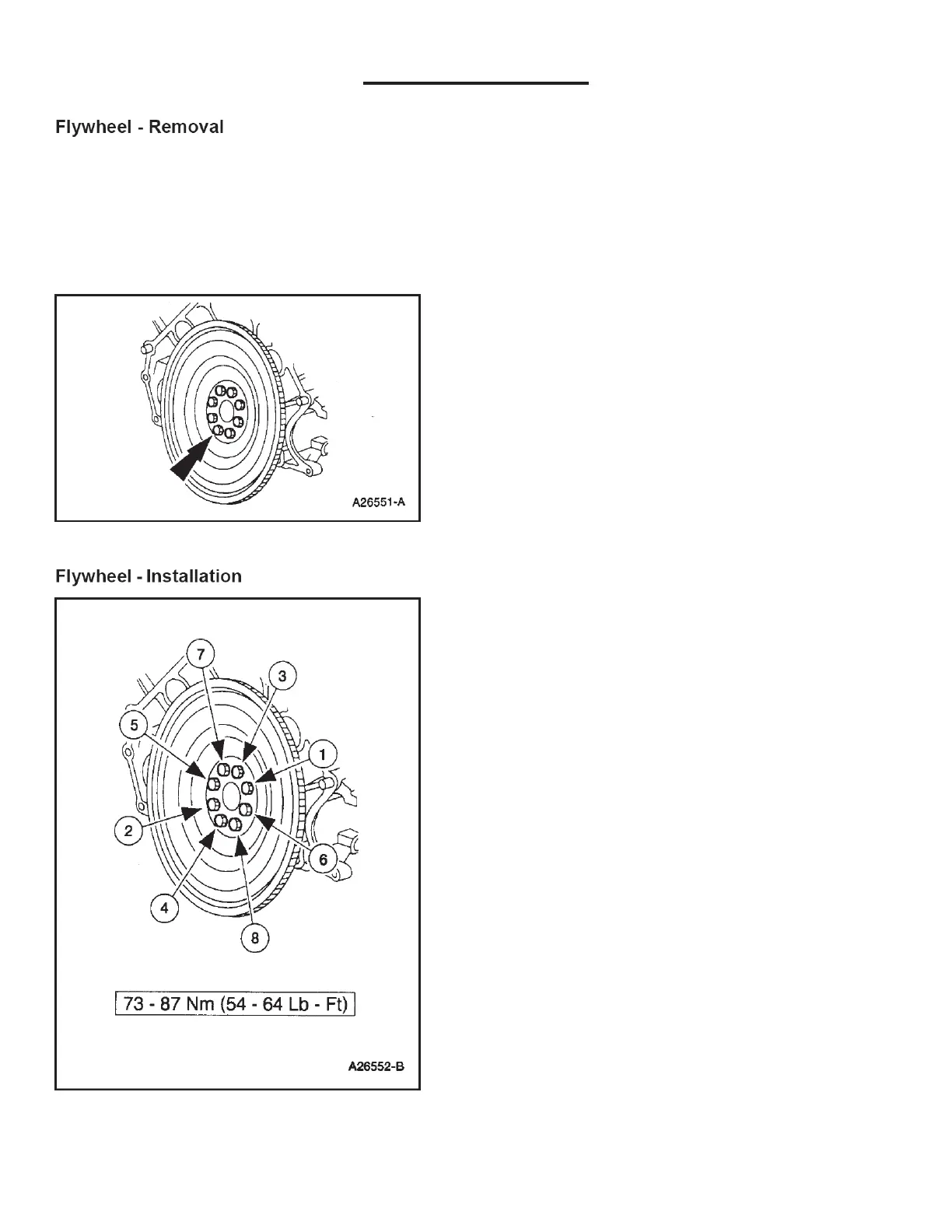

WSG-1068 ENGINE
1. Disconnect the battery ground cable (14301).
2. Remove generator from bell housing.
3. Remove bell housing.
4. Remove the bolts and the flywheel (6375).
1. Follow the removal procedure in reverse order.
