3. NOTE: If the rear main oil seal is still in place and
being reinstalled, be sure the lip is not folded over or
wrinkled during the retainer plate installation. The seal
lip must start squarely on the crankshaft journal.

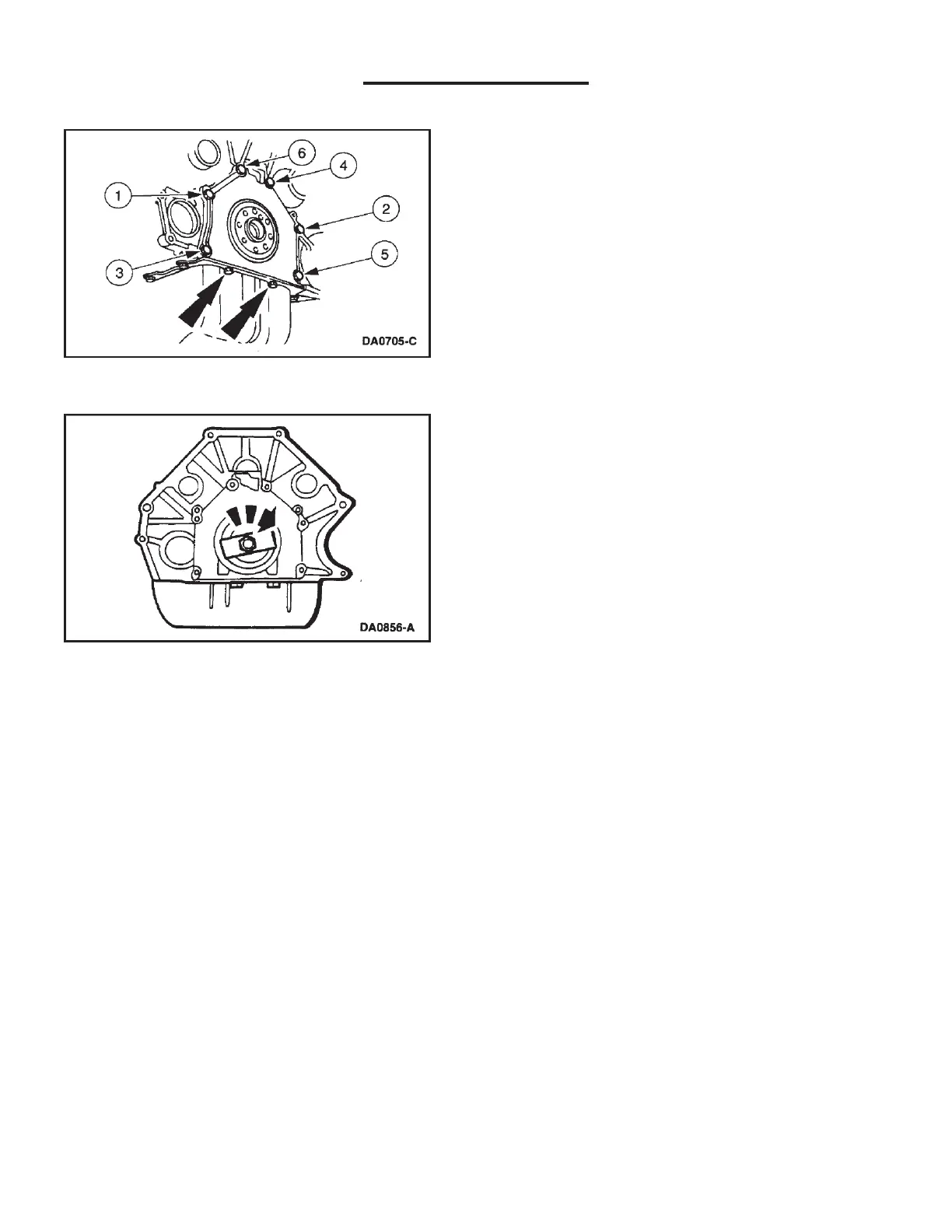

Position the crankshaft rear oil seal and retainer
(6K301), install the bolts. Then install the oil pan and
the two bolts. Tighten in two stages.
Stage 1: Tighten retainer plate bolts to 8-12 Nm
(71-107 lb/in).
Stage 2: Tighten oil pan bolts to 14-20 Nm 10-15
lb/ft) then tighten an additional 90°.
4. Use the Rear Crankshaft Seal Replacer and Rear
Crankshaft Seal Adapter to install the crankshaft rear
oil seal.
5. With the Rear Crankshaft Seal Adapter still installed,
use the Rear Crankshaft Slinger Replacer and Rear
Crankshaft Seal Replacer to install the crankshaft oil
slinger.
6. Install the flywheel; refer to Flywheel in this section.
7. Connect the battery ground cable.
