100

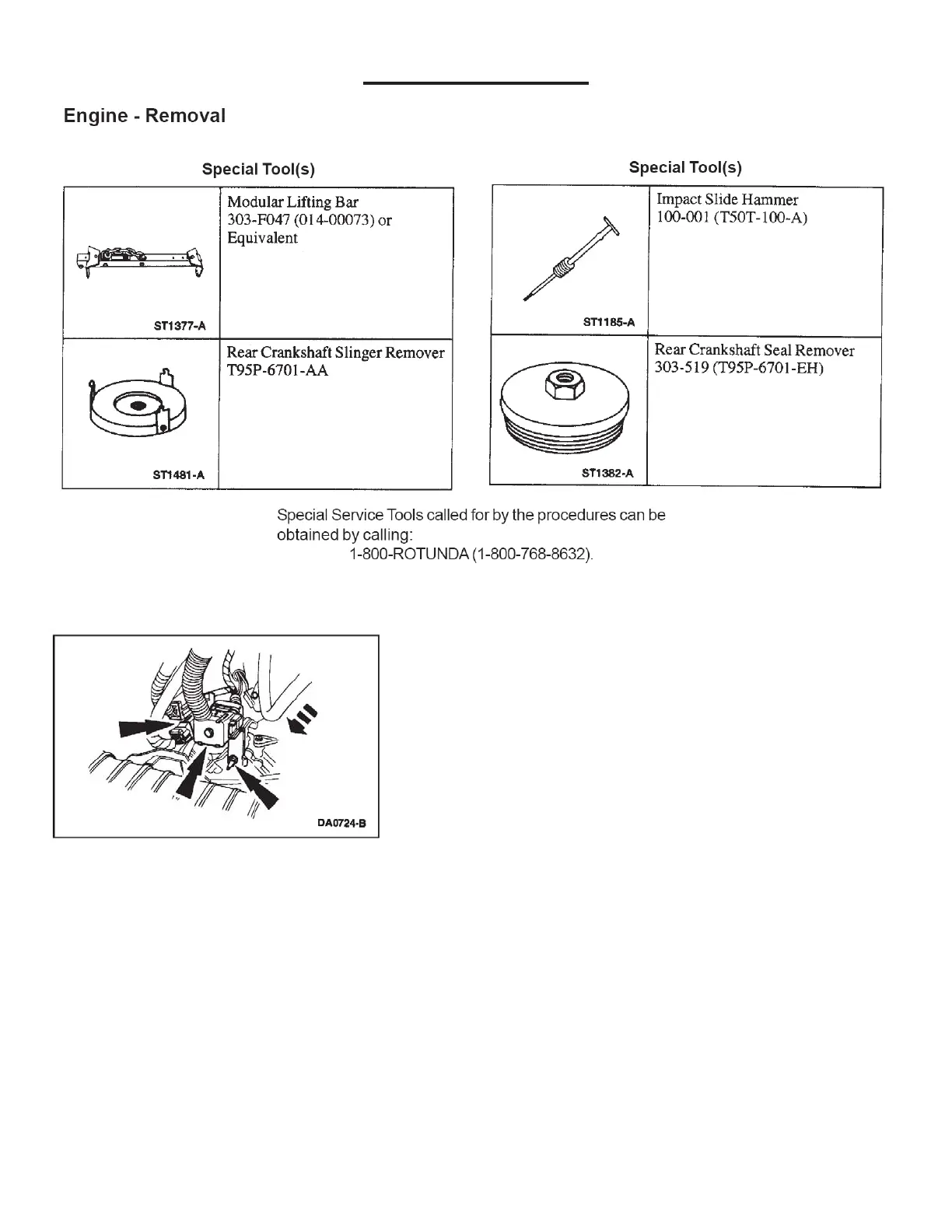

WSG-1068 ENGINE
1. Disconnect the battery ground cable (14301).
2. Remove the intake manifold (9424); refer to Intake
Manifold – Variable Resonance Induction System
(VRIS) in this section.
3. Remove the radiator upper and lower radiator supports
(16138).
4. Remove the radiator (8005), fan shroud (8146) and
engine cooling fan.
5. Remove the drive belt (8620); refer to Section 05.
