Engine distributors WSG-1068 - Page 147

131

WSG-1068 ENGINE

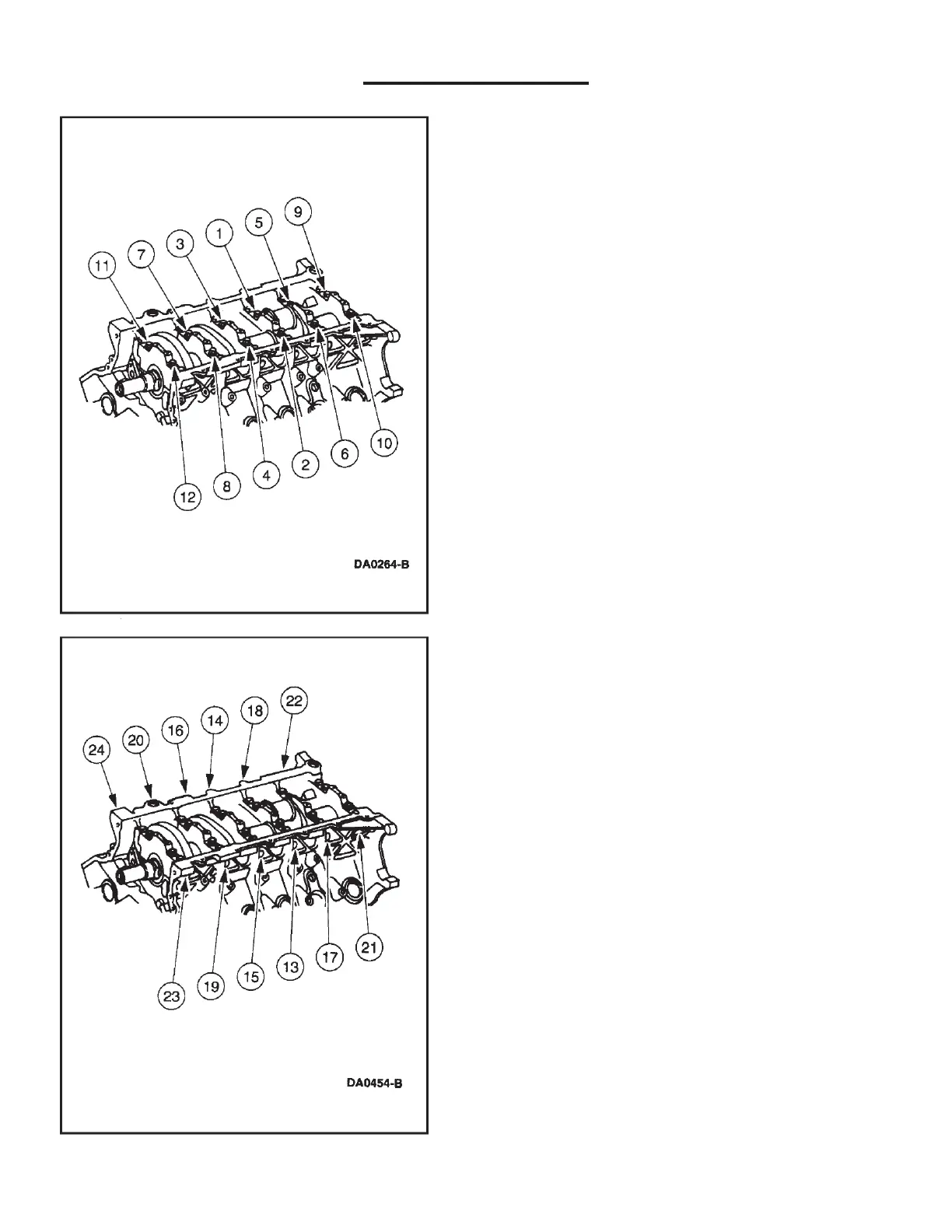

9. Tighten fasteners 1 through 12 in two stages in the
sequence shown.
 Stage 1: Tighten to 37-43 Nm (22-32 lb/ft).
 Stage 2: Tighten an additional 85 degrees to 95
degrees.
10. Tighten fasteners 13 through 24 in two stages in the
sequence shown.
 Stage 1: Tighten to 27-33 Nm (20-26 lb/ft).
 Stage 2: Tighten an additional 85 degrees to 95
degrees.
