140

WSG-1068 ENGINE

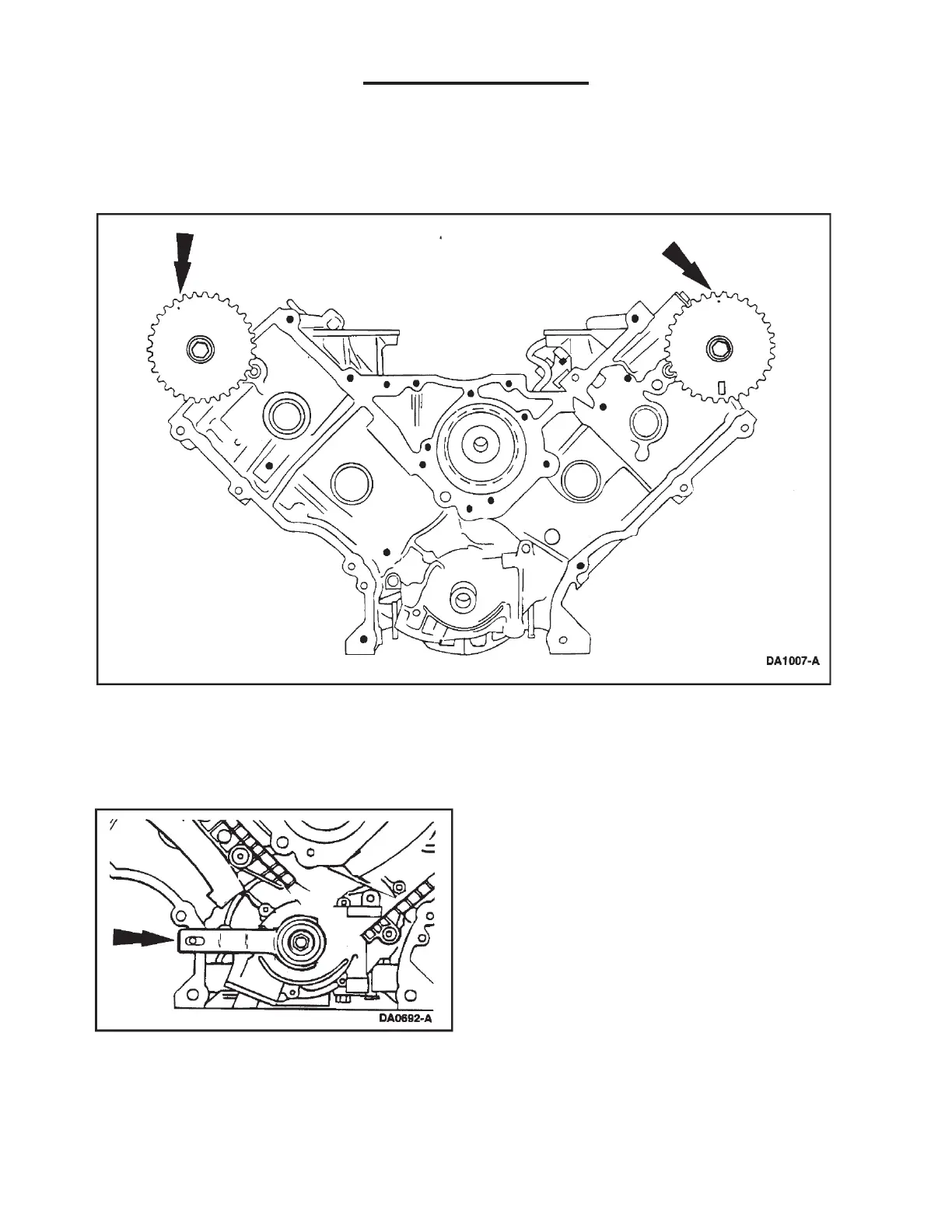

36. Rotate the LH camshaft sprocket until the timing mark is approximately at 12 o’clock.
Rotate the RH camshaft until the timing mark is approximately at 11 o’clock. Tighten the
Camshaft Holding Tools to maintain camshaft pre-positioning.
37. CAUTION: Unless otherwise instructed, at
no time when the timing chains (6268) are
removed and the cylinder heads are installed
is the crankshaft or camshaft to be rotated.
Severe piston and valve damage will occur.
CAUTION: Rotate the crankshaft
counterclockwise only. Do not rotate past the
position shown or severe piston or valve
damage can occur.
Position the crankshaft with the Crankshaft
Holding Tool.
38. Remove the Crankshaft Holding Tool.
