141
WSG-1068 ENGINE

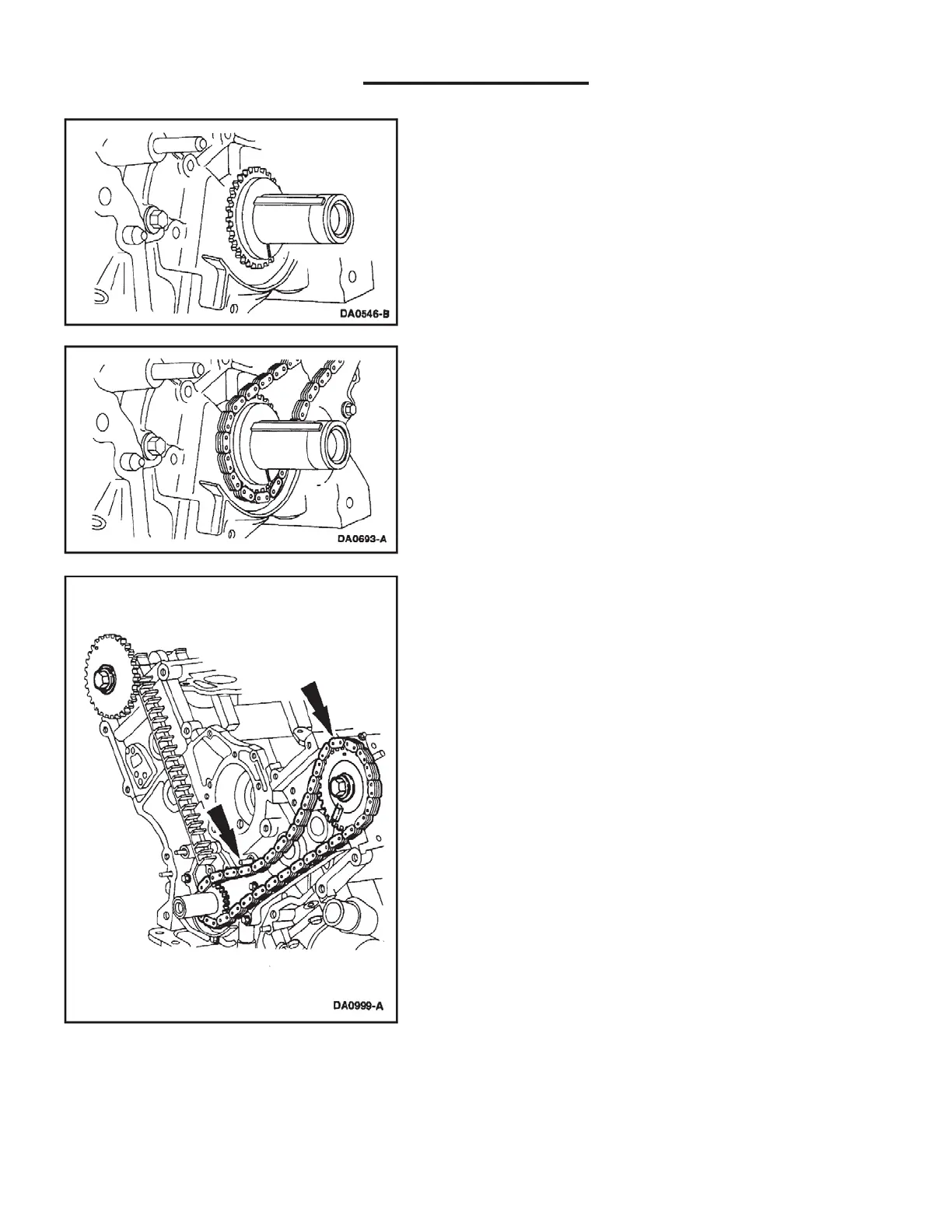

39. Position the inner crankshaft sprocket (6306) with
the long hub facing outward.
40. Install the LH timing chain/belt onto the crankshaft
sprocket, aligning the one copper link on the timing
chain with the slot on the crankshaft sprocket.
41. NOTE: Make sure the upper half of the timing chain
is below the tensioner guide dowel. If necessary, use
the Camshaft Holding Tool to adjust.
NOTE: If necessary, adjust the camshaft sprocket
slightly to obtain timing mark alignment.
Position the timing chain on the camshaft sprocket
with the two copper chain links and the camshaft
sprocket timing mark aligned.
