155
WSG-1068 ENGINE

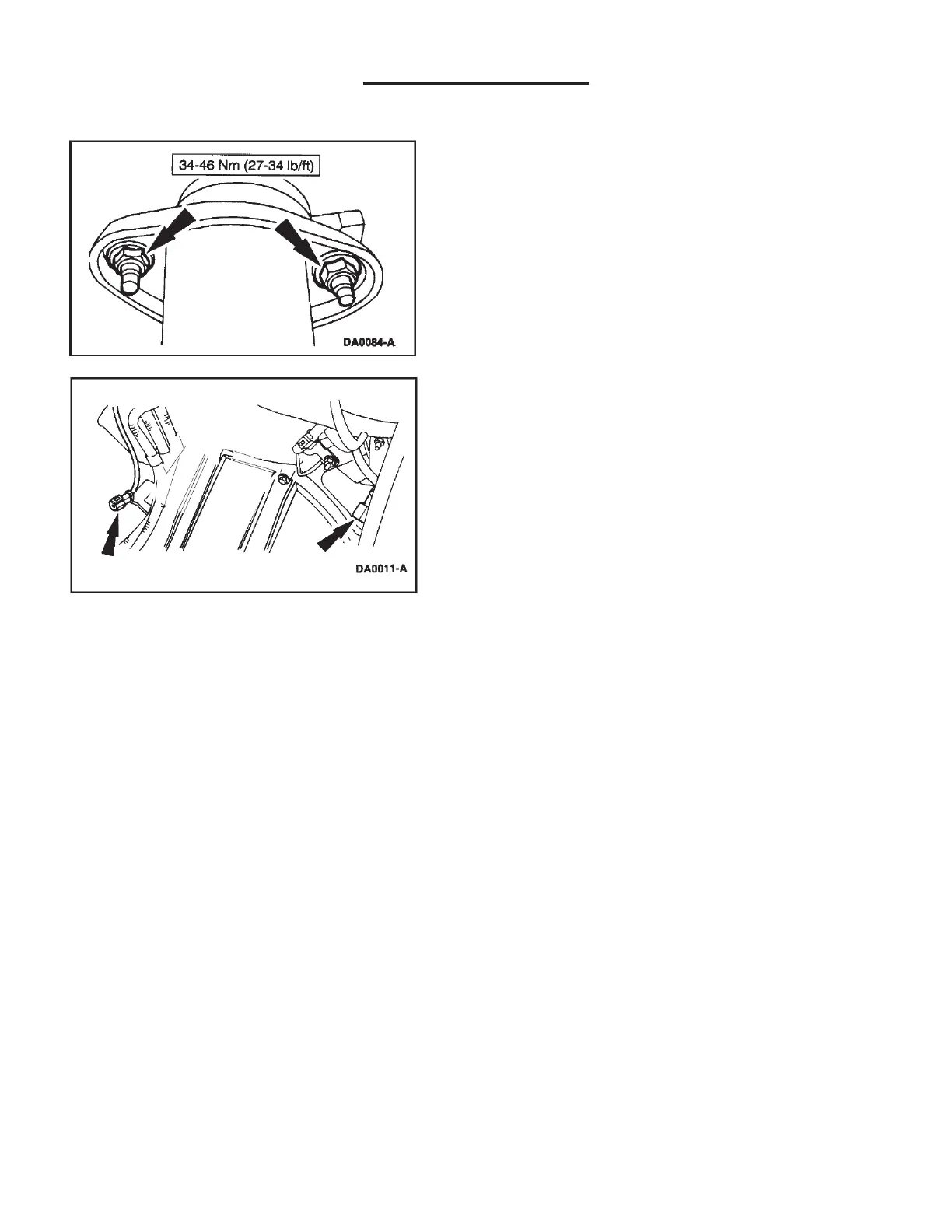

10. Connect the left and right exhaust pipes and install
and tighten the nuts.
NOTE: Apply a light coat of anti-sieze compound
F6AZ-9L494-AA or equivalent meeting Ford
specification ESE-M12A4-A to the threads of the
exhaust manifold studs.
11. Connect the LH and RH heated exhaust gas oxygen
sensor connector if equipped.
12. Install the intake manifold (9424); refer to Intake
Manifold – Variable Resonance Induction System
(VRIS) in this section.
13. Install vacuum hoses.
14. Install the drive belt (8620).
15. Install the upper and lower radiator supports (16138).
16. Install the radiator (8005).
17. Install the engine air cleaner (ACL) (9600) and the air
cleaner outlet tube (9B659).
18. Fill all fluids to the proper levels.
19. Connect the battery ground cable (14301).
20. Start the engine and check for leaks. Stop the engine
and recheck the fluid levels.
