WSG-1068 IGNITION SYSTEM
Troubleshooting Wiring Harness and
Connector Hidden Concerns

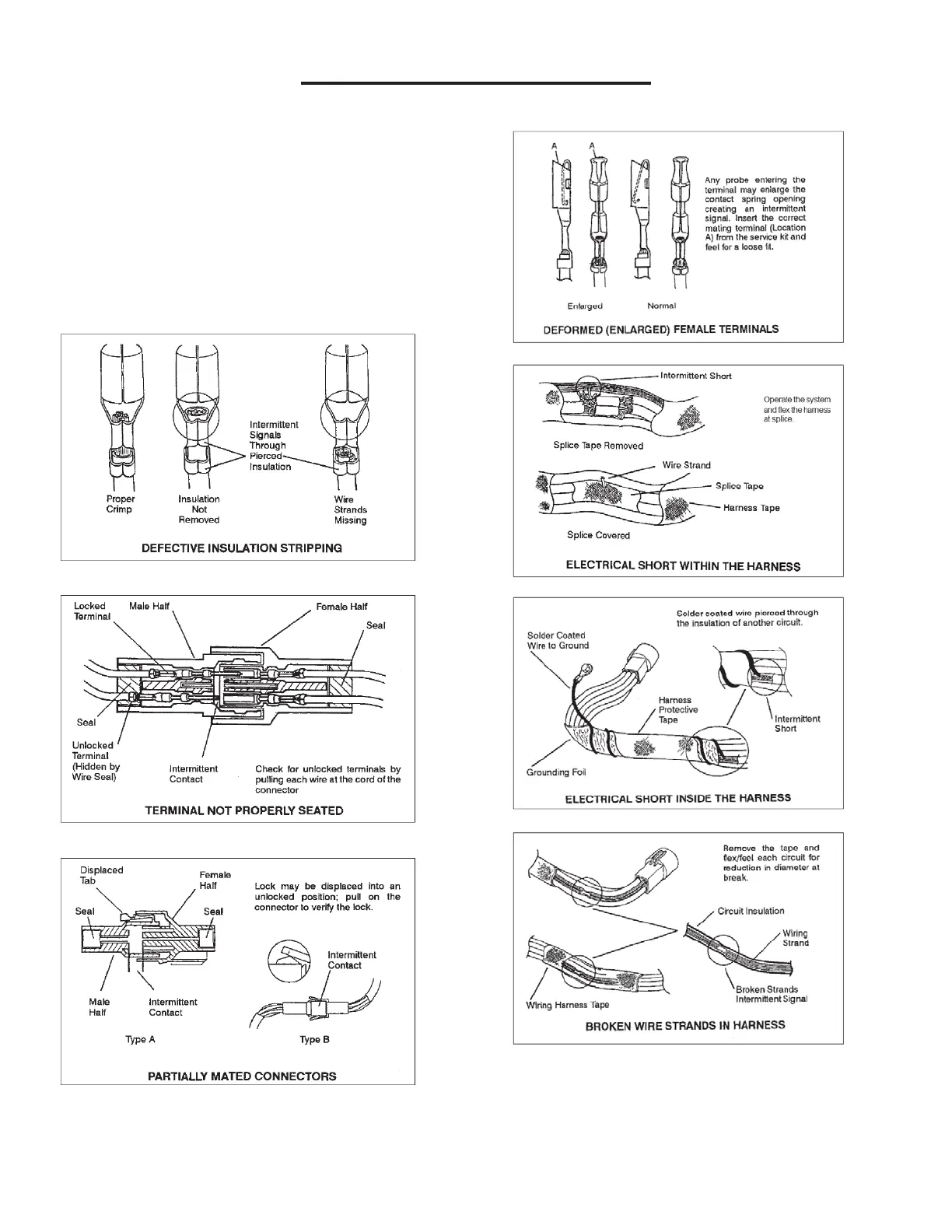

The following illustrations are known examples of wiring
harness, splices and connectors that will create
intermittent electrical concerns. The concerns are hidden
and can only be discovered by a physical evaluation as
shown in each illustration.
NOTE: When servicing gold plated terminals in a
connector, only replace with gold plated terminals
designed for that connector.
