232
WSG-1068 CHARGING SYSTEM
REMOVAL AND INSTALLATION
Generator - Removal
1. Disconnect battery ground cable (14301).
2. Remove snow/ice shield.
3. Disconnect the generator voltage regulator
wiring (14305) to the voltage regulator.
4. Remove wiring connector bracket.
5. Relieve the tension of the drive belt tensioner
(613209) and remove the drive belt.
6. Remove the bolts holding the generator to the
generator bracket (10A313).
7. Remove the generator from the generator
bracket.
Generator - Installation
1. Position the generator on the generator bracket.
2. Install the bolts and tighten to 40-55 Nm (30 -40
ftlb).
3. Install the drive belt over the generator pulley.
4. Relieve the tension of the drive belt tensioner
and install the drive belt over tensioner.
5. Connect generator voltage regulator wiring to
the voltage regulator. Tighten generator Battery
Positive Voltage (B+) wire attaching nut to 9-12
Nm (6.5-9 ftlb).
6. Install wiring connector bracket.
7. Install snow/ice shield.
8. Connect battery ground cable.

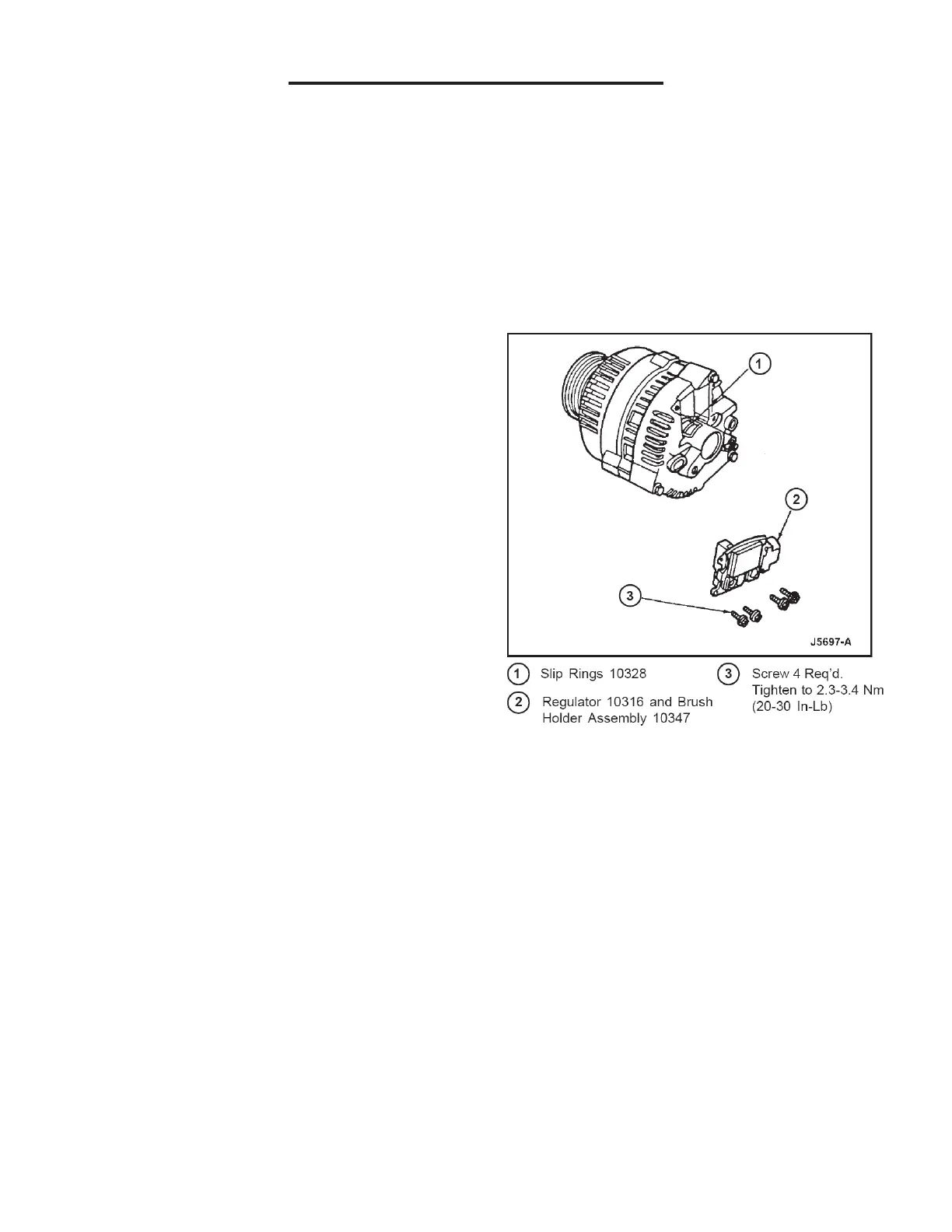

Regulator - Removal
1. NOTE: for ease or removal and installation of
regulator, remove the generator from engine as
described above.
Remove the four screws (T20 Torx type head)
attaching the voltage regulator to the generator
housing. Remove the voltage regulator with
generator brush holder (10351) attached, from
the generator.
