WSG-1068 STARTER SYSTEM

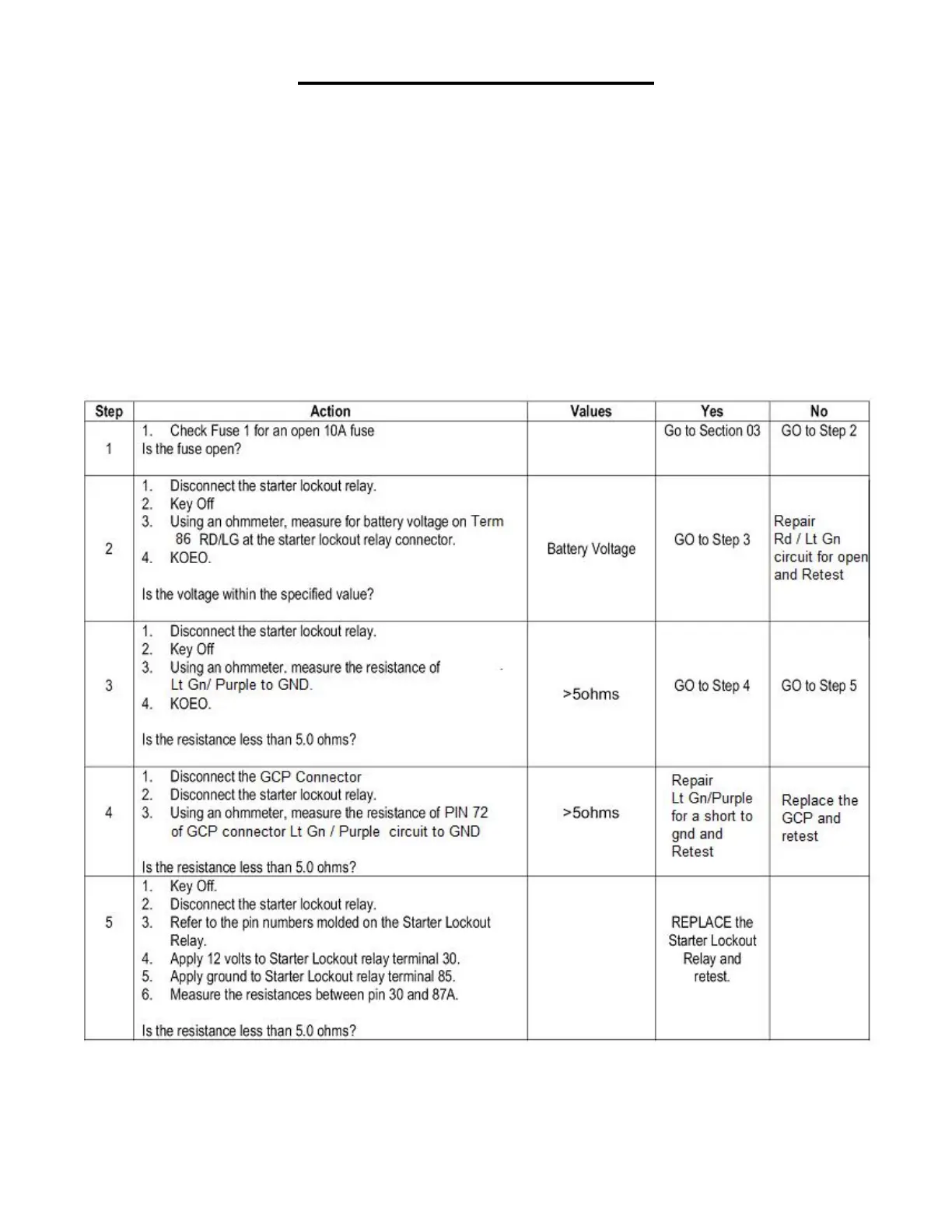

Pinpoint Test A - Starter Lockout Relay Check
Inspection and Verification
1. Visually inspect for obvious signs of mechanical and electrical damage.
2. Visually inspect for and note auxiliary system connections not shown on the recommended wiring
schematic.
3. >= Greater than
4. < = Less than
Normal Operation
Terminals 30 and 87A of the starter lockout relay are normally closed while the ignition switch is in the start/crank position
and the engine rpm is less than 600. When the engine has reached 600 rpm or greater the GCP will ground the relay
terminal 85 and open terminals 30 & 87A which will not allow the starter to be engaged while the engine is operating
above 600 rpm.
