WSG-1068 STARTER SYSTEM
System Inspection and Verification
CAUTION: When disconnecting the plastic
hardshell connector at the solenoid “S” terminal,
grasp the plastic connector and pull lead off. DO
NOT pull separately on lead wire.
WARNING: WHEN SERVICING STARTER OR
PERFORMING OTHER WORK IN THE VICINITY OF
THE STARTER, BE AWARE THAT THE HEAVY
GAUGE BATTERY INPUT LEAD AT THE STARTER
SOLENOID IS “ELECTRICALLY HOT” AT ALL TIMES.
NOTE: Be sure to disconnect battery negative cable
before servicing starter.
1. Inspect starting system for loose connections.
2. If system does not operate properly, note
condition and continue diagnosis using the
symptom chart.
WARNING: WHEN WORKING IN AREA OF
THE STARTER, BE CAREFUL TO AVOID TOUCHING
HOT EXHAUST COMPONENTS.

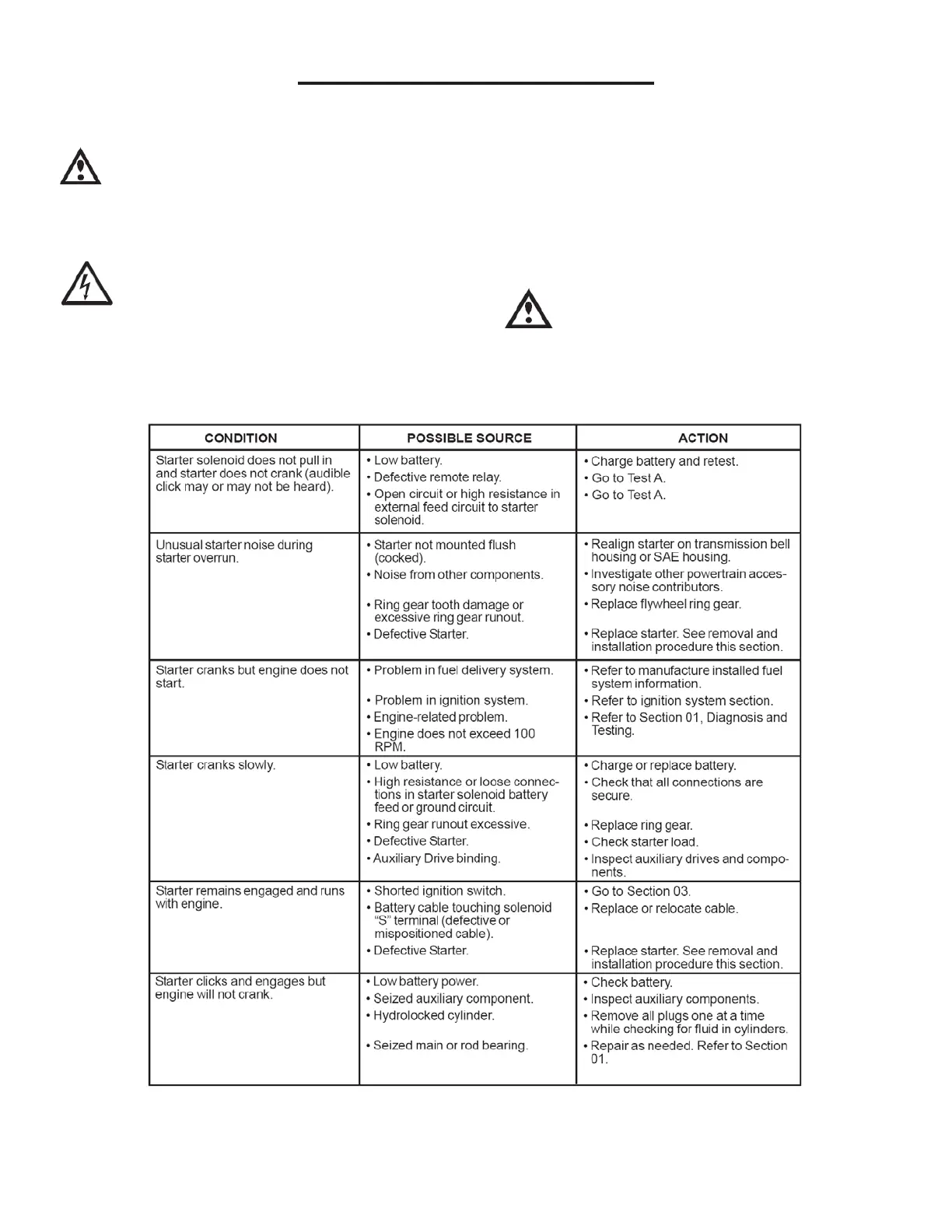

SYMPTOM CHART
