WSG-1068 STARTER SYSTEM
Starter Drive and Flywheel Ring Gear Inspection

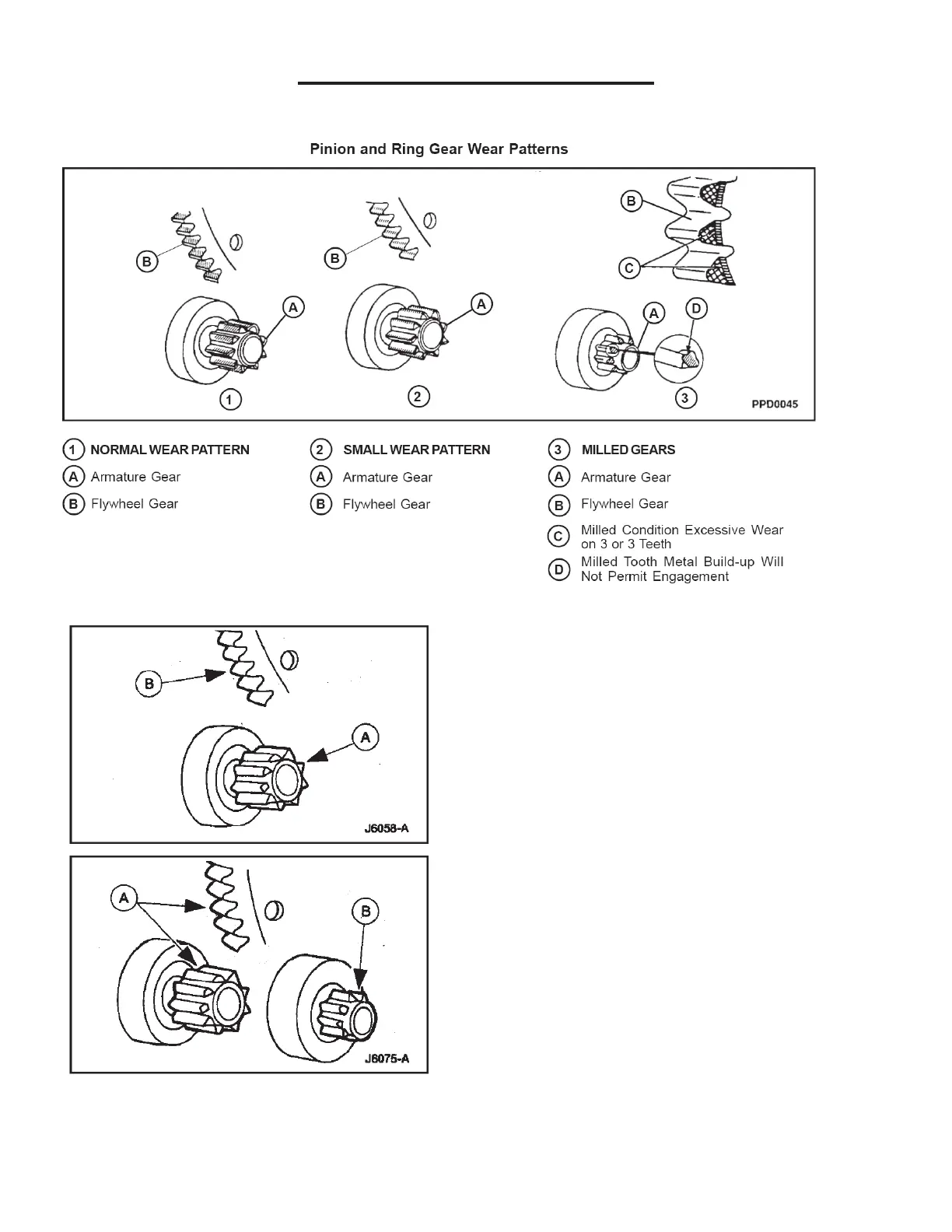

1. Check the wear patterns on the (A) starter drive
(11350) and the (B) flywheel ring gear. If the
wear pattern is normal, install the starter motor;
refer to Starter Motor - Installation on page 07-
18.
2. If the (A) starter drive gear and the flywheel ring
gear are not fully meshing or the gears are (B)
milled or damaged, replace the starter motor;
refer to Starter Motor - Installation on page 07-
18. Replace the flywheel ring gear.
