WSG-1068 ENGINE

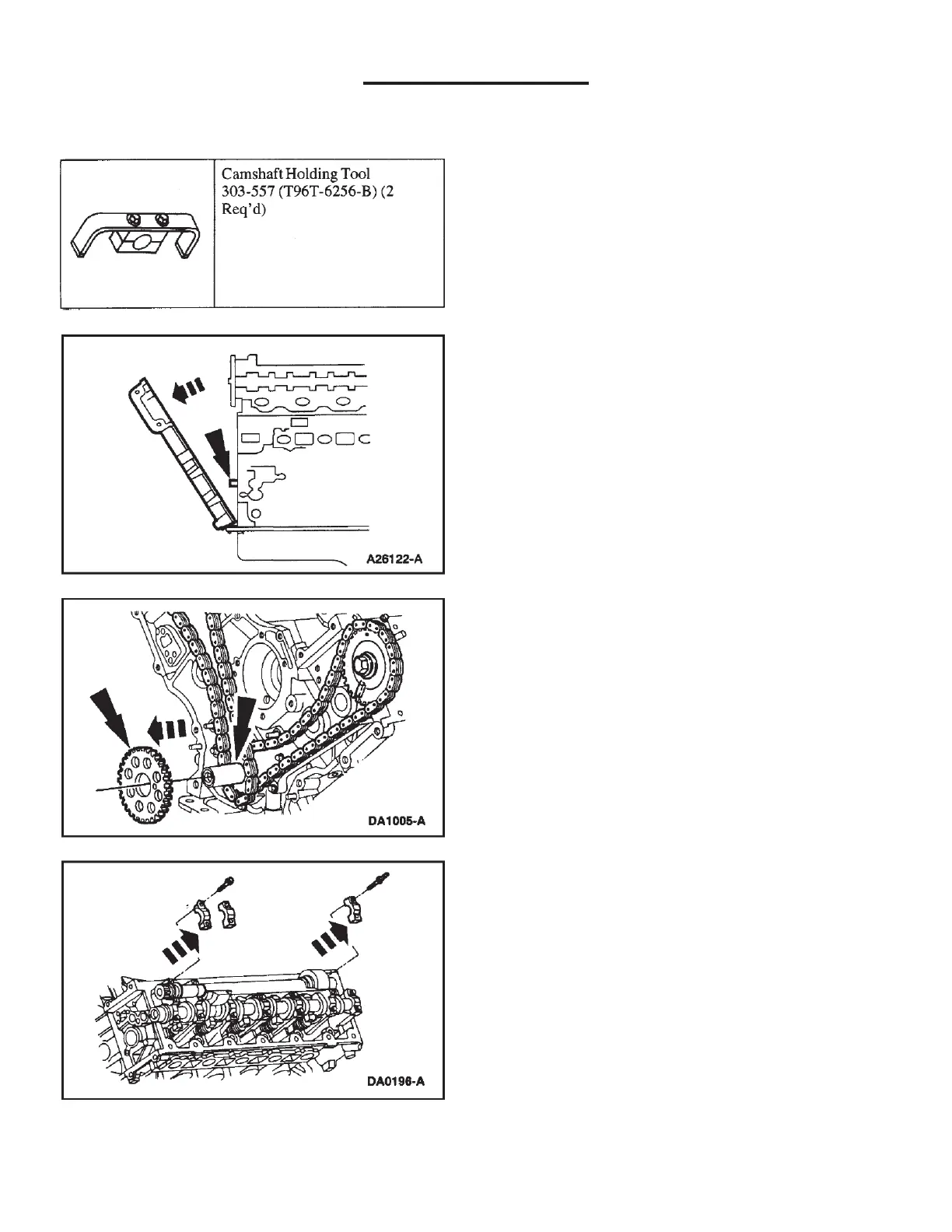

Timing Drive Components - Removal
Special Tool(s)
Special Service Tools called for by the procedures can
be obtained by calling:
1-800-ROTUNDA (1-800-768-8632).
1. Remove the engine front cover (6019); refer to Engine
Front Cover in this section.
2. Remove the crankshaft sensor ring from the
crankshaft (6303).
3. Remove the six bolts and remove the balance shaft
bearing caps.
