69
WSG-1068 ENGINE

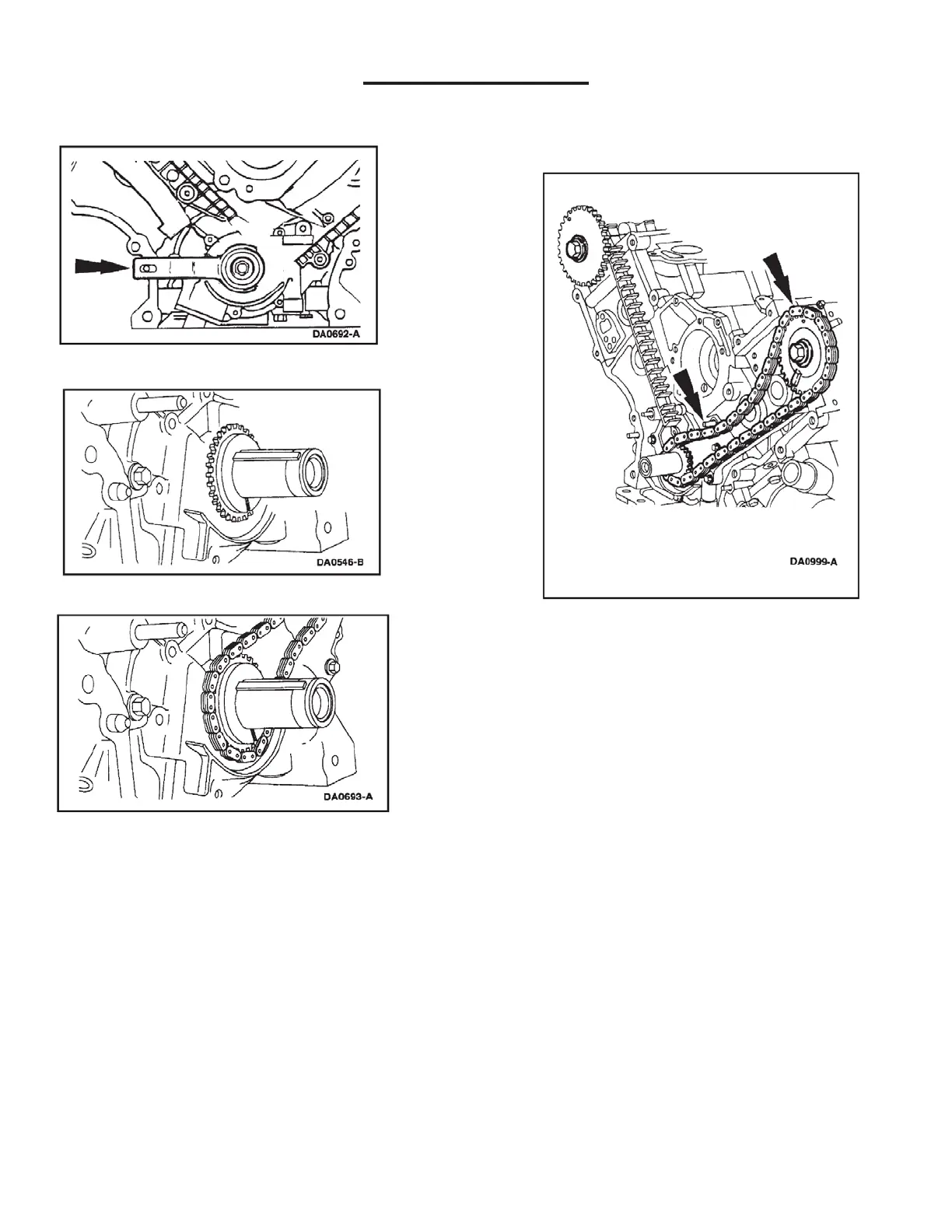

7. Remove the Crankshaft Holding Tool
8. Install the inner crankshaft sprocket with the long
hub facing outward.
9. Install the inner timing chain on the crankshaft
sprocket with the timing marks aligned.
10. NOTE: Be sure the upper half of the
timing chain is below the tensioner
