70
WSG-1068 ENGINE
11.
CAUTION: The camshaft sprocket can jump
time if the Camshaft Holding Tool is not
secured.
NOTE: Be sure the chain link and crankshaft
sprocket timing marks are aligned.
NOTE: The lower half of the timing chain must
be positioned above the dowel.

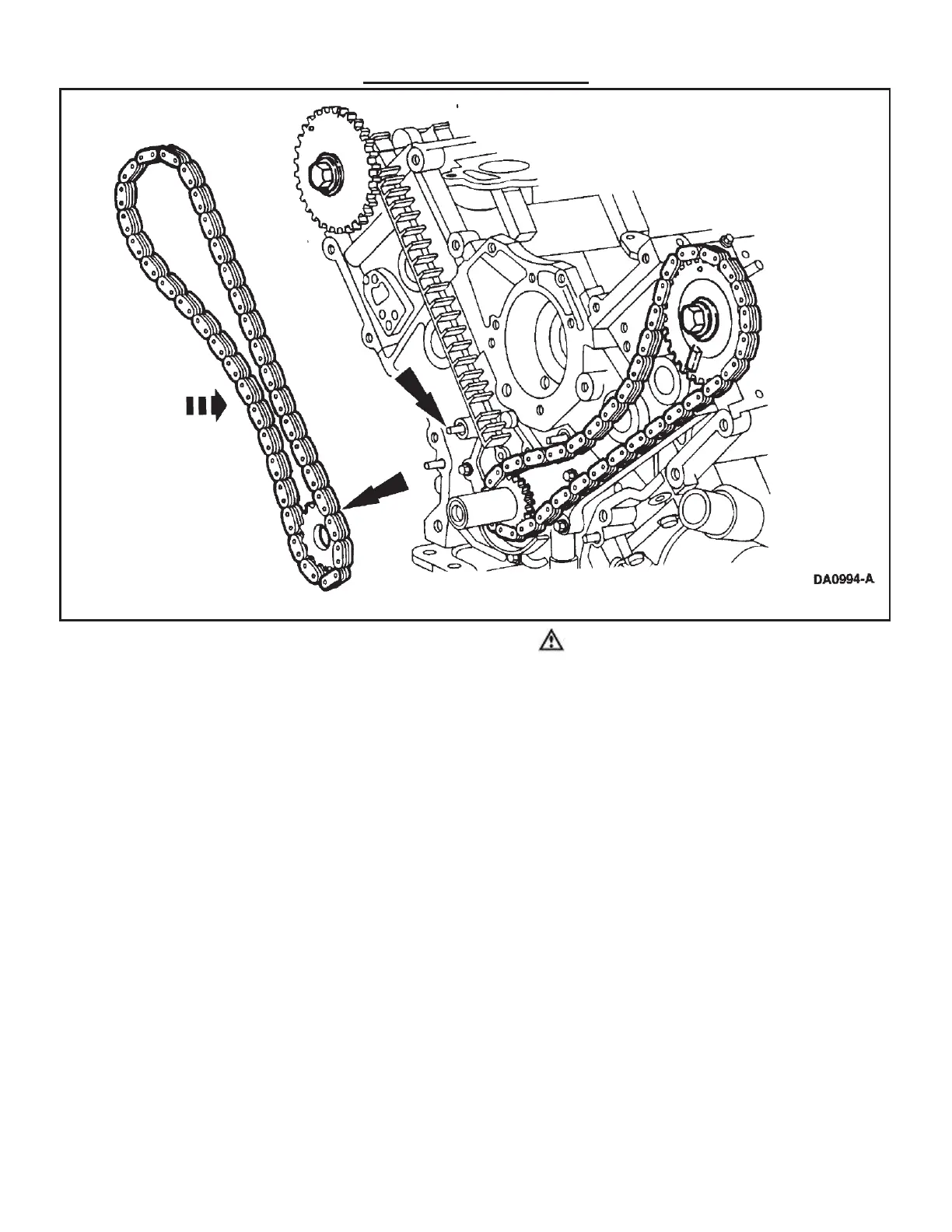

Install the outer crankshaft sprocket and timing
chain belt with the long hub of the crankshaft
sprocket facing inward.
12. Position the timing chain on the camshaft sprocket.
Make sure the two copper-colored links align
with the camshaft sprocket timing mark.
13. Check for proper alignment of all timing marks.
