Enraf Nonius 6 Series User Manual

49
1600751-4D
• Push the confirmation
button [6] to accept and
to see the complete
curve
• Return to the previous
menu via the central
controller [5]
• Select Report to see
the results by figures.
11.2.5.a.2 S/D Curve
• Select S/D Curve
Rectangular with the
central controller [5]
and enter with the
confirmation button [6]
• Select the phase
duration with the
central controller [5],
you can start on
highest (1000 ms) or
lowest value (50 µs)
• Push the confirmation
button [6] you activate
the intensity setting.
• Use the central
controller [5] to adjust
the intensity.
• Every push on the
special probe or every
beep will generate one
pulse.
• Confirm the value by
pushing the
confirmation
button [6]
• Select the second the
next phase duration
with the central controller in the list. To receive a correct calculation you need to select
minimum 10 different phase durations, always include 500 ms.
• Select “” (left corner) to return to the previous menu.


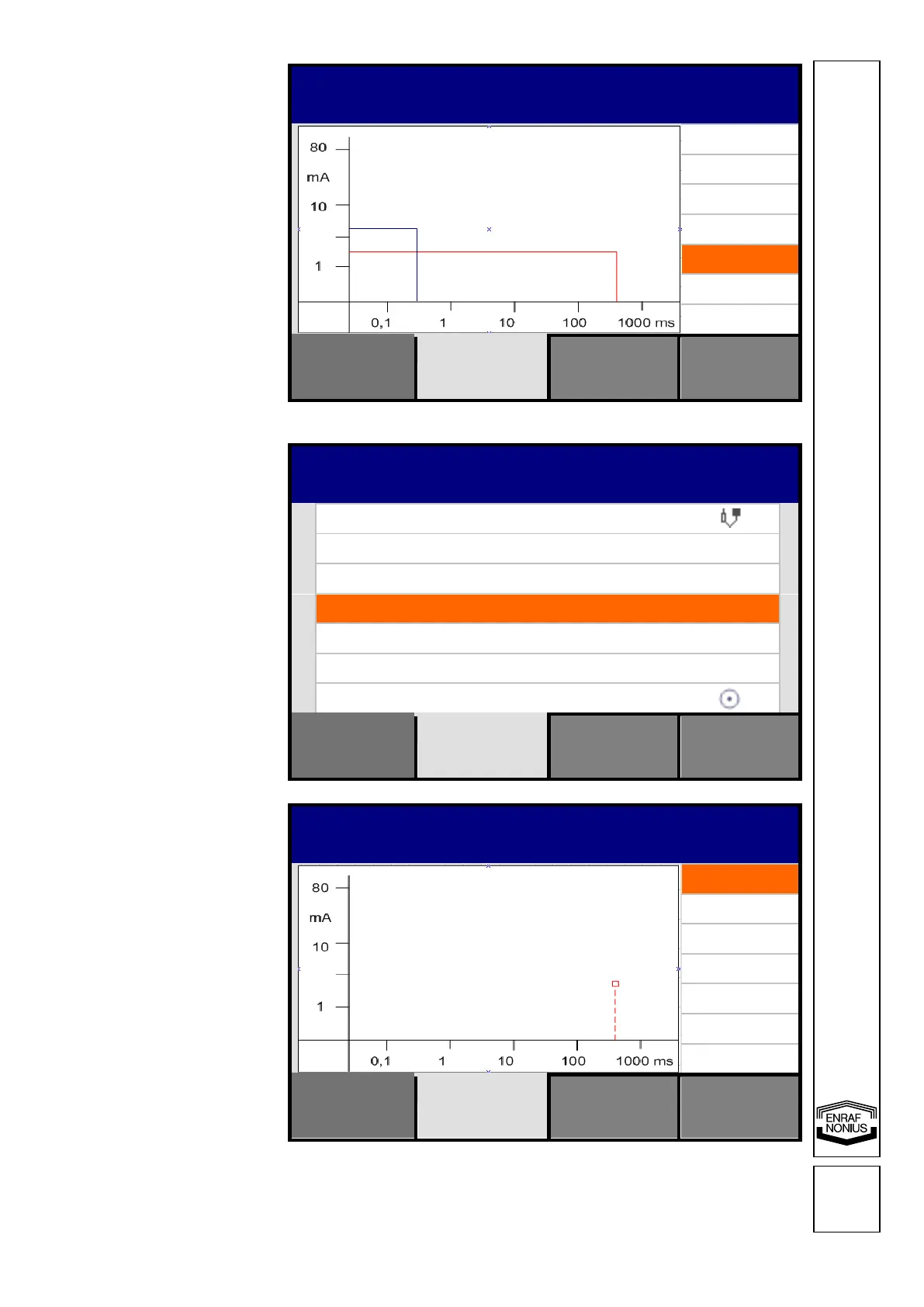

Diagnostics
2
Rheobase / Chronaxie
Rheobase
500 ms
Chronaxie
1000 µs
10.0 mA

Electrotherapy
2
Diagnostics
Electrode selection
Phase Interval
5 s
Rheobase / Chronaxie
S/D Curve Rectangular
S/D Curve Triangular
Report
Beep
mA

Diagnostics
2
S/D Curve Rectangular
1000 ms
700 ms
500 ms
300 ms
200 ms
100 ms
70 ms
5.0 mA
