5.2.17.5. Analog Output-2 Type Settings
1. Press the SET button while Analog O-2 Type is displayed.
2. The selected option starts to blink.
3. Select one of 0-5V, 0-10V, -5 ~ 5V, -10 ~ 10V, 0-20mA, 0-24mA ve 4-20mA options with UP/
DOWN buttons
4. After completing your selection, press the SET button.
5. When exiting from the menu with the BACK or ESC button, don’t forget to save the changes.
.

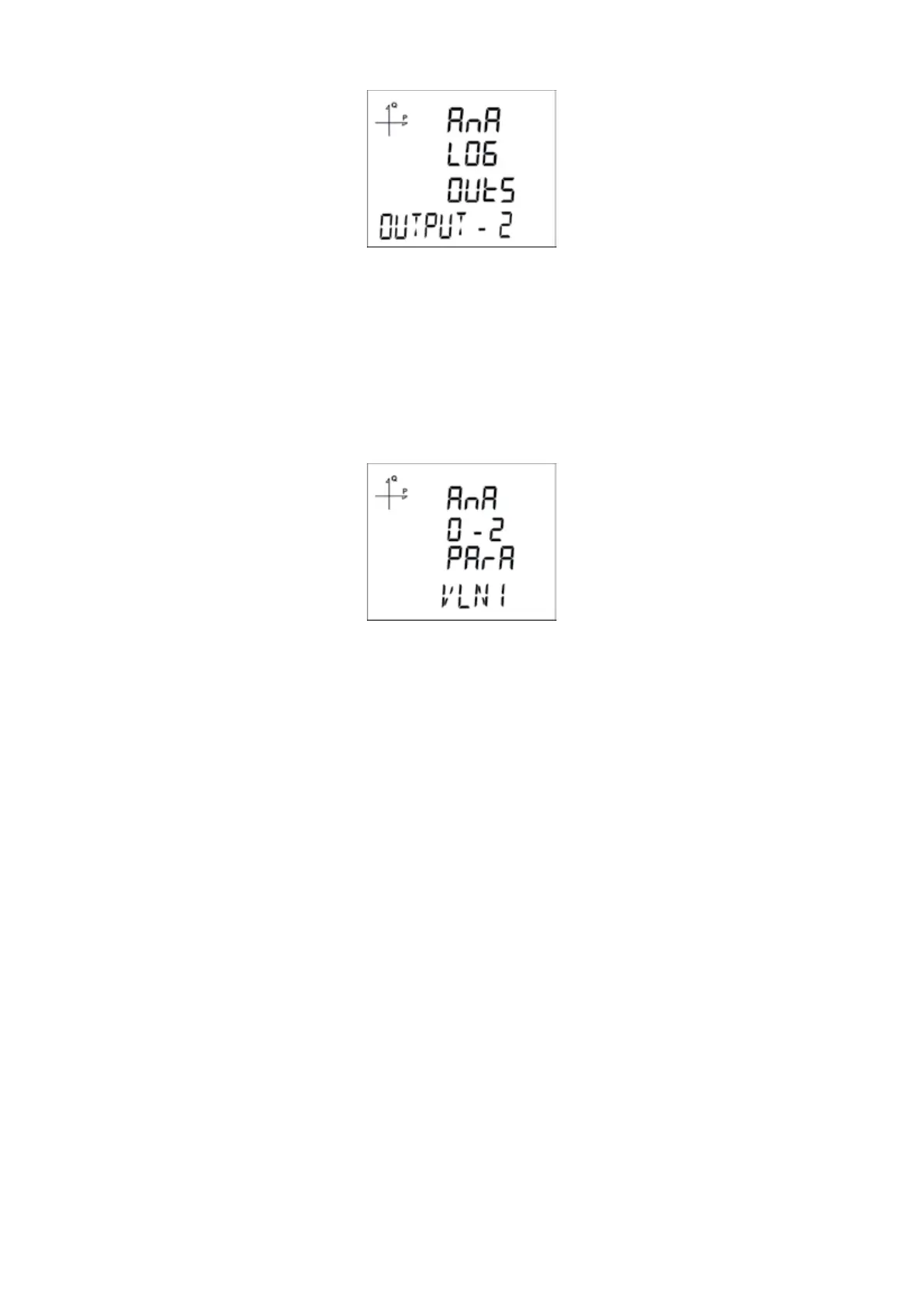

5.2.17.6. Analog Output-2 Parameter Settings
1. Press the SET button while Analog O-2 PArA is displayed.
2. The selected option starts to blink.
3. Select one of the following parameters with UP/DOWN buttons.
4. After completing ypur selection, press the SET button.
5. When exiting from the men with the BACK or ESC button, do not forget to save the changes.
a. VLN1,
b. VLN2,
c. VLN3,
d. VLN4,
e. VLL1,
f. VLL2,
g. VLL3,
h. IL1,
i. IL2,
j. IL3,
k. IL4,
l. IN,
m. IL1 DEMAND
n. IL2 DEMAND,
o. IL3 DEMAND,
p. IL4 DEMAND,
q. IN DEMAND,
r. P1,
s. P2,
t. P3,
u. Q1,
v. Q2,
w. Q3,
x. S1,
y. S2,
z. S3,
aa. Total P,
bb. Total Q,
cc. Total S,
dd. Cos Phi-1,
ee. Cos Phi-2,
. Cos Phi-3,
gg. Total Cos Phi,
hh. Frekans,
ii. VLN4,
jj. IL4,
kk. Total I,
ll. Total I Demand, mm)
mm. Total P Demand,
nn. Total S Demand,
oo. Total VLN,
pp. Total VLL
