EOS 94 00 Series User Manual

EOS Compact DC/HC - Installation and Operating Instructions EN-33
Installation

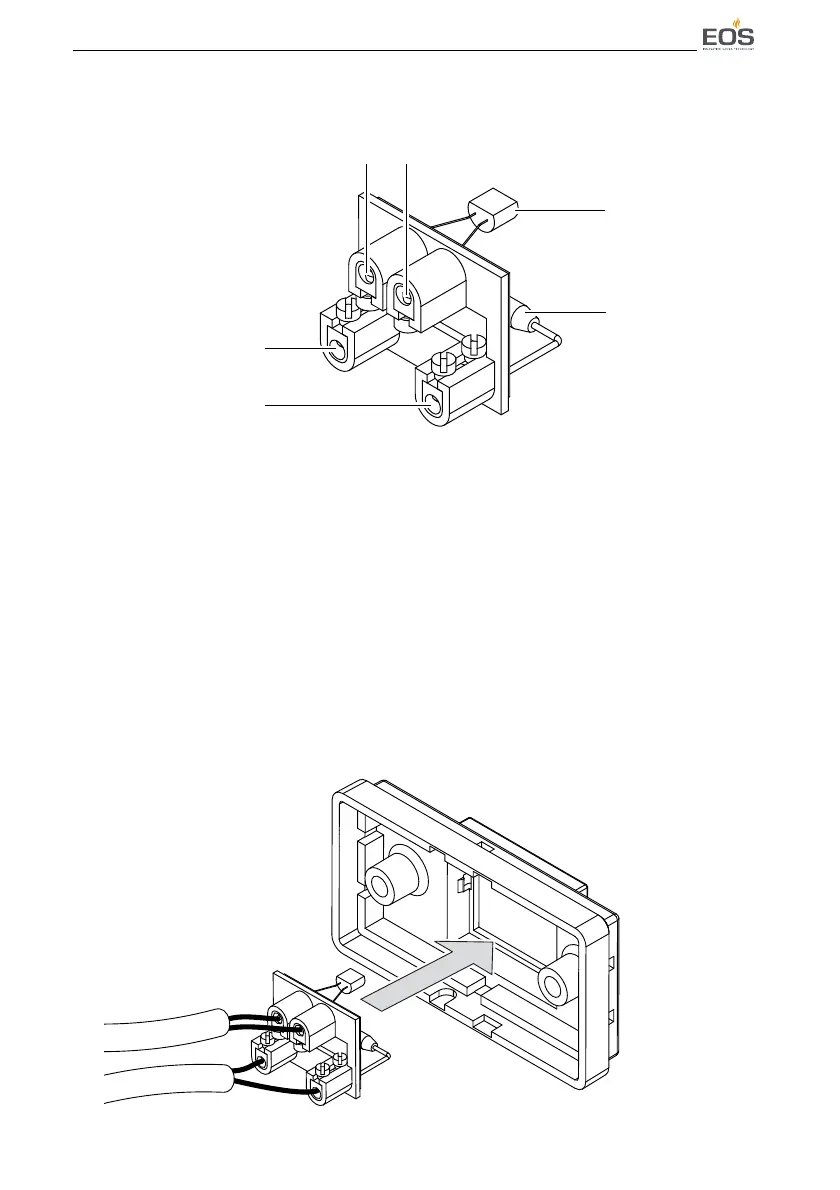

4 Open the heater sensor housing, remove the receiving disk and connect
the cable to the receiving disk.
 Connection for lines to the receiving disk
 The safety temperature limiter is available only in the heater sensor.
These work steps do not apply to the bench sensor and multisensor.
 If multiple sauna heaters are installed in a sauna cabin, it may be
necessary to install additional safety temperature limiters and
connect them in series.
5 Insert the receiving disk in the bottom of the housing.
A Connection for safety temperature
limiter
B Connection for temperature sensor line
C Temperature sensor
D Safety temperature limiter
A
C
B B
A
D
