9.1 Confi guring General Settings
Purpose:
Network settings must be properly confi gured before you operate device over network.
Steps:
1. Enter the Network Settings interface.
Menu > Confi guration > Network

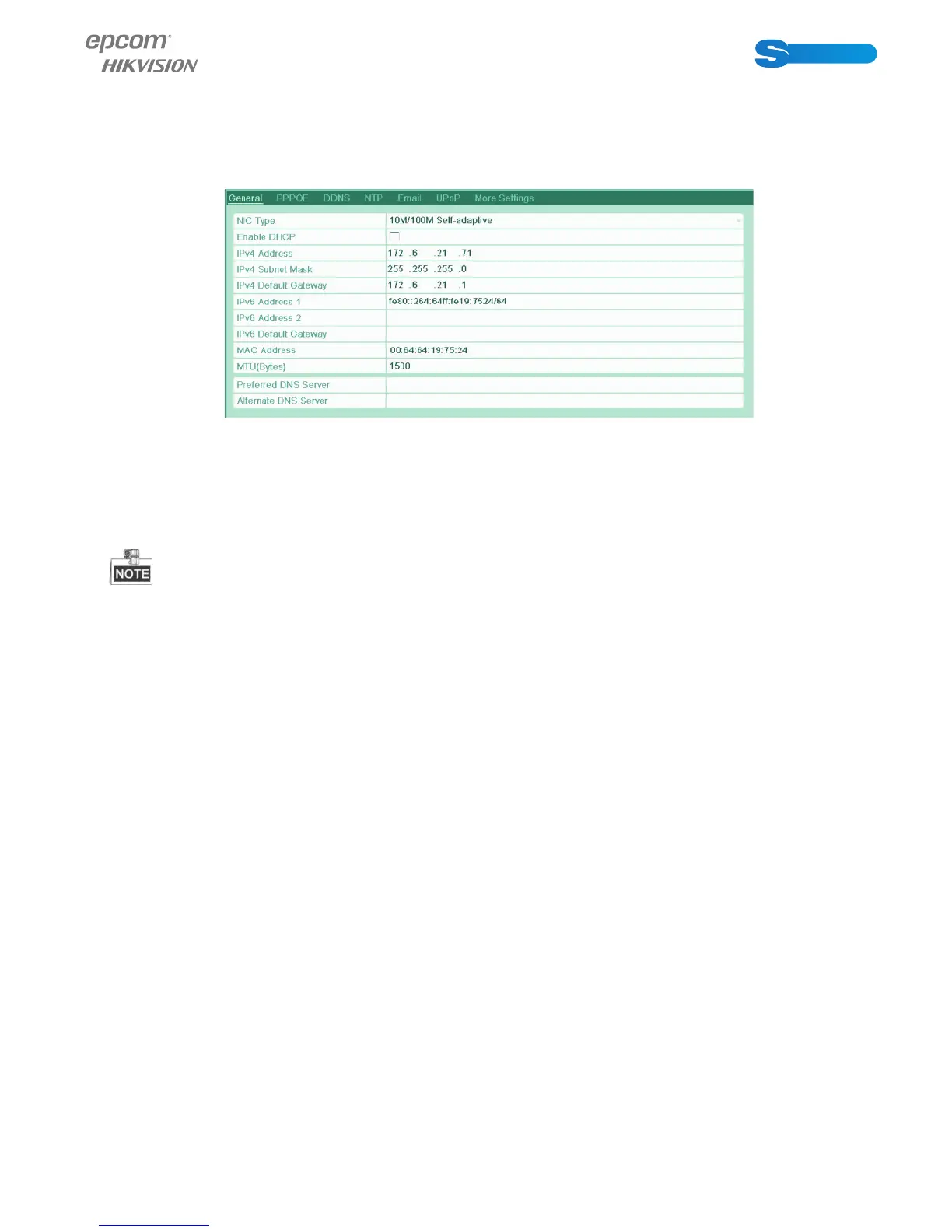

Figure 9.1 General Network Settings Interface
2. Select the General tab.
3. In the Gener al Settings interface:
You can confi gure the following settings: NIC Type, IPv4 Address, IPv4 Gateway, MTU and DNS Server.
If the DHCP server is available, you can click the checkbox of DHCP to automatically obtain an IP address and other network
settings from that server.
The valid value range of MTU is 1280 ~ 1500.
4. After having confi gured the general settings, click the Apply button to save the settings.
