EPSON FX-890/2190 Revision B
Maintenance Lubrication 101

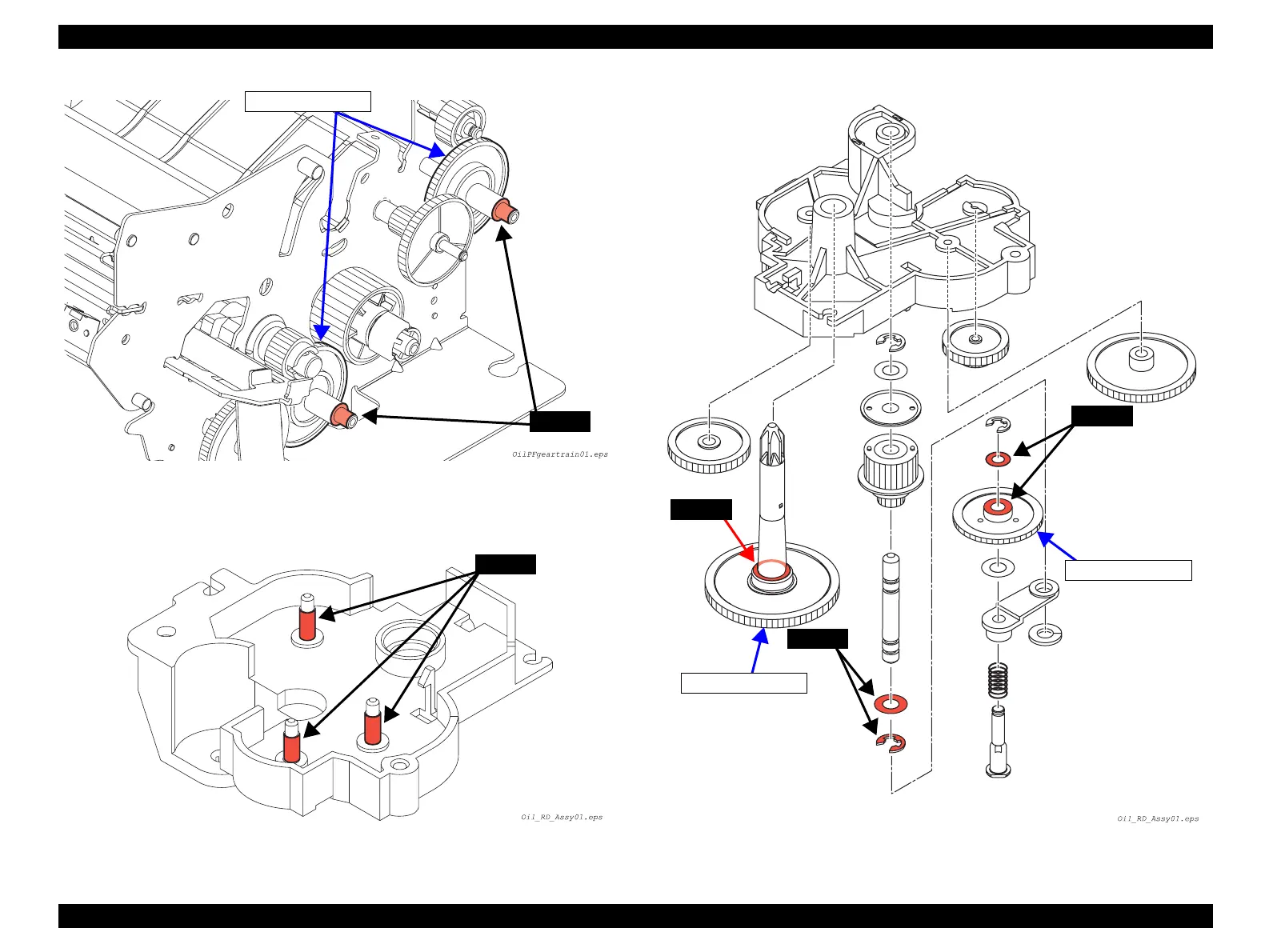

Figure 6-1. Lubrication Point (PF Gear Train)
Figure 6-2. Lubricating Point (RD Assy 1)
Figure 6-3. Lubricating Point (RD Assy 2)
SPUR GEAR, 34.5
G-26
G-26
Ratchet,RD
SPUR GEAR, 21
G-26
G-26
G-26
