EPSON FX-890/2190 Revision B
Maintenance Lubrication 102

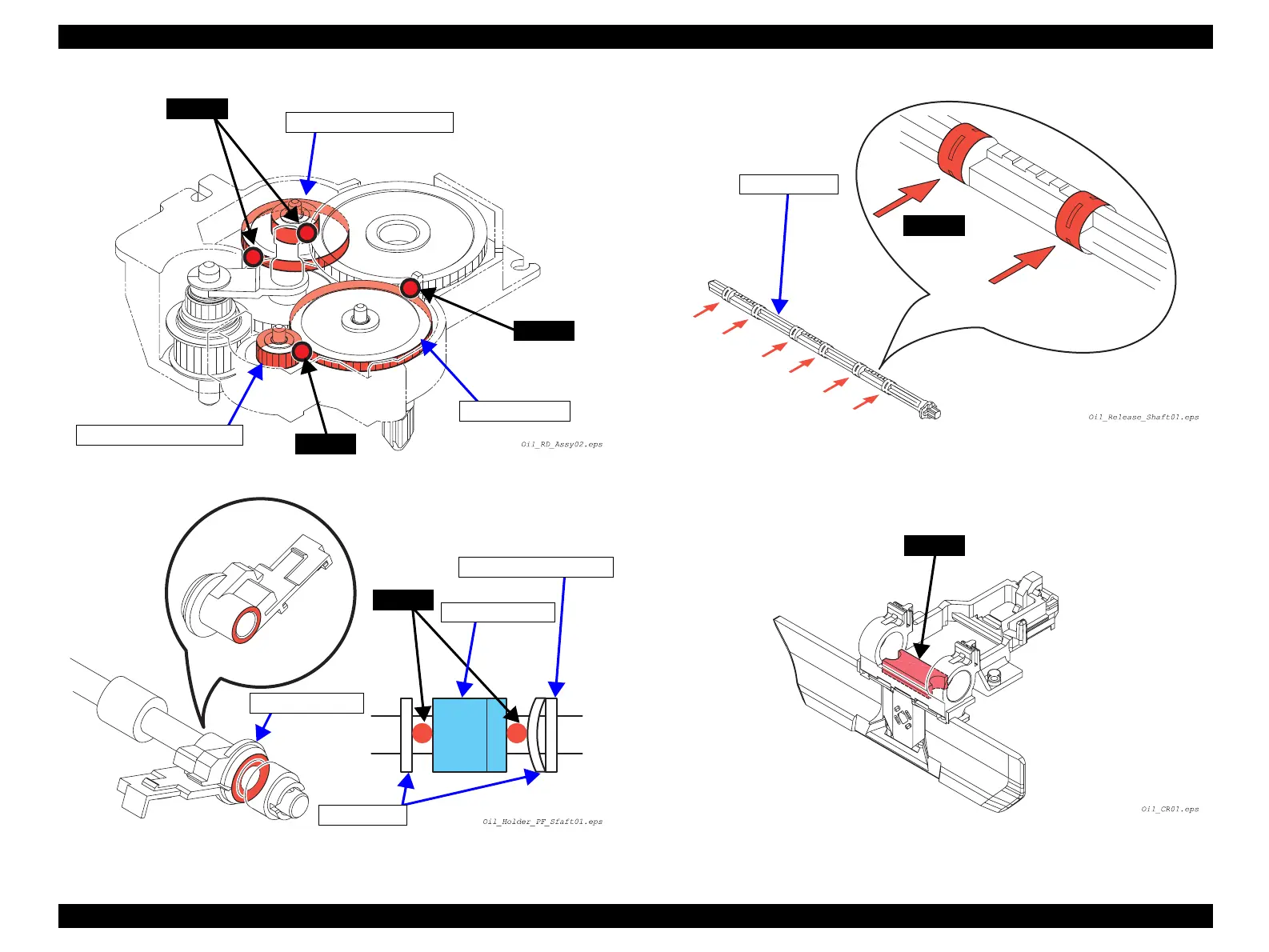

Figure 6-4. Lubricating Points (RD Assy 3)
Figure 6-5. Lubricating Points (Roller Assy, PF, Drive)
Figure 6-6. Lubricating Points (Shaft Release)
Figure 6-7. Lubricating Points (Carriage Assembly)
G-26
G-26
G-26
Combination Gear, 8.19
Combination Gear, 7.5,15
Spur Gear, 25.5
G-26
Holder, PF, Shaft
Plain Washer
Direction of Leaf Spring
Holder, PF, Shaft
G-26
Shaft Release
O-14
