Epson CMOS 32-Bit Single Chip Microcomputer S1C33L03 User Manual

III PERIPHERAL BLOCK: 8-BIT PROGRAMMABLE TIMERS
B-III-3-6 EPSON S1C33L03 FUNCTION PART
When both the timer RUN/STOP control bit (PTRUNx) and the timer preset bit (PSETx) are set to "1" at the
same time, the timer starts counting after presetting the reload register value into the counter.
PTRUNx
PSETx
RLDx
Input clock
PTDx7
PTDx6
PTDx5
PTDx4
PTDx3
PTDx2
PTDx1
PTDx0
Preset
Timer
initial setup
Reload and
interrupt
0xA60x10 0xF3

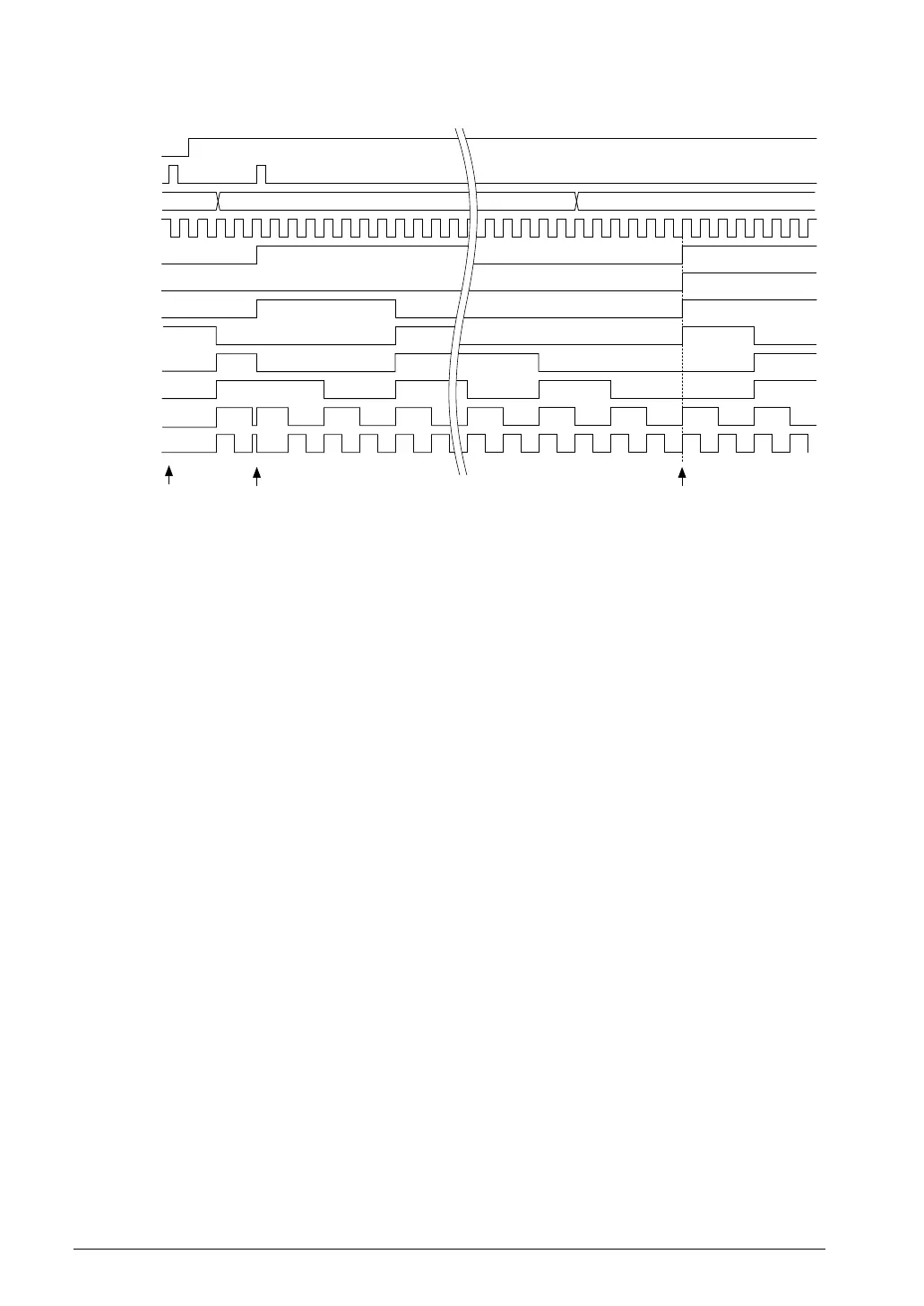

Figure 3.2 Basic Operation Timing of Counter
Reading out counter data
The counter data is read out via a PTDx data buffer. The counter data can be read out at any time.
Timer 0 data: PTD0[7:0] (D[7:0]) / 8-bit timer 0 counter data register (0x40162)
Timer 1 data: PTD1[7:0] (D[7:0]) / 8-bit timer 1 counter data register (0x40166)
Timer 2 data: PTD2[7:0] (D[7:0]) / 8-bit timer 2 counter data register (0x4016A)
Timer 3 data: PTD3[7:0] (D[7:0]) / 8-bit timer 3 counter data register (0x4016E)
Timer 4 data: PTD4[7:0] (D[7:0]) / 8-bit timer 4 counter data register (0x40176)
Timer 5 data: PTD5[7:0] (D[7:0]) / 8-bit timer 5 counter data register (0x4017A)
