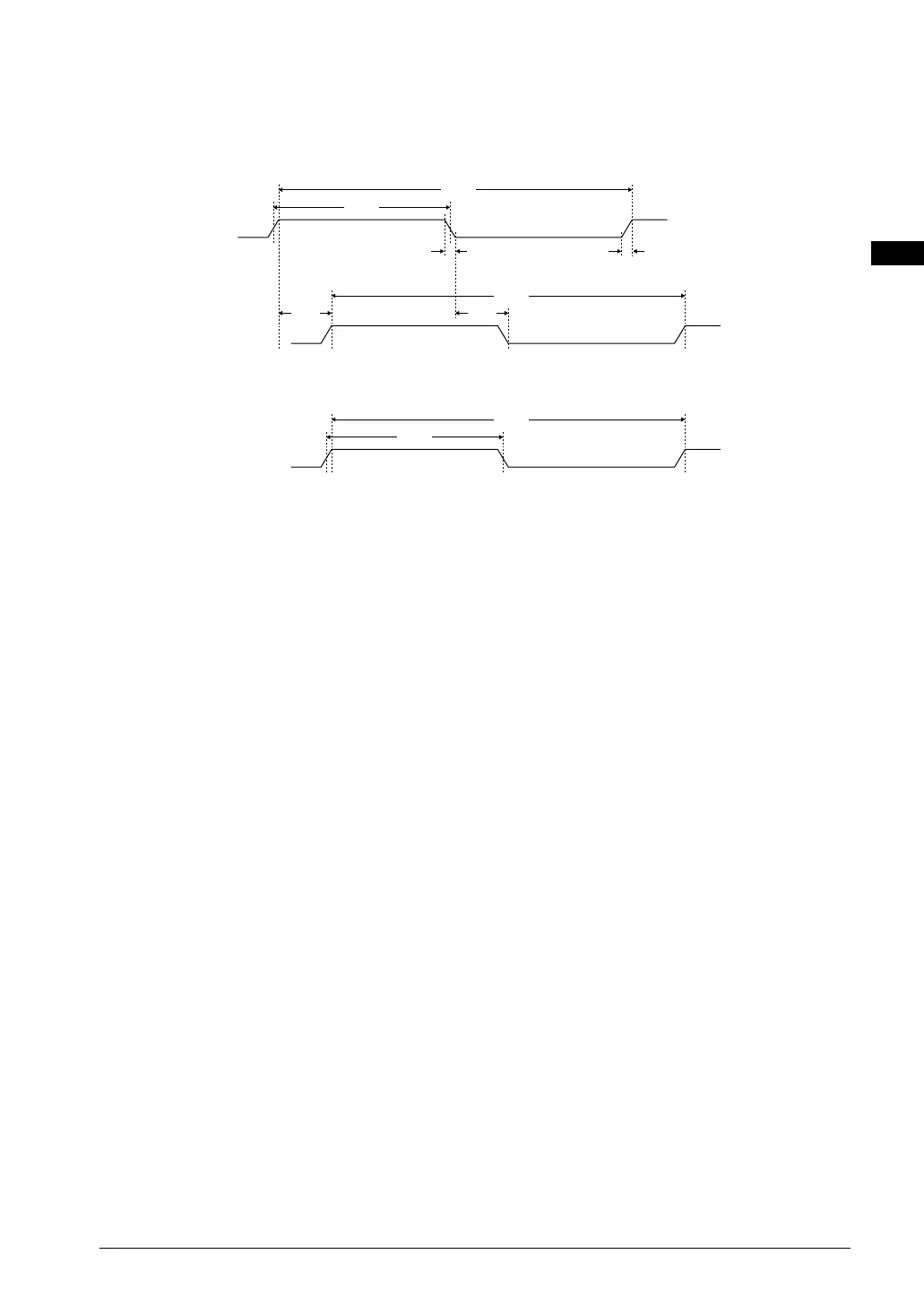

8.6.4 C33 Block AC Characteristic Timing Charts
Clock
OSC3
(High-speed clock)
t C3
BCLK
(Clock output)
t C3
t C3H
t C3ED = t C3H/ t C3
t CBD = t CBH/ t C3
BCLK
(Clock output)
t C3
t CBH
t CD1 t CD2
t IF t IR
(1) When an external clock is input (in x1 speed mode):
(2) When the high-speed oscillation circuit is used for the operating clock:
