Epson CO-FD01 - External Dimensions

To Next Page

To Previous Page

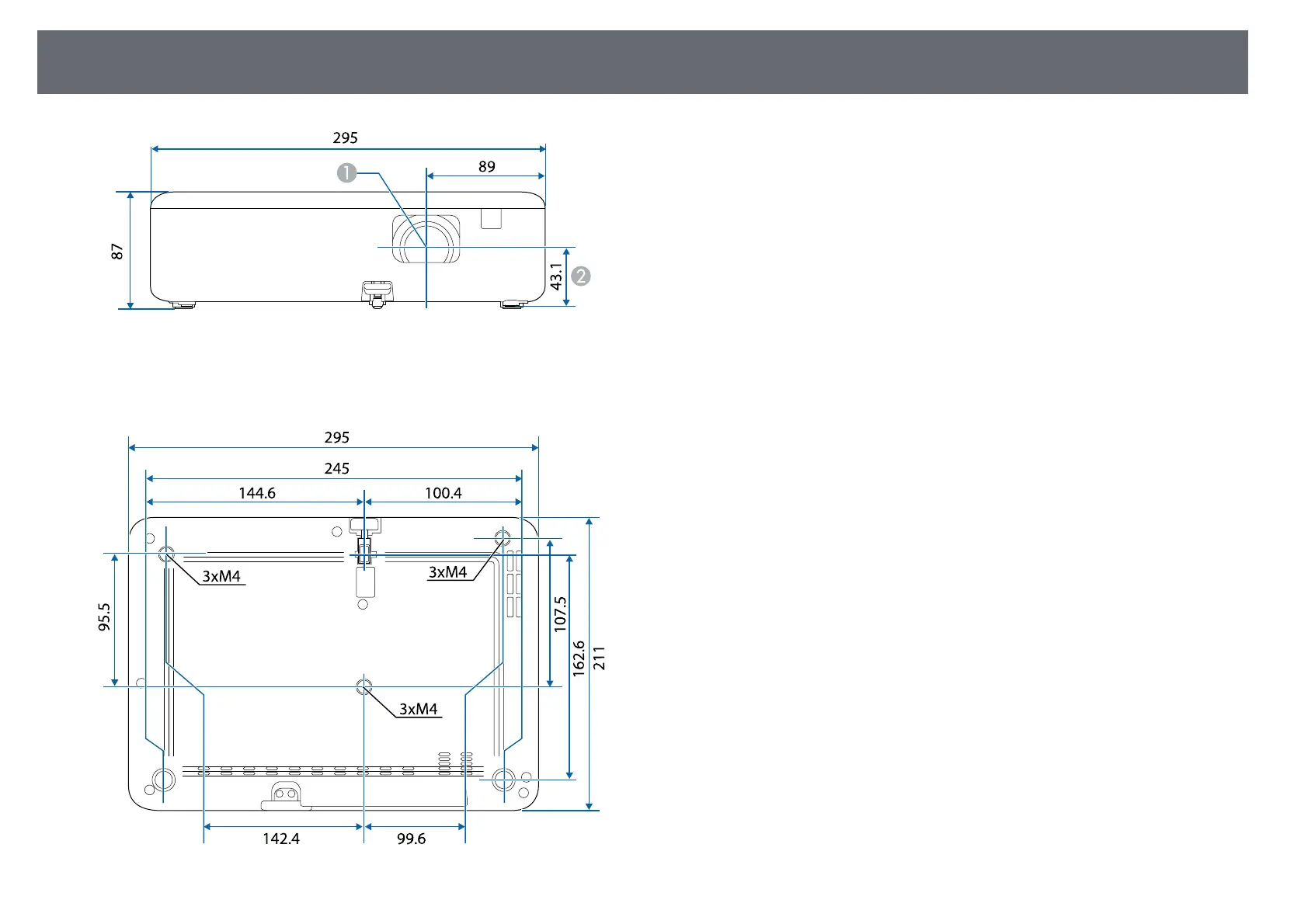

External Dimensions

124

Center of lens

Distance from center of lens to suspension bracket fixing point

The unit in these illustrations is mm.
