Epson EB-770F User Manual

162

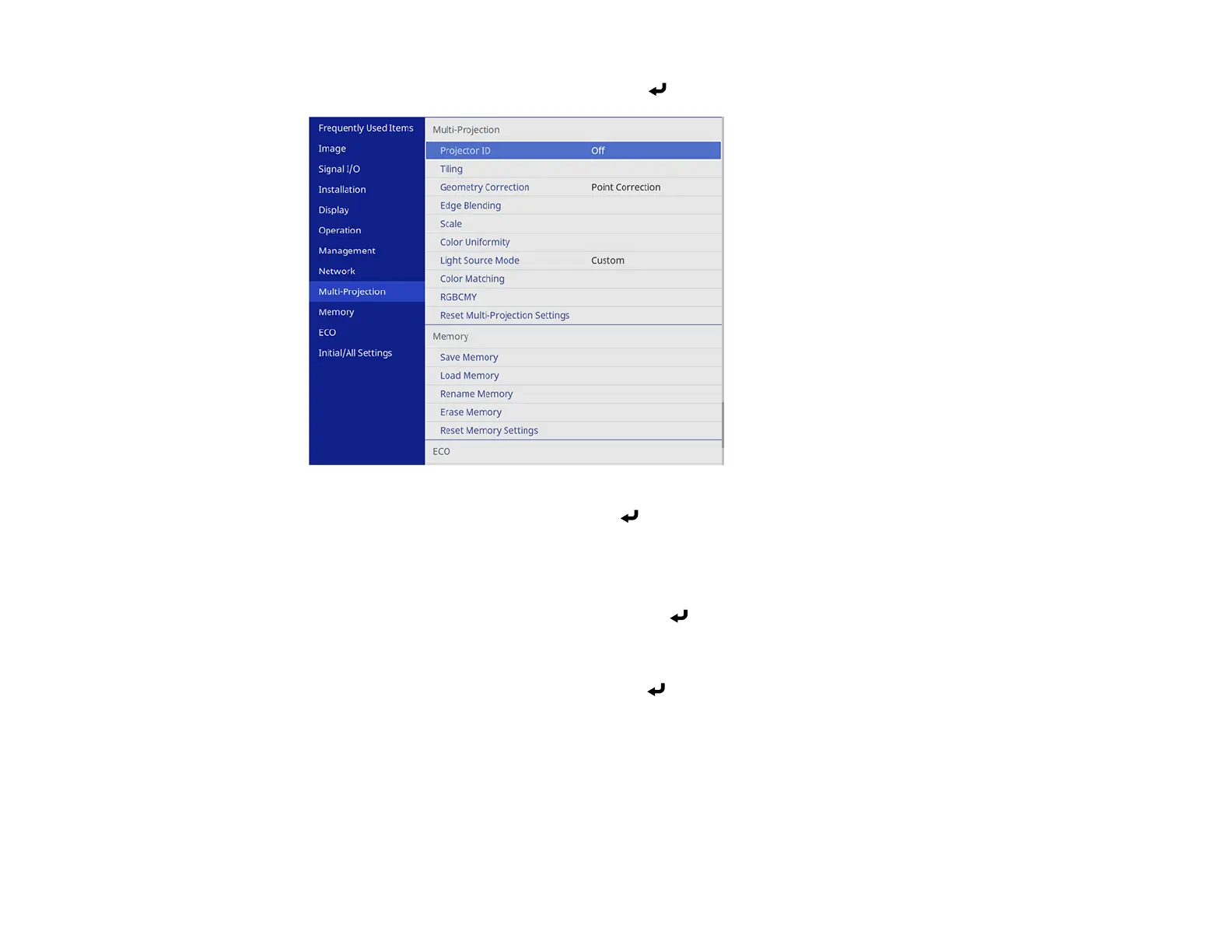

2. Select the Multi-Projection menu and press Enter.
3. Select the Black Level setting and press Enter.
Note: The Black Level setting is displayed only if Edge Blending is enabled and at least one (top,
bottom, left, right) edge is set to On.
4. Select the Color Adjustment setting and press Enter.
You see a screen based on the Top Edge, Bottom Edge, Right Edge, and Left Edge settings you
selected for the Edge Blending setting.
5. Select the area you want to adjust and press Enter.
Note: The area you selected is displayed in orange. Adjust overlapping areas starting with the
brightest areas first. For example, adjust area 2 to match area 1, then adjust area 3 to match area 2.

Epson EB-770F Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	57 - 150 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-3 - 3 °
Focus	Manual
Throw ratio	0.25
Zoom capability	Yes
Fixed focal length	3.7 mm
Light source type	Laser
Service life of light source	- h
Product type	Ultra short throw projector
Product color	White
Market positioning	Education
Cable lock slot type	Kensington
Audio (L/R) in	-
Composite video in	0
Serial interface type	RS-232C
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
RMS rated power	16 W
Number of built-in speakers	1
Analog signal format system	Not supported
Power source	AC
Power consumption (standby)	2 W
Power consumption (typical)	263 W
Display diagonal	0.62 \
Noise level	37 dB
Noise level (economic mode)	27 dB

Weight and Dimensions

Depth	395 mm
Width	357 mm
Height	165 mm
Weight	5900 g
