1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
* EB-972/982W/118, PL 119W
Upper Case (Assy) (p80)
* EB-FH52/992F
WFD Board (p94)

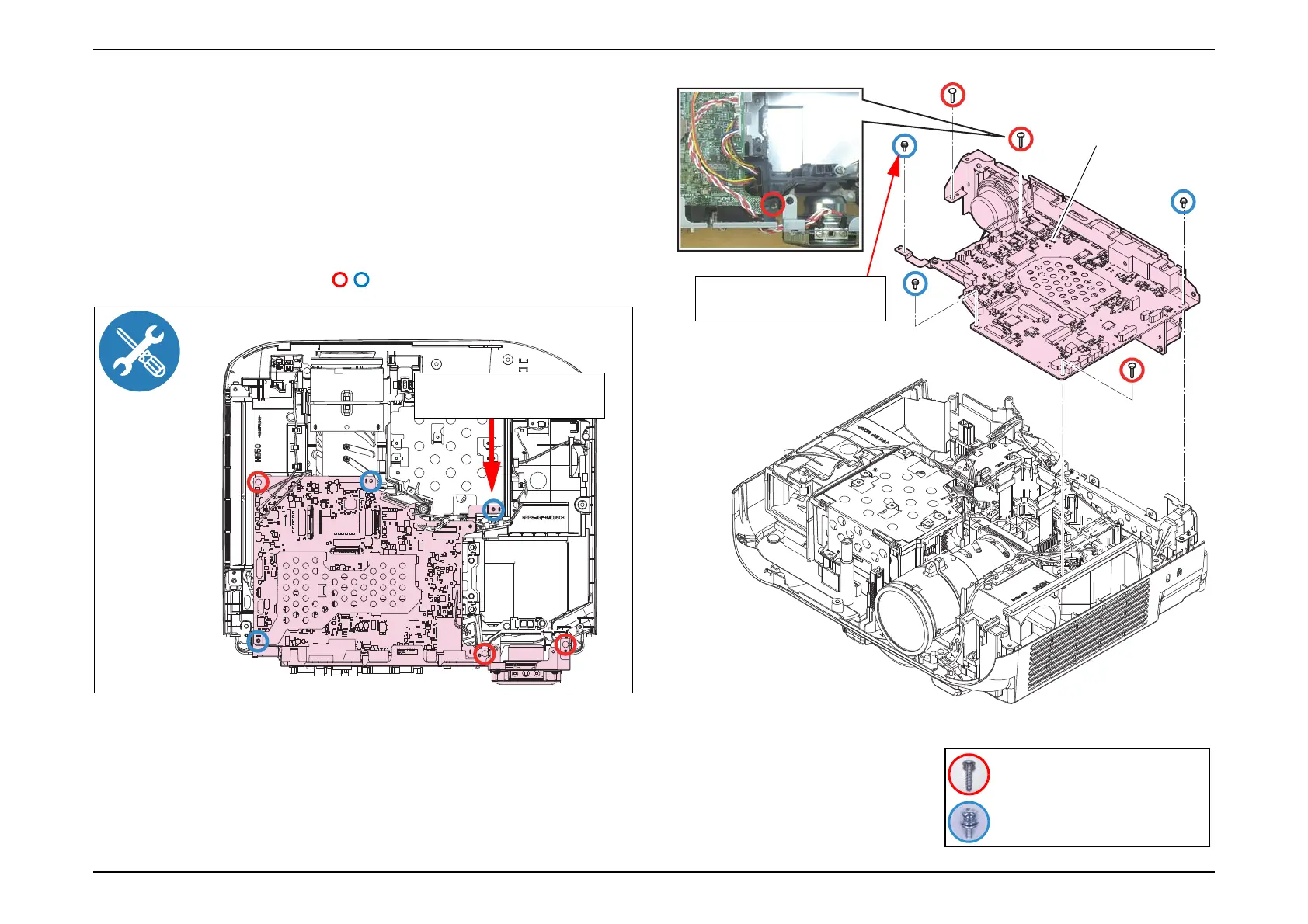

2. Disconnect the connectors from the "MA Board Assy".
3. Remove the five (six) screws ( / ), and remove the "MA Board Assy".
Screws
EB-FH52/99F only:
This screw has been removed
MA Board Assy
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
EB-FH52/99F only:
This screw has been removed
To Next Page
