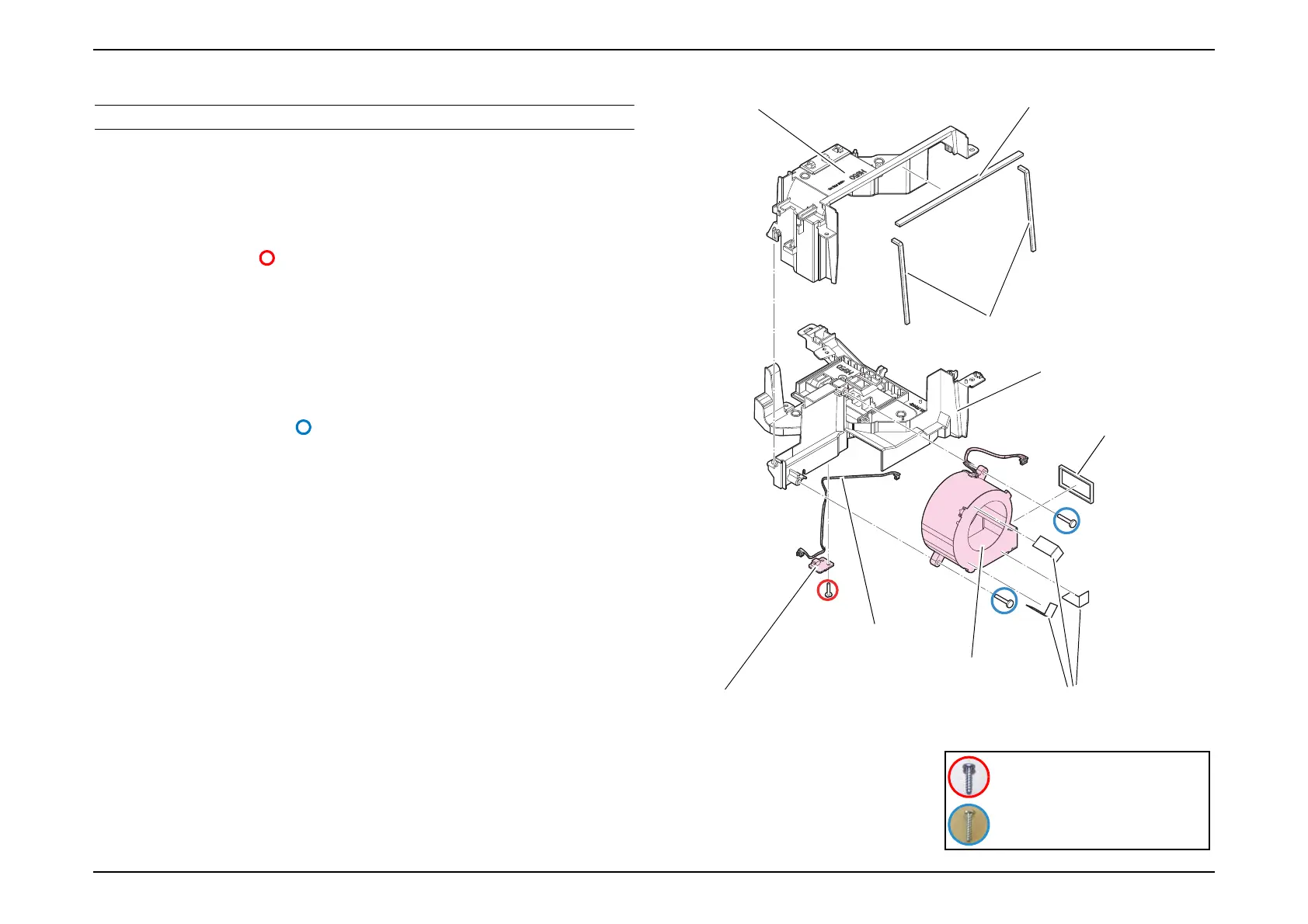

3.3.16.2 INT Fan/TH Board
DISASSEMBLY PROCEDURE
 EB-FH52/972/982W/992F
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
PS Ballast Assy (p122)
2. Remove the screw ( ) and remove the "TH Board" and the "TH Cable
H309".
3. Remove the "INT Duct B".
4. Remove the following parts from the "INT Duct B".
 INT Duct Cushion Seal C
 INT Duct Cushion Seal D x2 pcs
5. Remove the two screws ( ) and remove the "INT Fan".
6. Remove the following parts from the "INT Fan".
 INT Duct Cushion Seal C
 Cable Fasten Tape x3 pcs
INT Duct Cushion Seal D
TH Board
TH Cable H309
INT Duct Cushion Seal C
Cable Fasten Tape
INT Duct B
INT Duct A
INT Fan
INT Duct Cushion Seal C
C.B.P-TITESCREW,3X15,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
