1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
PS Ballast Assy (p122)
2. Remove the screw ( ) and remove the "TH Board" and the "TH Cable
H550".
3. Remove the "INT Duct B".
4. Remove the two screws ( ) and remove the "INT Fan".

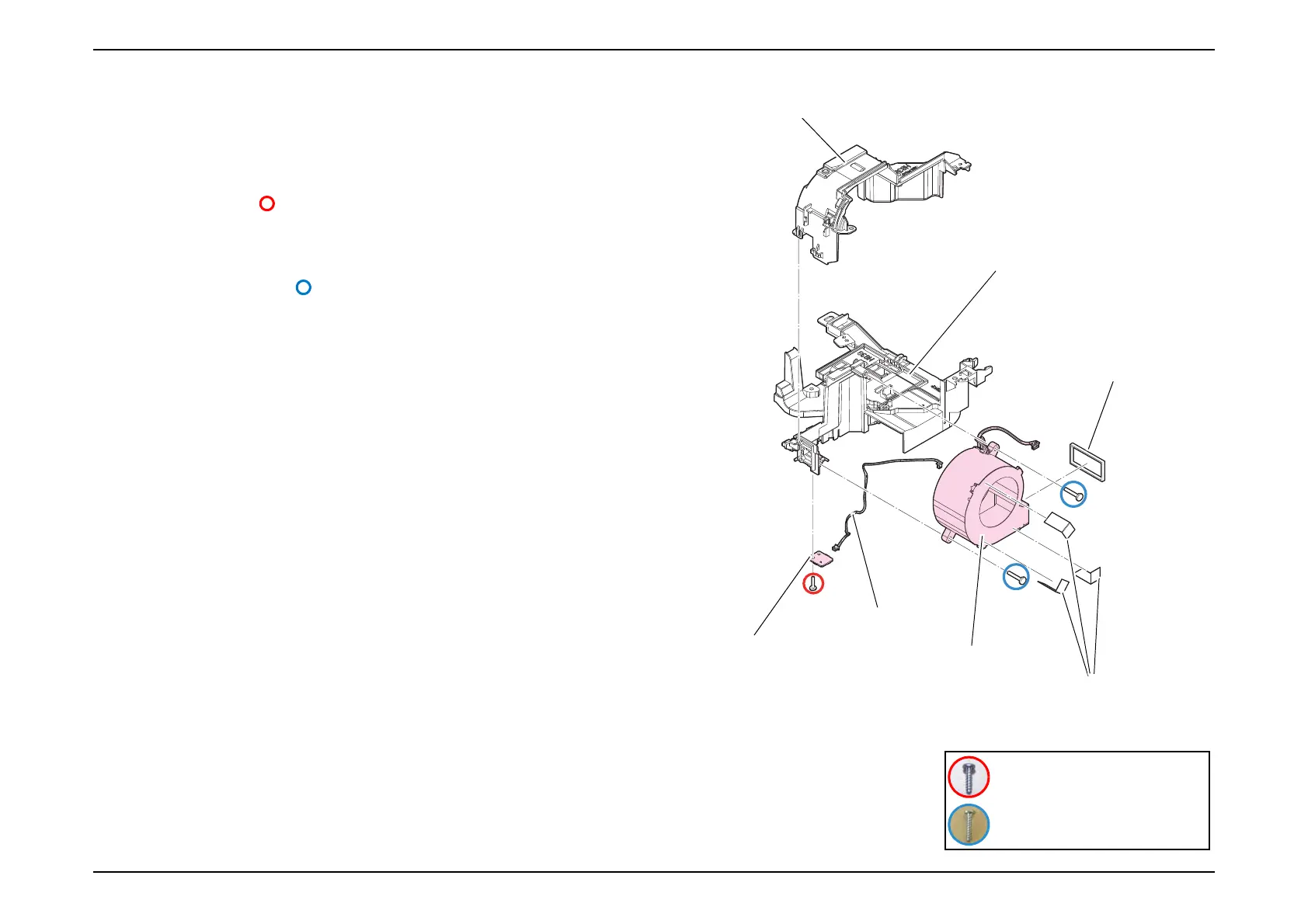

5. Remove the following parts from the "INT Fan".
 INT Duct Cushion Seal C
 Cable Fasten Tape x3 pcs
TH Board
TH Cable H550
Cable Fasten Tape
INT Duct B
INT Duct A
INT Fan
INT Duct Cushion Seal C
C.B.P-TITESCREW,3X15,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
