EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 128 Revision A
3.3.15 P4combo Module
DISASSEMBLY PROCEDURE
EB-FH52/992F/W52, EH-TW750
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
INT Duct (Assy) (p129)

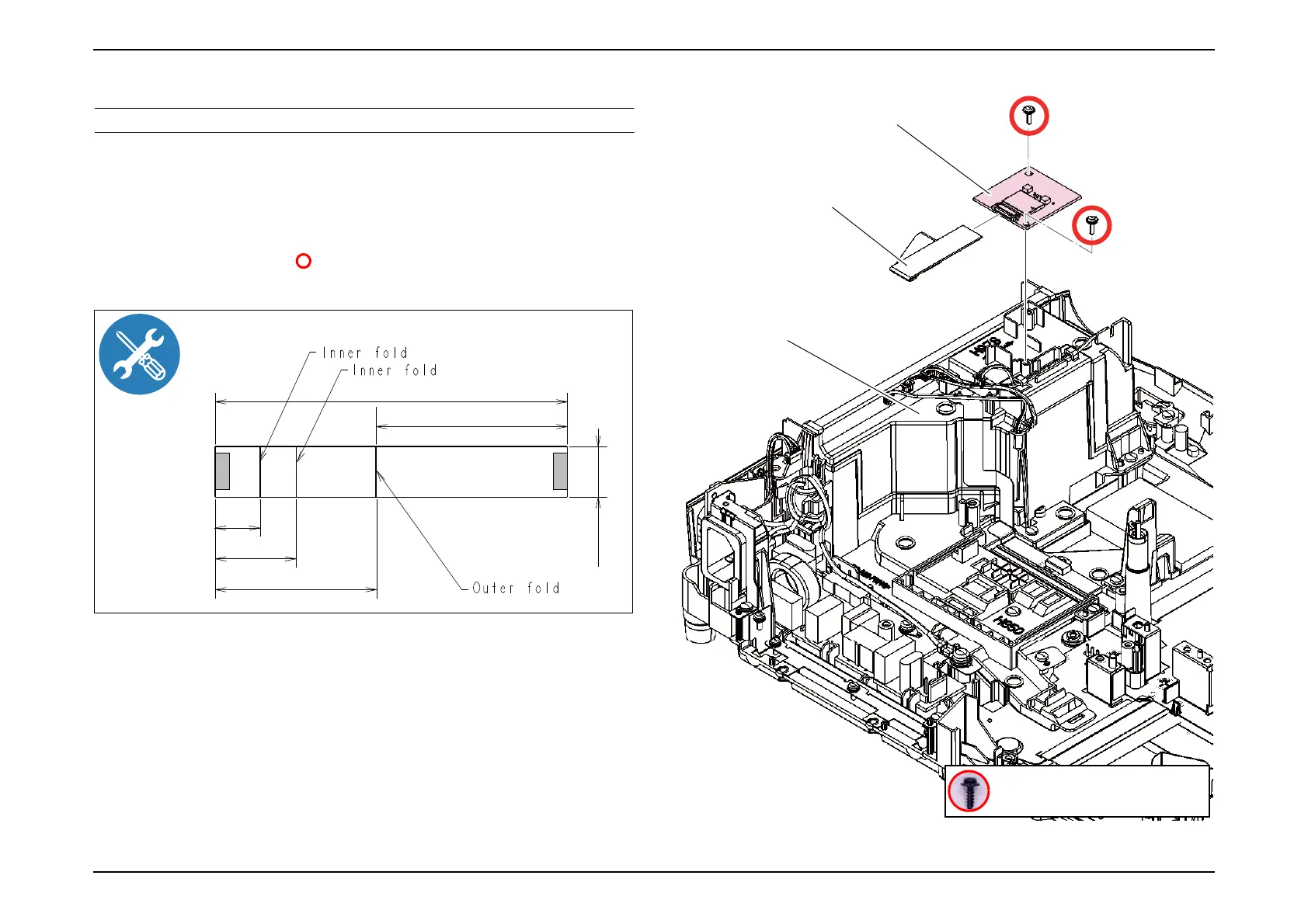

2. Remove the two screws ( ) and remove the "P4combo Module" and the
"FFC 15P".
Fold the "FFC 15P" as shown in this figure.
‚‧‛
…‧
…•
‣
‣•
‚‣•‛
INT Duct (Assy)
P4combo Module
FFC 15P
C.C.P-TITE SCREW,2X6.5,F/ZB-3C
To Next Page
