EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 116 Revision A

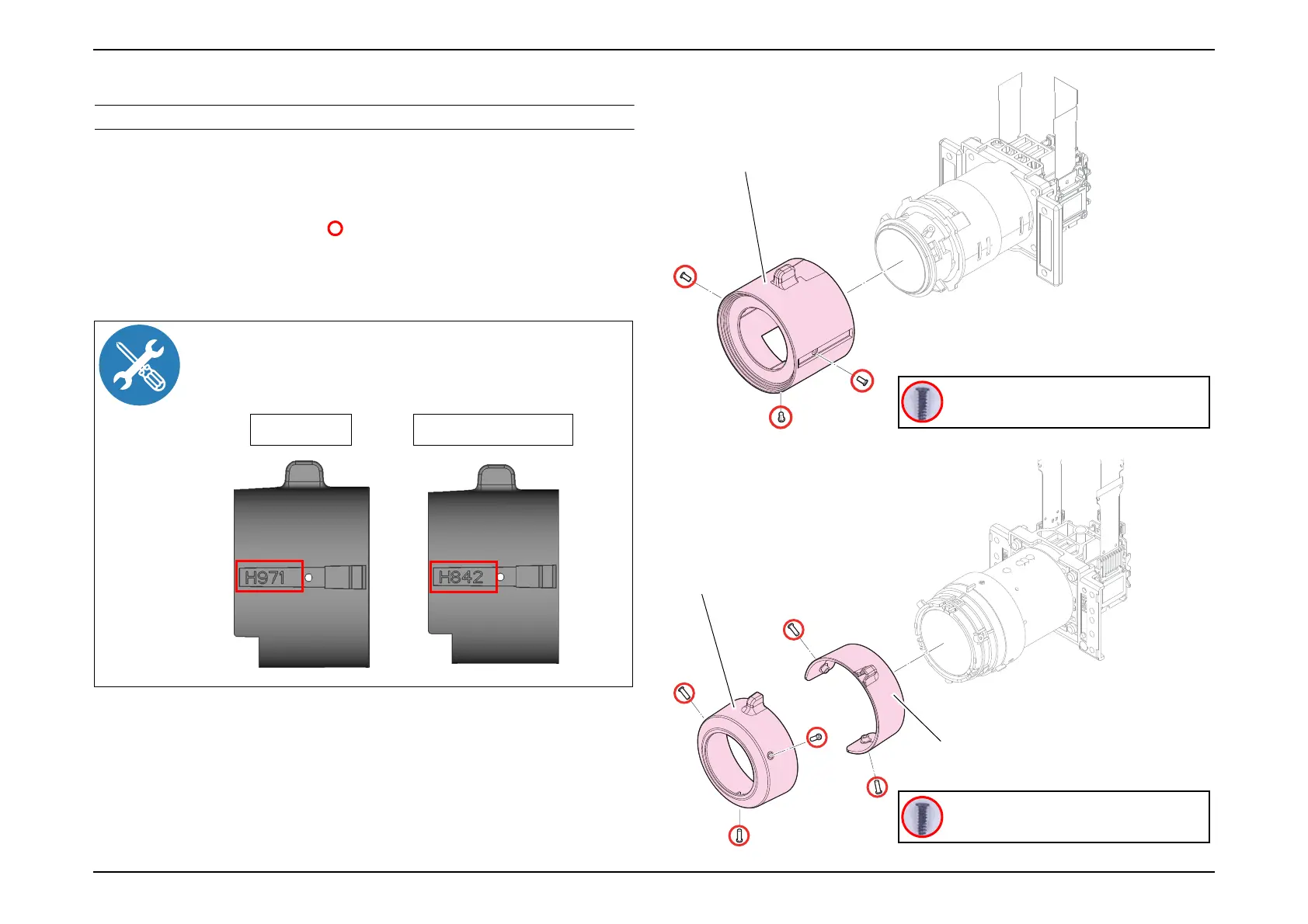

3.3.11.2 Focus Ring/Zoom Ring
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Optical Engine (Assy) (p113)
2. Remove three to five screws ( ) and remove the "Focus Ring" and the
"Zoom Ring".
* Numbers of screws and types of rings to be removed depend on the
model. See the figures.
The shape of the FOCUS RING of EH-TW740 differs for
EB-E01/E10/E20. Check the engraved seal before
attaching.
Focus Ring
EB-E01/E10/E20, EH-TW740
EB-X06/W06/FH06/X51/W51/X49/W49/W52/118, PL 119W
Zoom Ring
Focus Ring
C.P.TYPE1 B-TITET-A.SCREW,2X6,F/ZB-3C
C.P.TYPE1 B-TITET-A.SCREW,2X6,F/ZB-3C
To Next Page
