Epson EB-E10 Service Manual

EB-E01 series Product Description INTERNAL USE ONLY
SEIKO EPSON 11 Revision A
1.1 Product Description
This projector comes with this special features. Refer to these sections for more
details.
 Quick and Easy Setup
 Direct Power On feature to turn on the projector as soon as you plug it
in.
 Auto Power On feature to turn on the projector when the projector
detects an image signal from the port you specified as the Auto Power
On source.
 Home screen feature to easily select an input source and useful
functions.
 Automatic vertical keystone correction always displays a rectangular
screen (Auto V-Keystone).
 Horizontal correction slider to quickly correct the lateral strain of the
projected image. Sliding horizontal correction is convenient when the
projector cannot be parallel to the screen.
(Except EB-E01/E10)
 Easy Wireless Projection (EB-FH52/992F EH-TW750 only)
 Screen Mirroring allows a wireless connection between the projector
and a mobile device compatible with Miracast.
 Epson iProjection (Windows/Mac) to project up to four images at the
same time by splitting the projected screen. You can project images
from computers on the network, or from smartphones or tablet devices.
 Flexible Connectivity
 This projector can be connected to computers, video equipment,
smartphones, tablet terminals, and other devices.
 Slide Show Function (except EB-E01/E10)
 The images in a USB storage can be projected without using a
computer
 Equipped with USB terminal (Type A)
 Enhanced security functions
 Operation button lock function
 Security cable installation
 Remote password
 Sliding Lens Cover for Easy Projection And Storage
(other than EB-E01/E10)
 No cool-down period is needed.
 Auto Iris

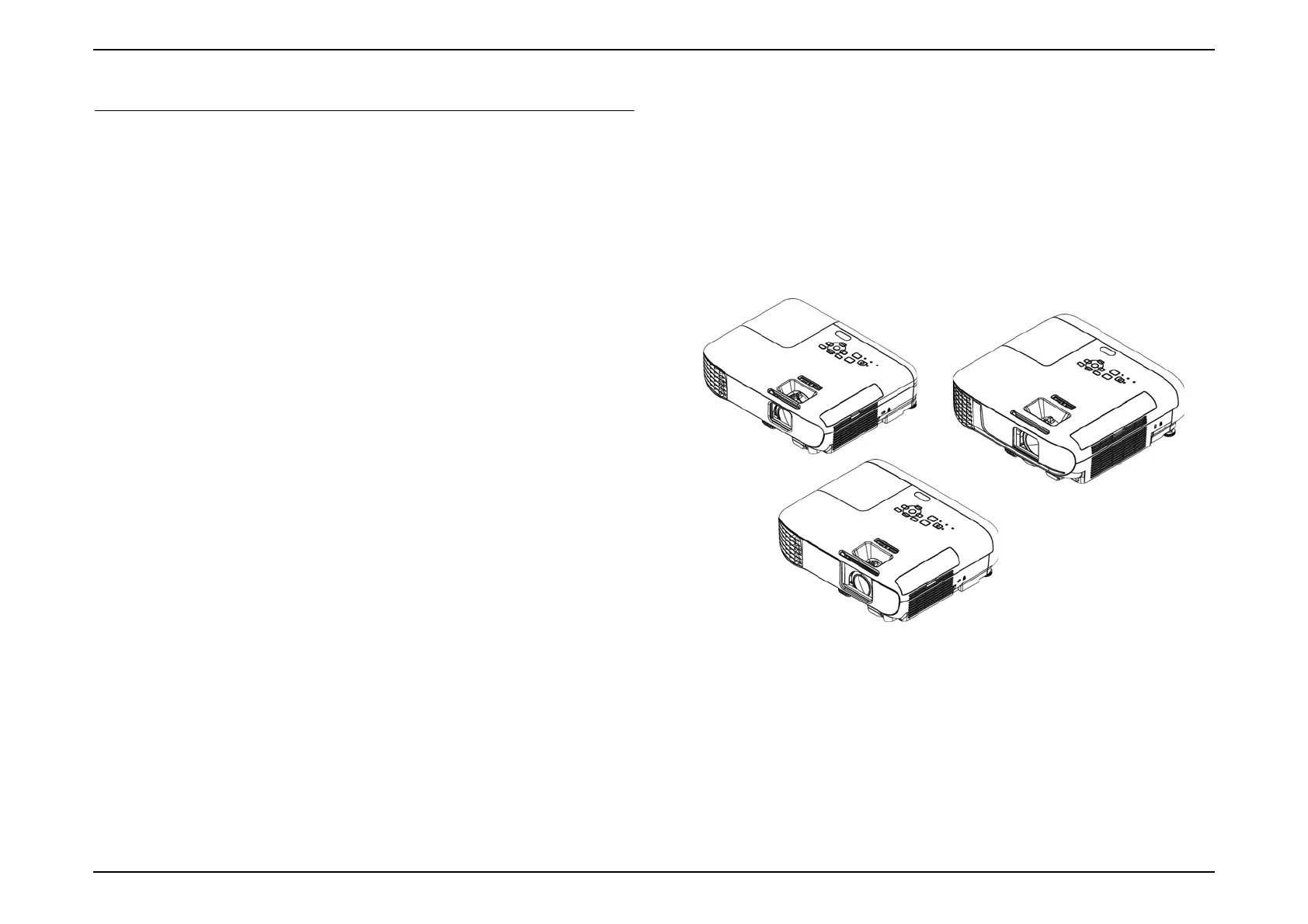

External View

Epson EB-E10 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	0 - 1.76 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	22 - 350 \
Projection distance (wide)	0.87 - 10.34 m
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2200 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.44 - 1.95:1
Fixed focal length	16.7 mm
Full HD	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
AC (power) in	Yes
Composite video in	0
HDMI connector type	Full-size
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
RMS rated power	2 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Housing material	Plastic
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Bundled software	Inhalt DIY-App, Epson Projektor Management, Epson Projektor Professional Tool
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
USB display function	2 in 1: Image / Mouse

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	376 mm
Package width	327 mm
Package height	152 mm
Package weight	3716 g
