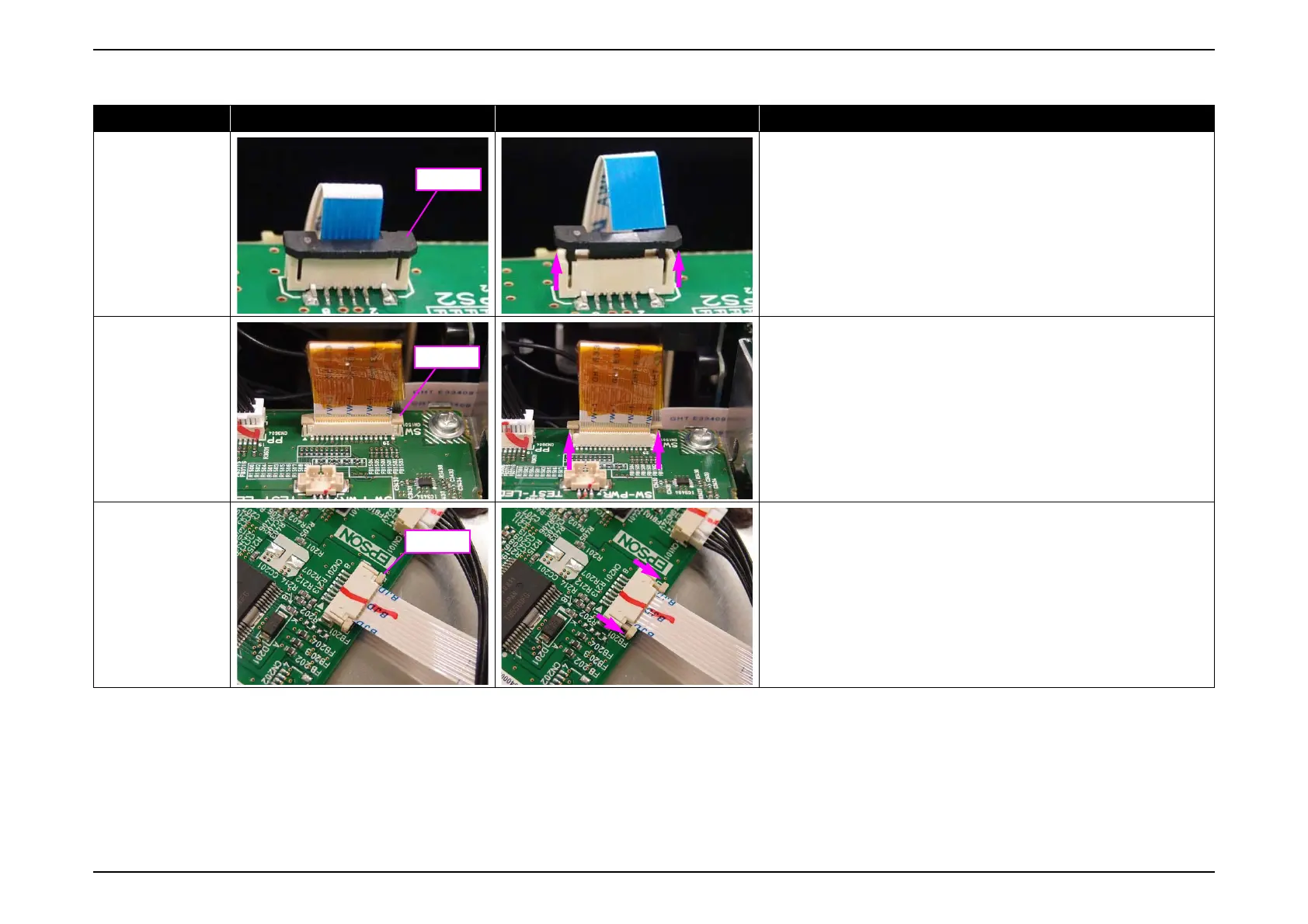

3.1.5 How to unlock connectors for FFC/FPC
Type Locked Unlocked How to unlock connectors
Slide-open type
(upward) #1
Slide the lock (black) upward to the FFC to unlock it.
Slide-open type
(upward) #2
Slide the lock (light brown) upward to the FFC to unlock it.
Slide-open type
(toward FFC)
Slide the lock (ivory) toward the FFC to unlock it.
