EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 115 Revision A

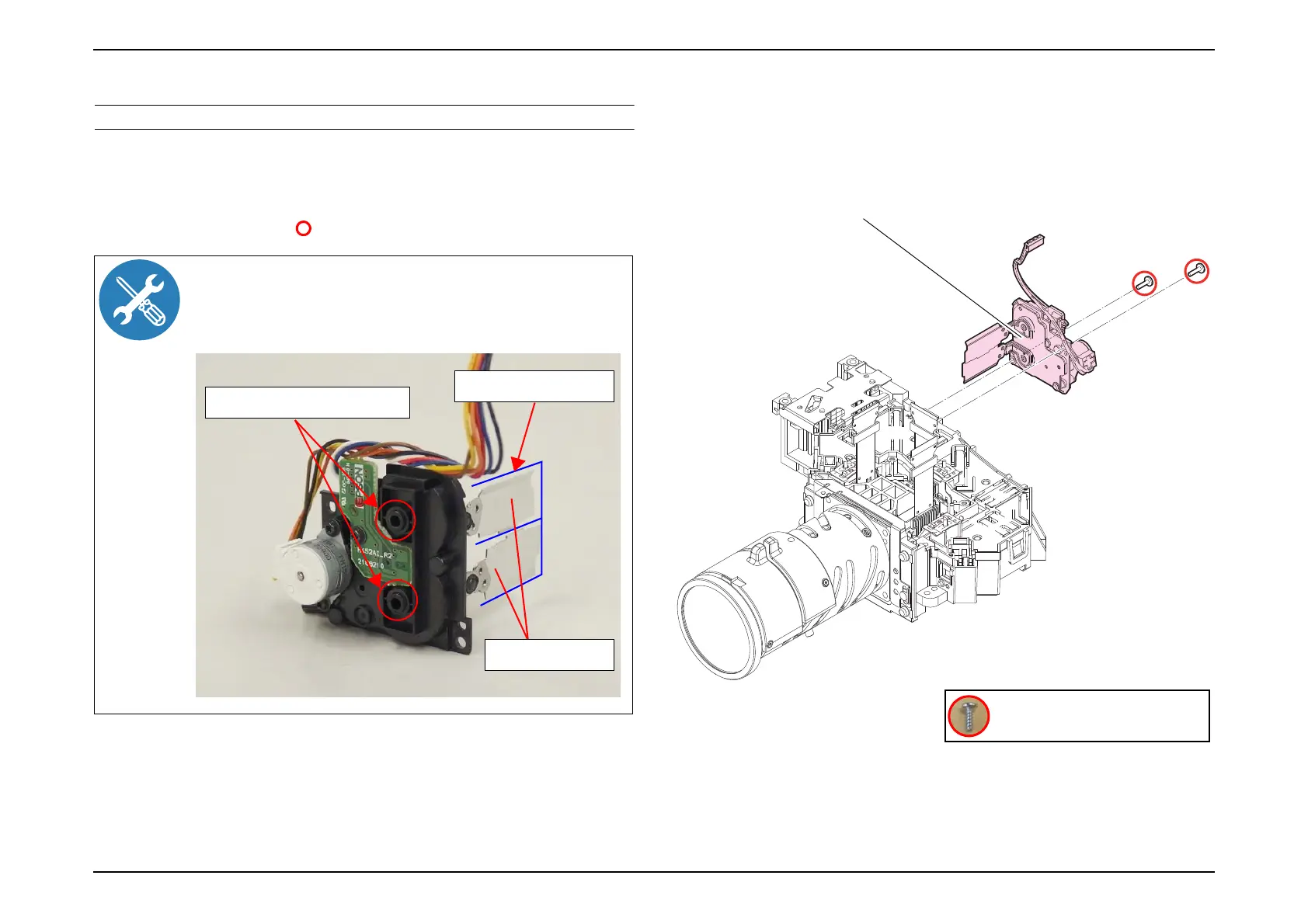

3.3.11.1 Auto Iris Assy
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Optical Engine (Assy) (p113)
2. Remove the two screws ( ) and remove the "Auto Iris Assy".
Before attaching or removing the "Auto Iris Assy", move
the Auto Iris Blades to the home position by inserting a
Phillips screw driver (No0) into the holes shown in the
figure below.
Screwdriver insertion positions
Home position
Auto Iris Blades
Auto Iris Assy
C.B.P-TITE SCREW,2.5X8,F/ZN-3C
To Next Page
