EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 96 Revision A

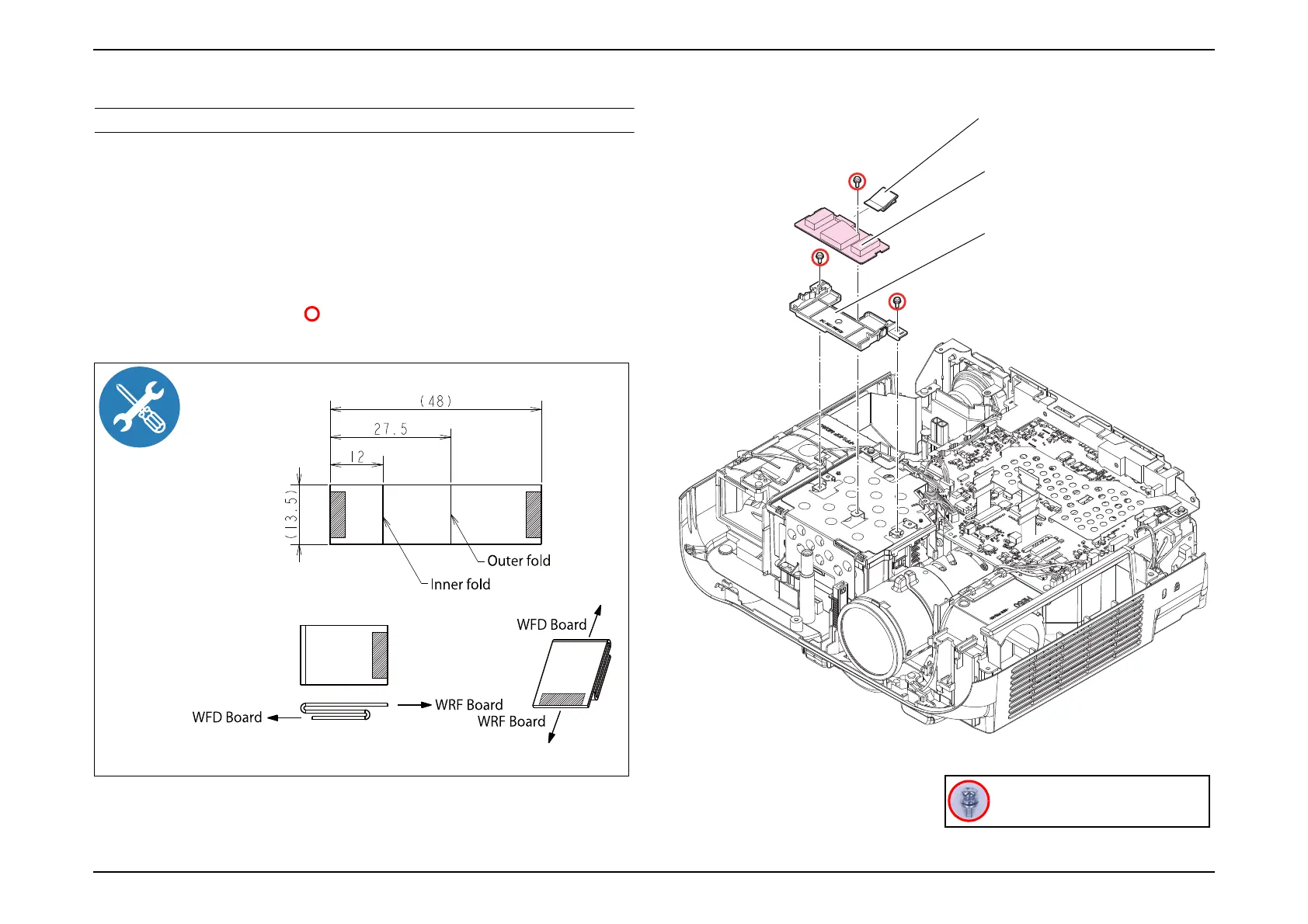

3.3.8 P3dash Module
DISASSEMBLY PROCEDURE
EB-FH52/992F, EH-TW750
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Upper Case (Assy) (p80)
2. Remove the "FFC WFD-WRF" from the connectors on both ends.
(See How to unlock connectors for FFC/FPC (p67))
3. Remove the three screws ( ) and remove the "P3dash Module" and the
"WRF Holder".
Fold the "FFC WFD-WRF" as shown in this figure.
WRF Holder
P3dash Module
FFC WFD-WRF
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C
To Next Page
