Epson EB-E10 Service Manual

EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 161 Revision A
3.7 G Sensor Calibration
3.7.1 Overview
The G Sensor is mounted on the MA Board to detect the inclination of the
projector. To compensate the variation of the accuracy of the G Sensor
detection among the products, perform this calibration after replacing and/or
reassembling any parts which require the replacement of the MA board at the
same time.
(Not compatible with EB-E01/E10/E20, EH-TW740)
3.7.2 Preparation
1. Be sure that all feet of the projector for which you perform this
calibration are completely retracted.
2. Place the projector on an even and stable place such as on the top of a
table.
3.7.3 Procedure
1. Connect the power cable and then press the [Power] button.
2. Check if the Power LED flashes blue, then lights blue.

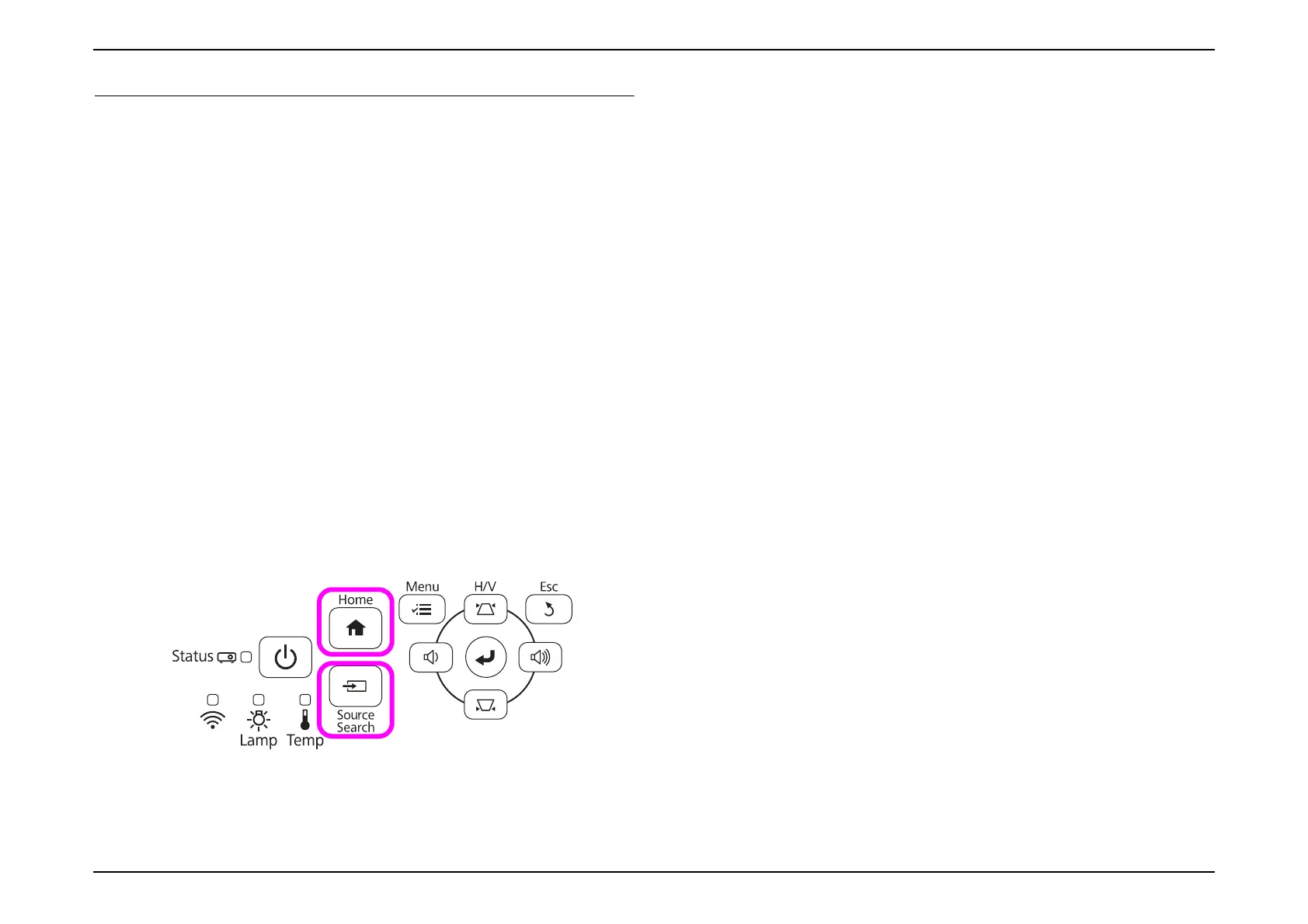

3. After the LED lights up, long-press the [Home] button and the [Source
Search] button together for five seconds or more.
4. When the buzzer sounds, calibration is completed.
5. Confirm that the keystone function does not work when all feet are
retracted. (menu value: 0)

Epson EB-E10 Specifications

General

Matrix size	0.55 \
Number of colors	1.07 billion colors
Native aspect ratio	4:3
Projection distance	0 - 1.76 m
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	15000:1
Screen size compatibility	22 - 350 \
Projection distance (wide)	0.87 - 10.34 m
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30 - 30 °
Projector brightness (economic mode)	2200 ANSI lumens
Lamp type	UHE
Lamp power	210 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	6000 h
Service life of light source (economic mode)	12000 h
Focus	Manual
Throw ratio	1.44 - 1.95:1
Fixed focal length	16.7 mm
Full HD	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
Analog signal format system	-
AC (power) in	Yes
Composite video in	0
HDMI connector type	Full-size
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	37 dB
Country of origin	Philippines
Noise level (economic mode)	28 dB
RMS rated power	2 W
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Housing material	Plastic
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	327 W
Power consumption (economy mode)	225 W
Bundled software	Inhalt DIY-App, Epson Projektor Management, Epson Projektor Professional Tool
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	84 pc(s)
Quantity per pallet (UK)	126 pc(s)
Harmonized System (HS) code	85286200
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
USB display function	2 in 1: Image / Mouse

Weight and Dimensions

Depth	237 mm
Width	302 mm
Height	82 mm
Weight	2400 g
Package depth	376 mm
Package width	327 mm
Package height	152 mm
Package weight	3716 g
