EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 89 Revision A

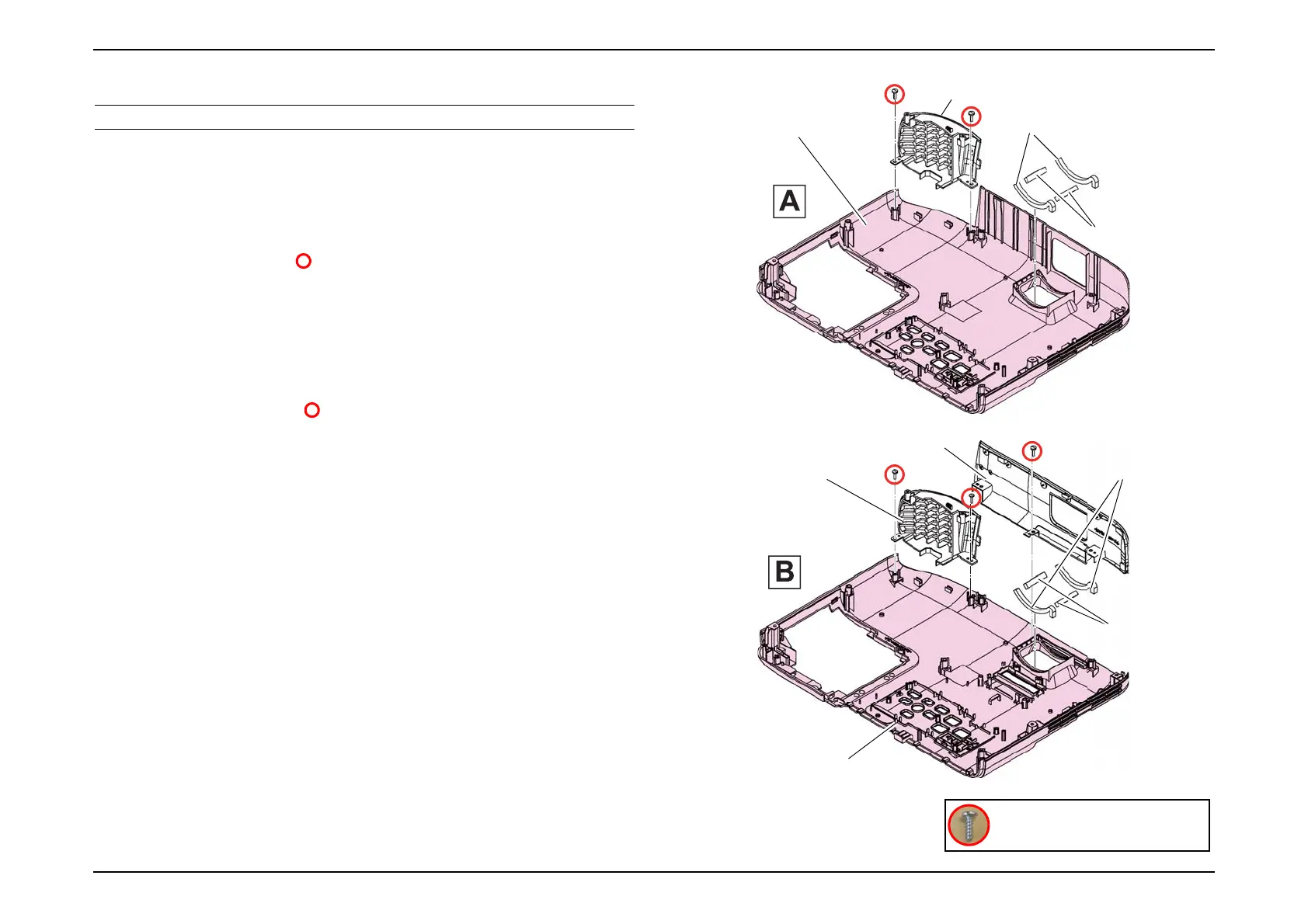

3.3.6.4 Upper Case
DISASSEMBLY PROCEDURE
See Flowchart (p70) and remove all parts up to the component below from the
projector.
Shutter (p87)
 A: EB-E01/X06/W06/E10
1. Remove the two screws ( ) and remove the "EX Case".
2. Remove the following parts from the "Upper Case".
 Upper Cushion A x2 pcs
 Upper Cushion B x2 pcs
 B: EB-X51/W51
1. Remove the three screws ( ) and remove the "Front Case" and the "EX
Case".
2. Remove the following parts from the "Upper Case".
 Upper Cushion A x2 pcs
 Upper Cushion B x2 pcs
EX Case
Upper Case
Upper Cushion A
Upper Cushion B
Front Case
Upper Case
EX Case
Upper Cushion A
Upper Cushion B
C.B.P-TITE SCREW,2.5X8,F/ZN-3C
