EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 86 Revision A

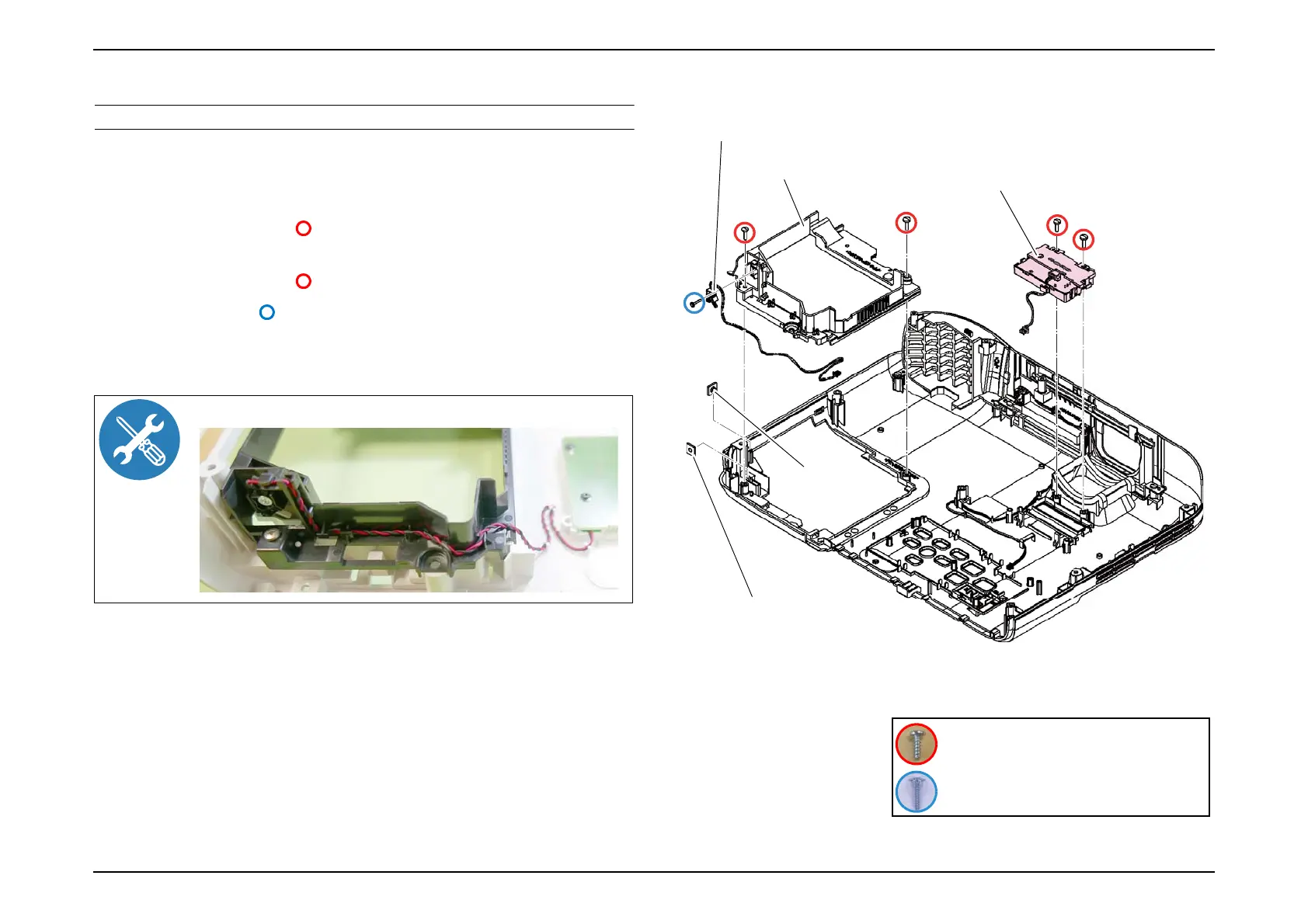

3.3.6.2 H Key Assy/Upper Case
DISASSEMBLY PROCEDURE
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Upper Case (Assy) (p80)
2. Remove the two screws ( ) and remove the "H Key Assy".
(This procedure is not applicable to EB-E01/E10.)
3. Remove the two screws ( ) and remove the "Upper Case Cover".
4. Remove the screw ( ) and remove the "Lid Lamp Switch".
5. Remove the following parts:
Nut Plate M3 x1 (2 pcs)
Route the "Lid Lamp Switch" cable as shown in the figure.
Lid Lamp Switch
Nut Plate M3
H Key Assy
Upper Case
Nut Plate M3
(EB-E01/X06/W06/E10/X51/W51)
C.P.F.TYPE1 P-TITE SCREW,1.6X8,F/ZN-3C
C.B.P-TITE SCREW,2.5X8,F/ZN-3C
To Next Page
