EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 85 Revision A

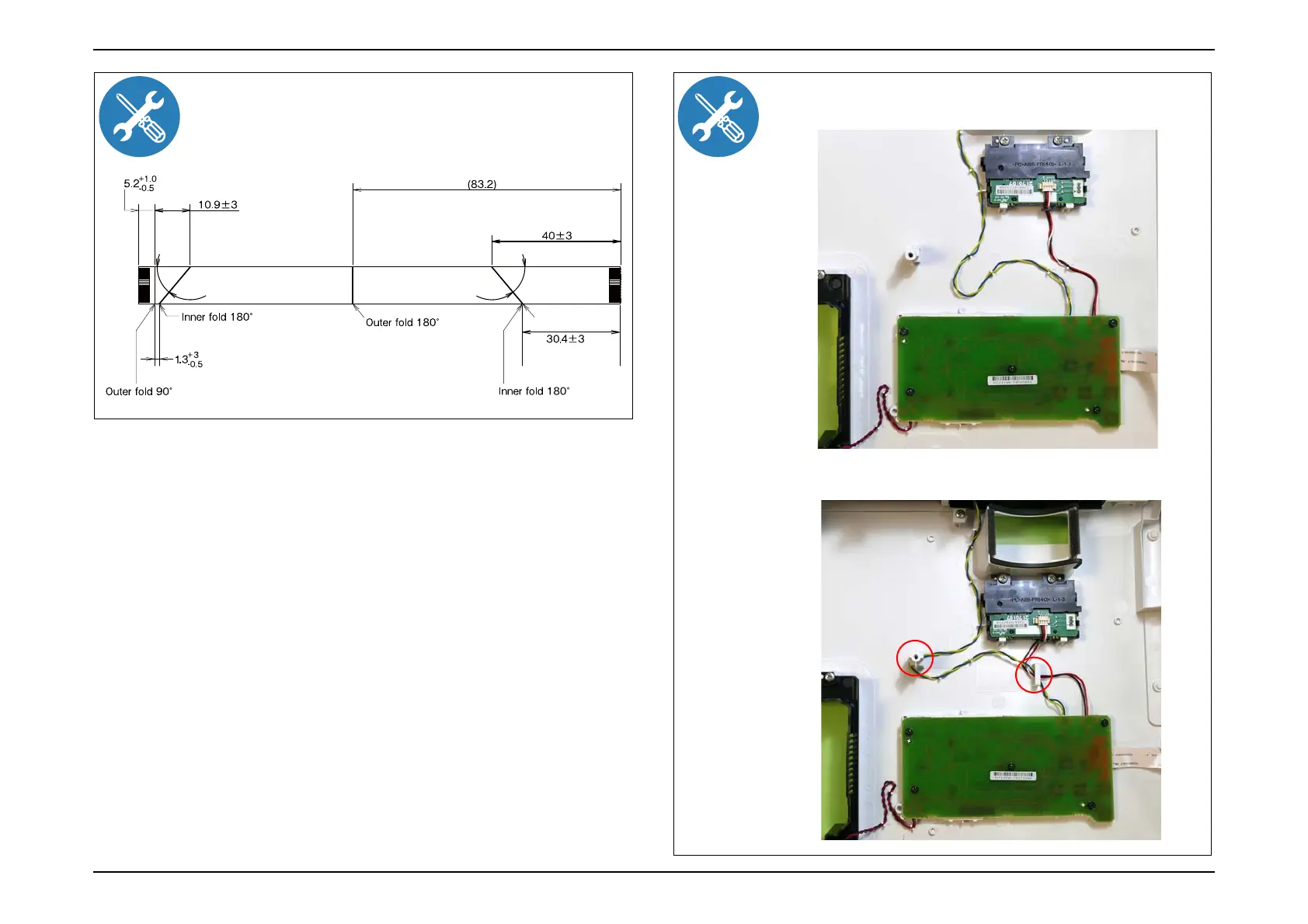

Fold the "SW Cable" as shown in this figure.
50°±5°
50°±5°
Route the cable connected to the SW Board as shown in this figure.
 EB-FH52/972/982W/992F
 EB-X06/W06/FH06/X51/W51/W52/E20/X49/W49/118,
PL 119W, EH-TW740/TW750
