EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 94 Revision A

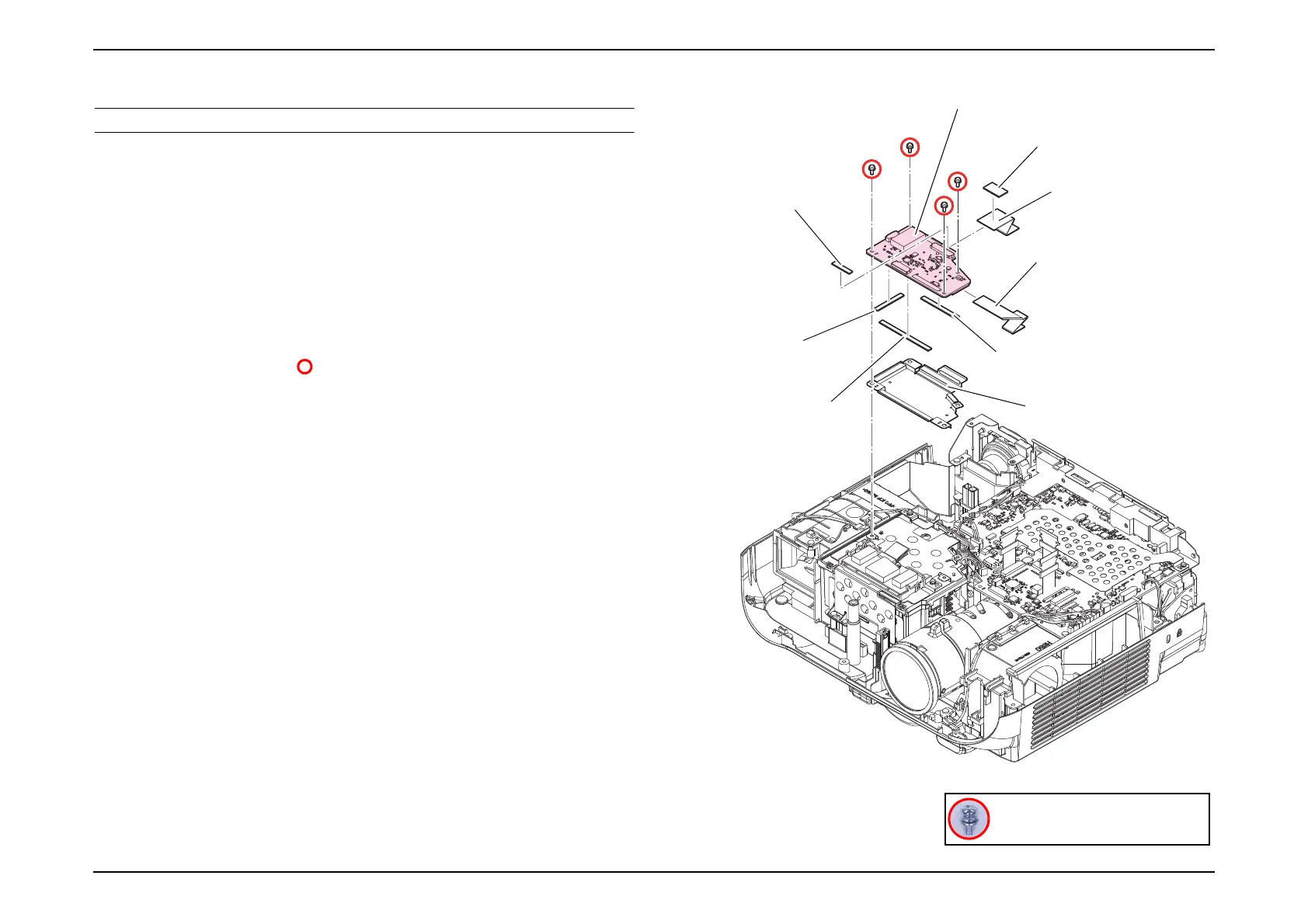

3.3.7 WFD Board
DISASSEMBLY PROCEDURE
EB-FH52/992F, EH-TW750
1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Upper Case (Assy) (p80)
2. Remove the "FFC 30P" and the "FFC WFD-MA" from the connector.
(See How to unlock connectors for FFC/FPC (p67))
3. Remove the "M-CUSHION H1W10L17" and the "M-CUSHION
H1W4L19".
4. Remove the four screws ( ) and remove the "WFD Board" and the "WFD
Shield Plate".
5. Remove the following parts:
M-CUSHION H1W3L29
M-CUSHION H1W3L39
M-CUSHION H1W3L54
M-CUSHION H1W4L19
M-CUSHION H1W3L54
WFD Board
M-CUSHION H1W10L17
M-CUSHION H1W3L29
WFD Shield Plate
FFC WFD-MA
FFC 30P
M-CUSHION H1W3L39
C.P.(S-P1)SCREW,2.5X6,F/ZN-3C
To Next Page
