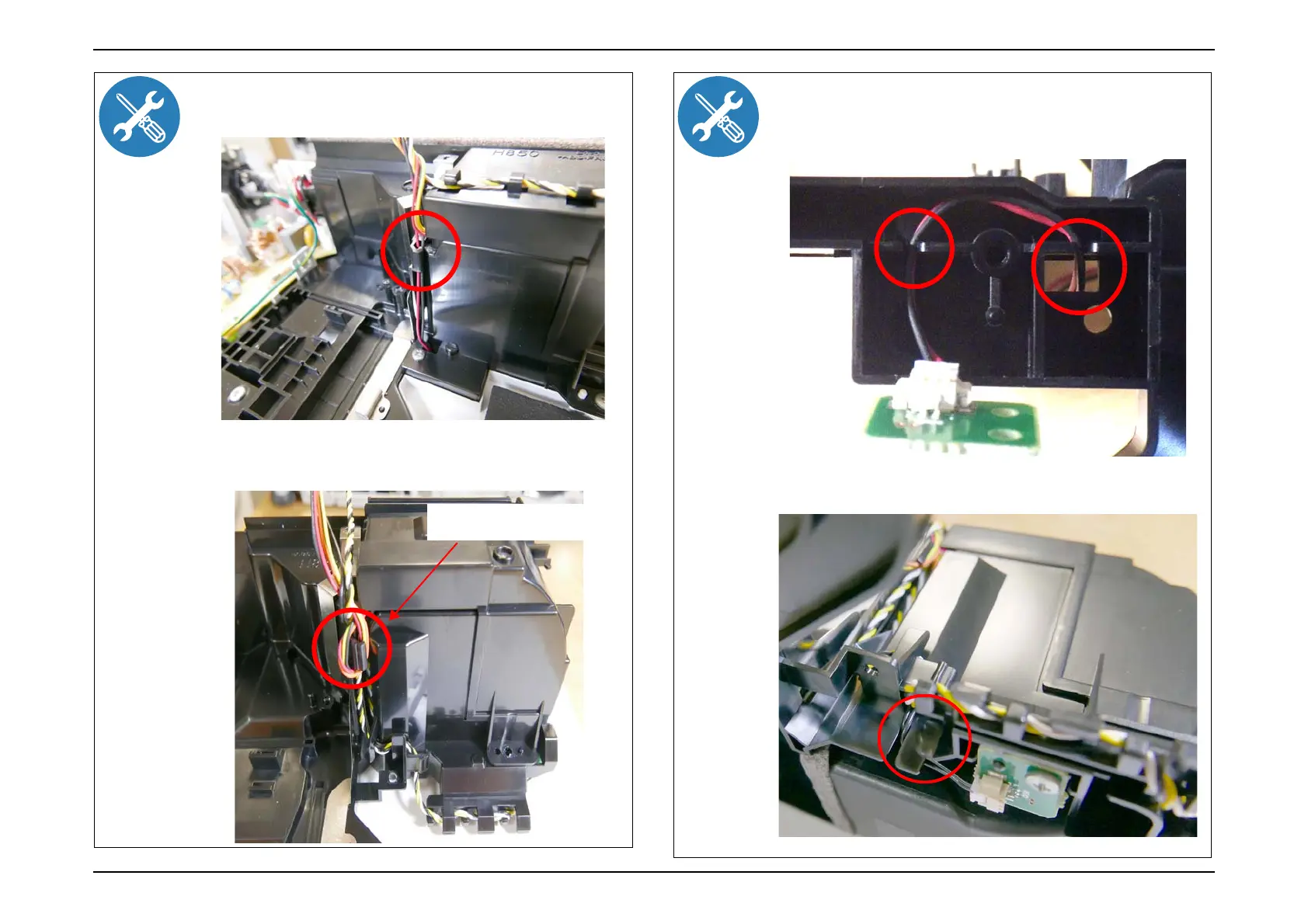

Route the cable as shown below.
EB-FH52/972/982W/992F
EB-E01/X06/W06/FH06/E10/X51/W51/W52/E20/X49/
W49/118, PL 119W, EH-TW740/TW750
Wind the fan cable from the
outside.
Route the cable of the TH Board as shown in the figure
below.
EB-FH52/972/982W/992F
EB-E01/X06/W06/FH06/E10/X51/W51/W52/E20/X49/
W49/118, PL 119W, EH-TW740/TW750
To Next Page
