EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 125 Revision A
 EB-FH06/FH52/E20/X49/W49/972/982W/992F/118, PL 119W/,
EH-TW740/TW750

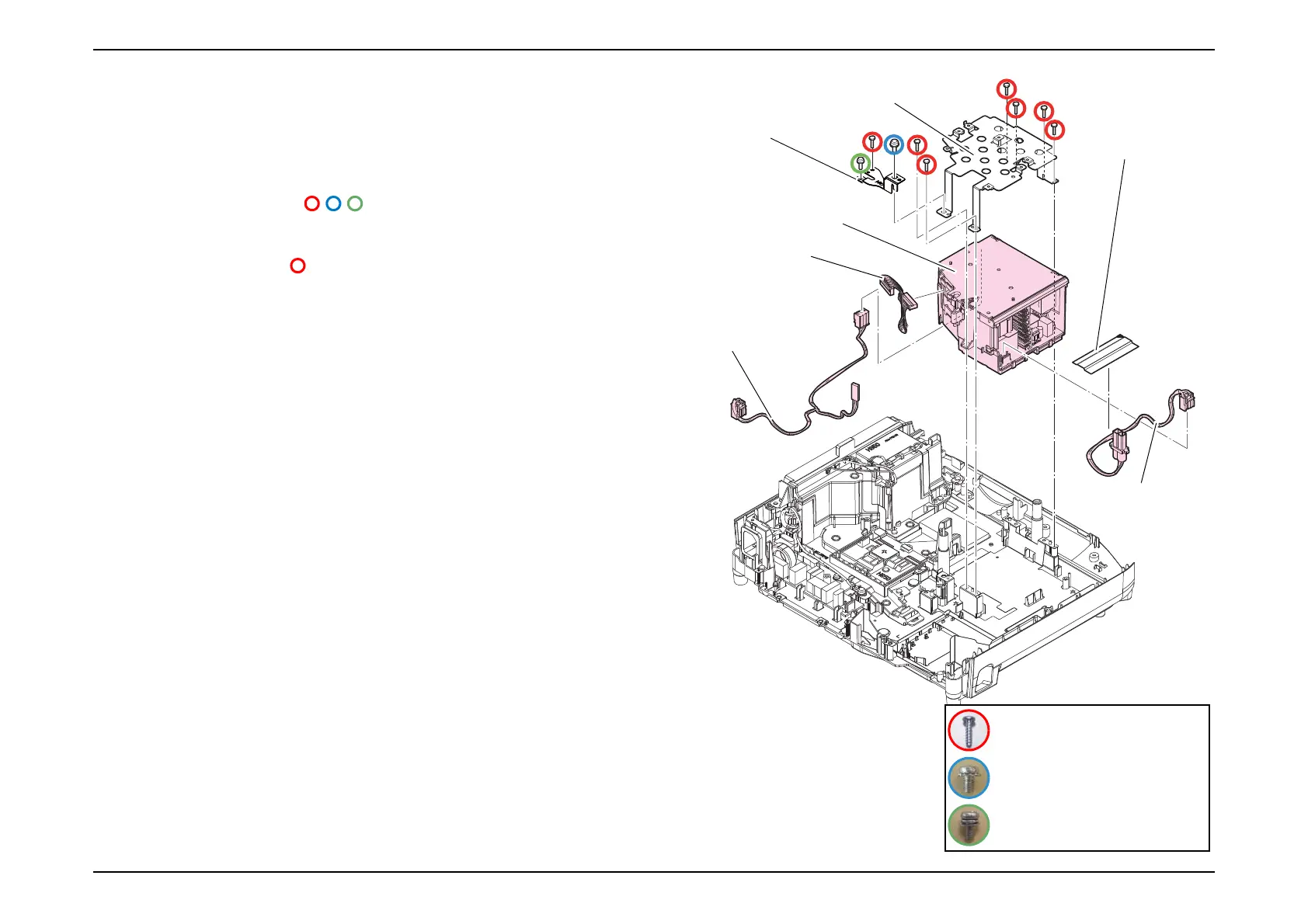

1. See Flowchart (p70) and remove all parts up to the component below from
the projector.
Lamp Fan (Assy) (p120)
2. Remove the three screws ( / / ) and remove the "Fasten Nut Plate".
3. Remove the "Lower Sheet".
4. Remove the six screws ( ) and remove the "PS Shield Plate" and the "PS
Ballast Assy".
5. Remove the following parts from the "PS Ballast Assy".
 Cable PS-MA
 Cable PS-FB
 Cable BA-Lamp
PS Ballast Assy
Lower Sheet
PS Shield Plate
Cable PS-MA
Cable PS-FB
Cable BA-Lamp
Fasten Nut Plate
C.P.(S-P1)SCREW,3X5,F/ZN-3C
C.P.(O)SCREW,4X6,F/NI
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
