EB-E01 series Disassembly and Assembly INTERNAL USE ONLY
SEIKO EPSON 130 Revision A

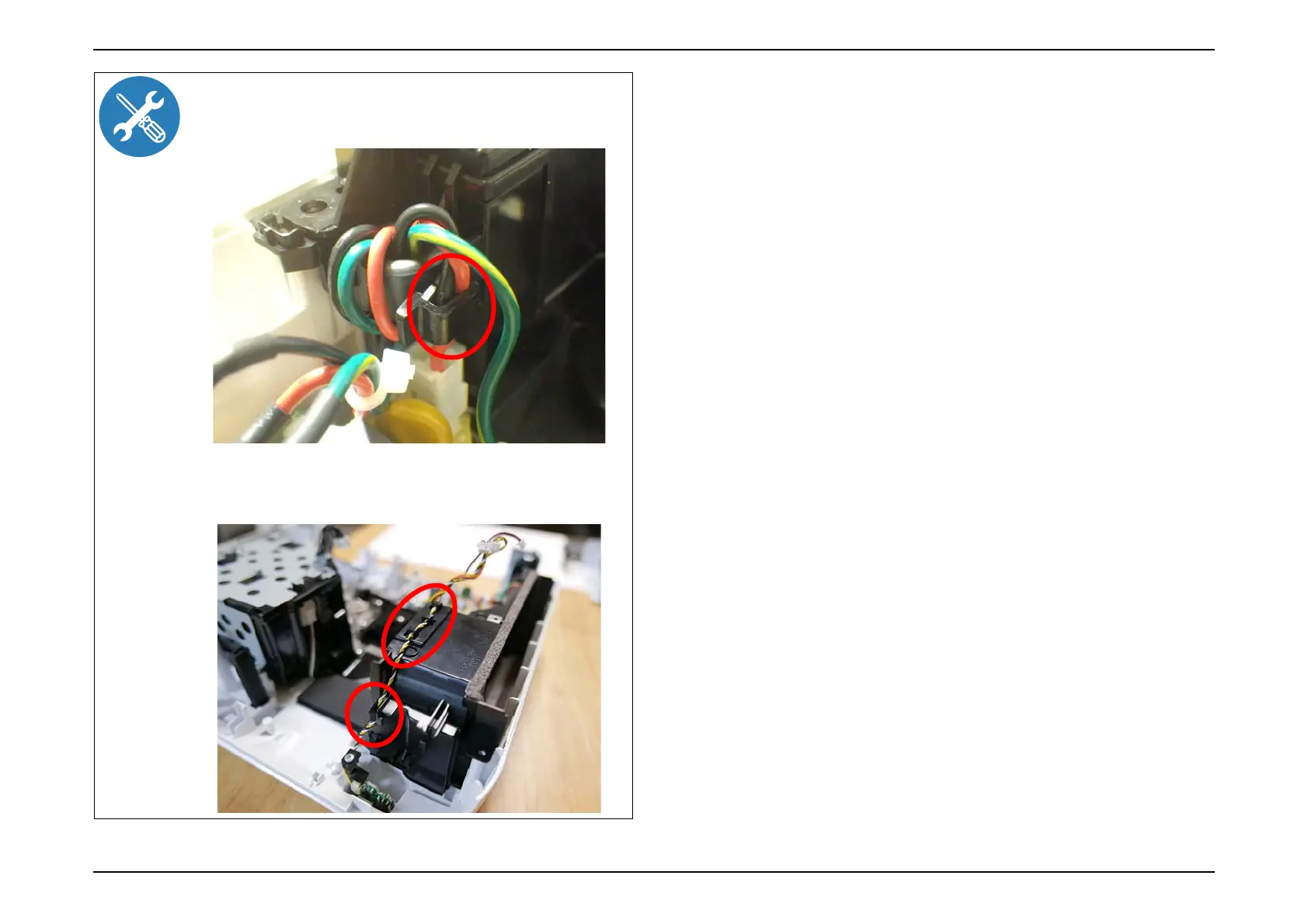

Attach the ferrite core of the "Inlet Cable" as shown in the
figure below. Pass the cables from the connector through
the hook.
EB-FH52/972/982W/992F
Route the "RCF Cable" connected to the "IR Board" on
the INT Duct as shown in the figure below.
To Next Page
