EB-E01 series Troubleshooting INTERNAL USE ONLY
SEIKO EPSON 54 Revision A

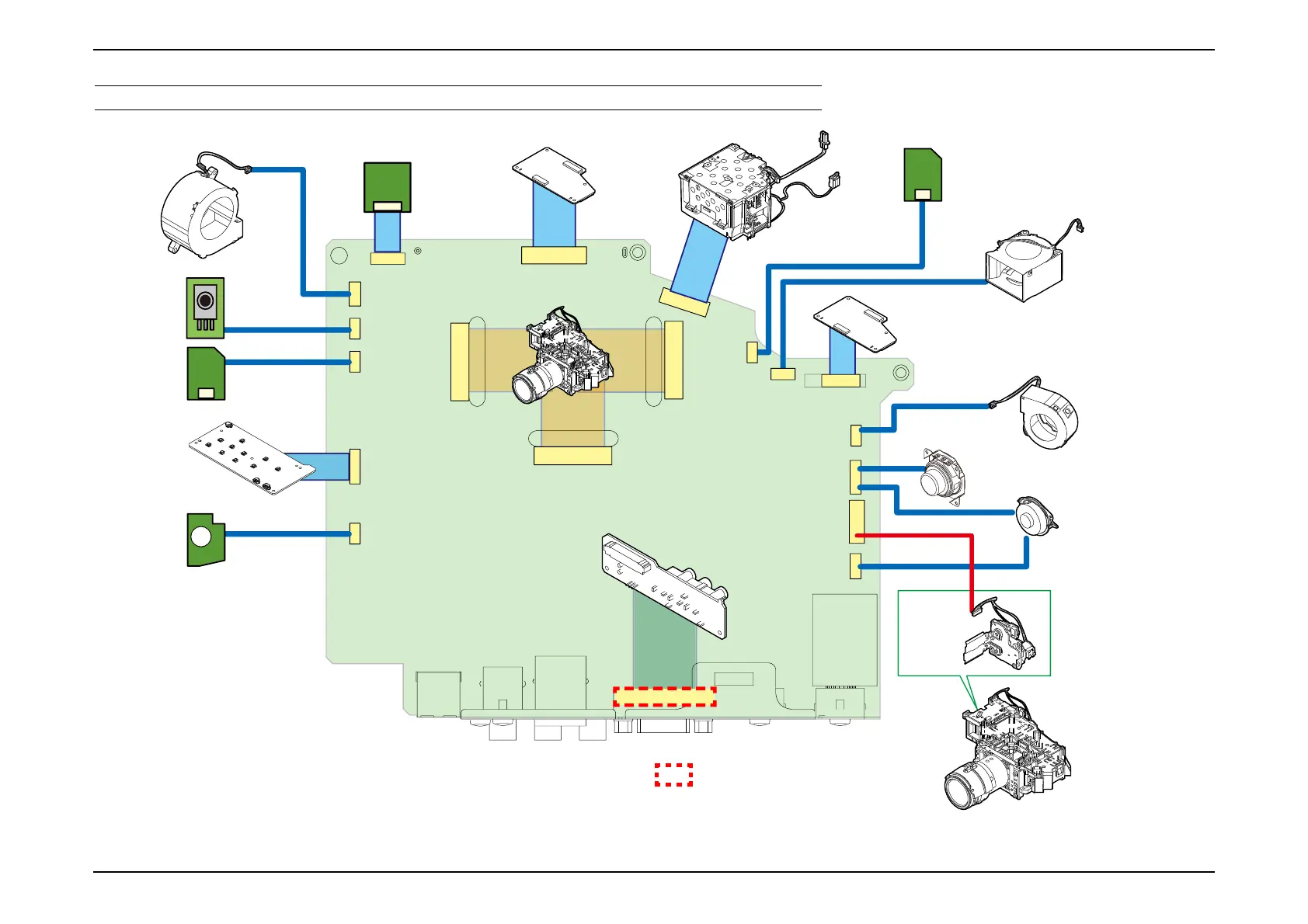

CONNECTION DIAGRAM BETWEEN BOARDS
MA
Board
Board-to-board
Air TH
RTC Board
SW Board
LMP TH
CN1600
CN1400
CN1405
CN1403
CN1602
CN501
CN3000
CN8800
CN701*
CN702*
CN8700 CN8900
CN2200
CN1603
CN500
CN1601
CN1604
IF Board
Speaker 5W*
EX Fan
WFD Board
PS Ballast Assy
WFD Board
P4Combo
Optical Engine
CN700*
Speaker 16W*
Lamp Fan
Auto Iris
Front IR
LV Fan
Indicates connector on the back side
* Speakers and connectors dif-
fer according to model.
