Connecting with video cables
a
Prepare the following items in advance.
x USB cable (supplied)
x Video cables (available in local stores x3)
x Splitter that supports the video signal (available in local stores)
x Audio cable (available in local stores) *When outputting audio
A

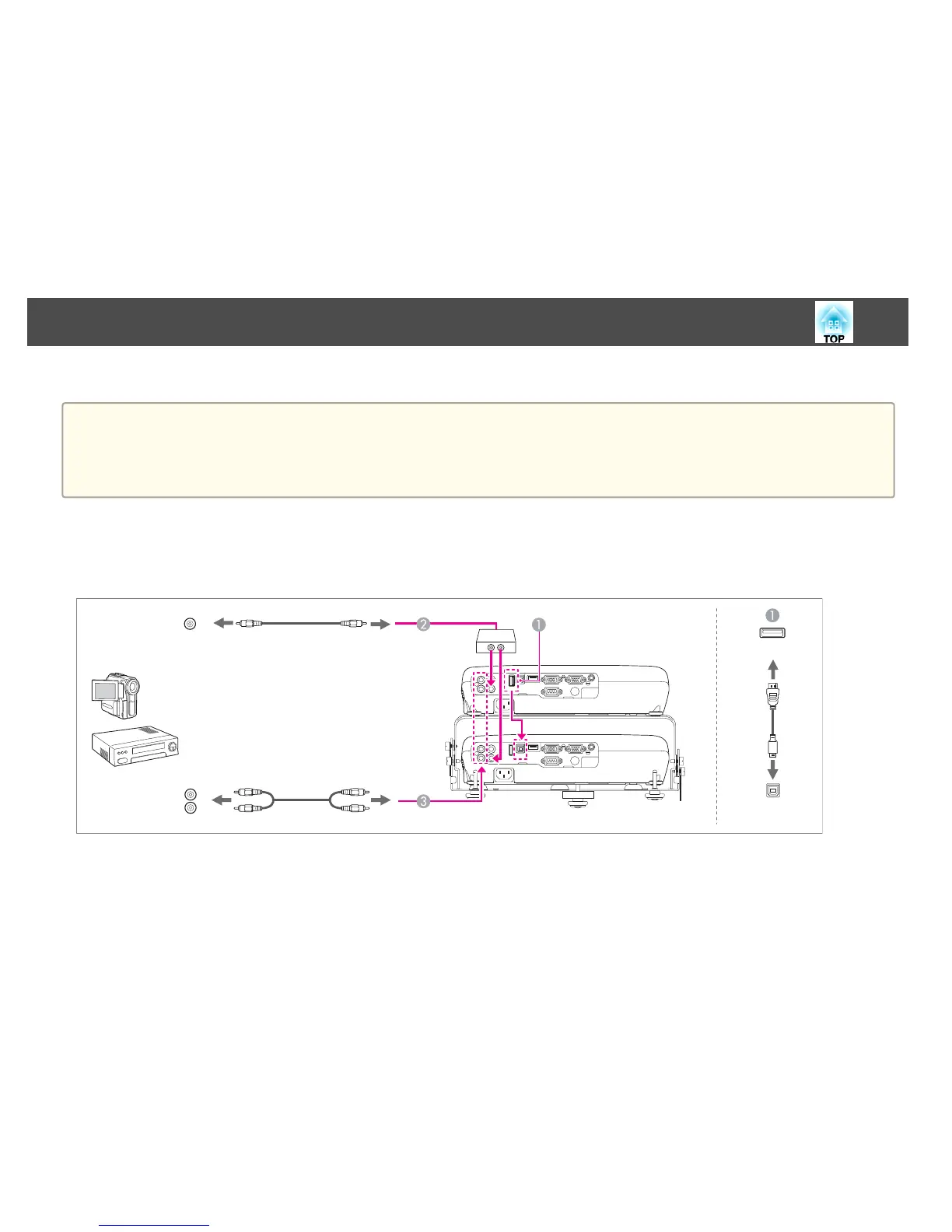

Connect the commander's USB(TypeA) port to the receiver's USB(TypeB) port with a USB cable.
B
Connect the splitter to the video equipment's video output port with a video cable.
Connect the Video ports for the commander and the receiver to the splitter with video cables.
C
Connect the projector's Audio-L/R port (commander or receiver) to the video equipment's audio out port with an audio cable. Audio is output from the connected projector.
USB TypeB
USB TypeA
Video
AudioOut
